22hp Diesel Portable Well Drilling Rig 100m 300 1000 Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2011
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Made in China 100 Meter Portable Shallow Water Well Drilling Rig for SaleNegotiableMOQ: 1 -
150m Well Service Diesel Mini Rotary Water Well Drilling Machine / Mine Drilling Rigs for Water WellsNegotiableMOQ: 1
-
300 Meter 500m 800 Meters Hydraulic Well Drilling Rig / Hydraulic Diesel Water Well Rock Drilling Rig MachineNegotiableMOQ: 1
-
Made in China Qingdao Portable Hard Rock Fy-300 Pneumatic Dth Bore Water Well Drilling Rig With 10'' DiaNegotiableMOQ: 1
-
FY350 XY-8 Rotary Heavy Rock Water Well Machine Drilling Rig for Water Well With Truck 2000mNegotiableMOQ: 1
Product Overview
Borehole Cheap Water Well Drilling Equipment Core Drilling Machine Price

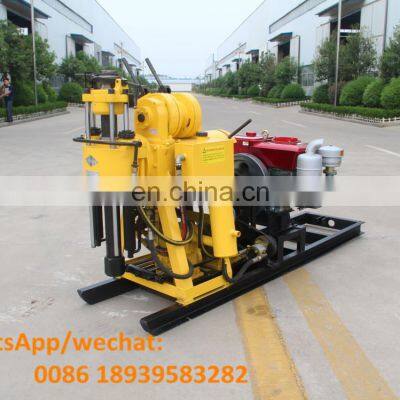

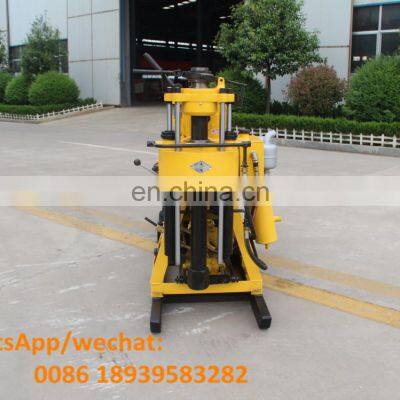

OR 130 / 180 / 200 Y / YY Core Drilling Rig is mainly adapted to suit for engineering exploration, water well and foundation hole drilling, it can also can be used in mineral exploration with diamond bit or tungsten-carbide tipped bit. which is very suitable for Africa soil conditions with softy sandy and less rocky areas, OUR DRILLING RIGS exported OR core water well drilling rig more than 3500 sets per year.
Water well drilling rig advantages:
1. OR series machine can drill hard rocks
2. Easy to operate
3. Competitive price
4. can drill depth 130m around
Water Well Drilling Rig Applications:
OR series hydraulic core drilling rig is mainly used for geological general investigation and exploration,kinds of hole in
concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct
grouting,civil wells and earth temperature central air conditioner,etc.
concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct
grouting,civil wells and earth temperature central air conditioner,etc.
Water Well Drilling Rig Main Features:
* Engine:Feed by hydraulic cylinder,the drilling efficiency is higher and it can save labor.
* Drill rod:53x59 drilling rod adopted,high rigidity and strong delivery torque.
* Spindle:Vertical spindle are fixed by four groups of bearing to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.
* Mud pump:Equip mud pump with flow 160L/min,save cost and also make the structure compact.
* Concentrated handle, small footprint,light weight, strong decomposition, easy to move.
* Drill rod:53x59 drilling rod adopted,high rigidity and strong delivery torque.
* Spindle:Vertical spindle are fixed by four groups of bearing to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.
* Mud pump:Equip mud pump with flow 160L/min,save cost and also make the structure compact.
* Concentrated handle, small footprint,light weight, strong decomposition, easy to move.
PRODUCT SPECIFICATIONS
Model |
HY-130Y/130YY |
HY-180Y/180YY |
HY-200Y/200YY |
Drilling depth(m) |
130 |
180 |
200 |
Open hole dia.(mm) |
220 |
220 |
325 |
End hole dia.(mm) |
75 |
75 |
75 |
Drill rod dia.(mm) |
42-60 |
42-60 |
42-60 |
drill angle(°) |
90-75 |
90-75 |
90-75 |
Matching power(kW) |
13.2 |
13.2 |
15 |
Weight without power(kg) |
600/740 |
620/750 |
880/970 |
Dimension Length*width*height(mm) |
2.4*0.7*1.4 |
2.4*0.6*1.4 |
2.7*0.9*1.6 |
Vertical shaft speed(r/min) |
142/285/570 |
130/300/480/730/830/1045 |
64/128/287/557 |
Vertical axis stroke(mm) |
450 |
450 |
450 |
Max Single rope lifting force(kg) |
2000 |
2100 |
2500 |
Single rope lifting speed(m/min) |
0.41-1.64 |
0.35-2.23 |
0.12-0.95 |
Wire rope diameter(mm) |
φ9.3 |
φ9.3 |
φ12.5 |
Wire rope capacity(m) |
27 |
35 |
35 |
Rated load(ton) |
18 |
18 |
18 |
effective height(m) |
6.5 |
6.5 |
6.5 |
Dispalcement(L/min) |
95 |
95 |
145 |
ure(Mpa) |
1.2 |
1.2 |
2 |
Number of reciprocations(Times/min) |
93 |
93 |
93 |
Diameter of suction pipe(mm) |
51 |
51 |
51 |
Outlet diameter(mm) |
32 |
32 |
38 |
Difference between 130Y and 130YY:
PRODUCT CONFIGURATION
Famous brand CHANGCHAI high power engine
High quality 42 / 50 / 60mm diameter drilling rod
6.3m drilling tower
Connector
Alloy bits: size according to customer's requirement
3-wing alloy bits: size according to customer's requirement
Diamond Bits: size according to customer's requirement
PDC bits: size according to customer's requirement
Compactor
Hammer bits
HY-130Y:
HY-130Y hydraulic core drilling rig without shifting slipway on the basis of common drilling rig.
hydraulic rock drill
hydraulic rock drill
HY-130YY:
OR-130YY hydraulic core drilling rig adds shifting slipway on the basis of common drilling rig, which can realize rapid
replacement of drilling tools and improve work efficiency and reduce labor usage.
hydraulic rock drill
replacement of drilling tools and improve work efficiency and reduce labor usage.
hydraulic rock drill
Wheels: you can choose according to your requirement.
2 wheels
3 wheels
4 wheels
