Performance characteristics:
1.Light weight, energy saving.2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast.
7. Assure easily operation and long life service life, free maintainance.

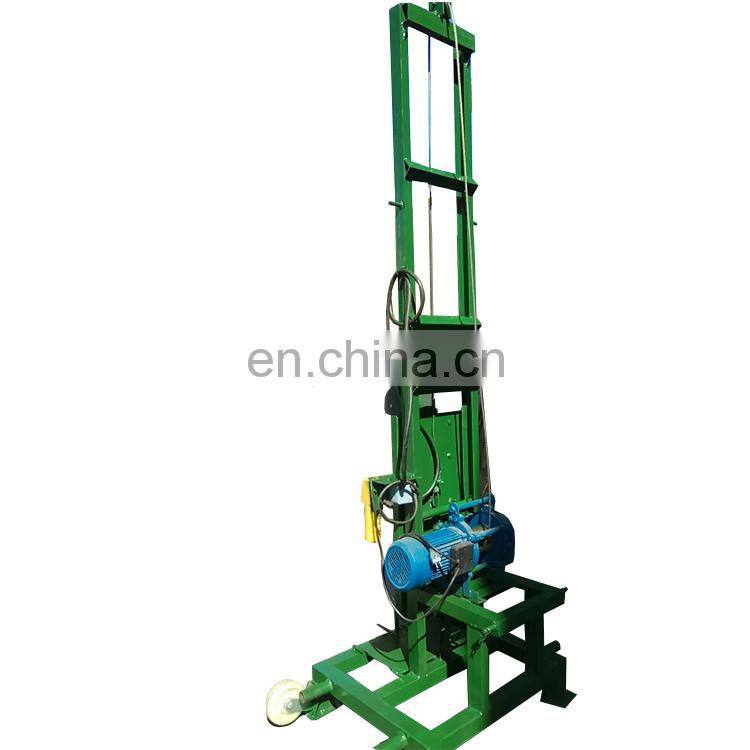

Technical Parameters of OR-180 Folded Water Well Drilling Rig |
||
Model of drilling machine |
OR-180 |
|
Drilling machine overall dimension(mm) |
700*700*2500 |
|
Weight of Drilling machine (kg) |
120 |
|
Drill rod diameter (mm) |
Ø42 |
|
Drill rod length(mm) |
1500 |
|
Rod change method |
Full automatic screw thread |
|
Drilling depth(m) |
80 |
|
Voltage (V) |
220V |
|
Motor power (KW) |
DC60V, 1.5KW~2KW |
|
Drilling method |
Percussive and rotating type |
|
Pump power (KW) |
2.2KW |
|
Drilling hole diameter(mm) |
Within Ø 200mm |
|
Hosting height(mm) |
2000 |
|
Hosting capacity (kg) |
500 |
|

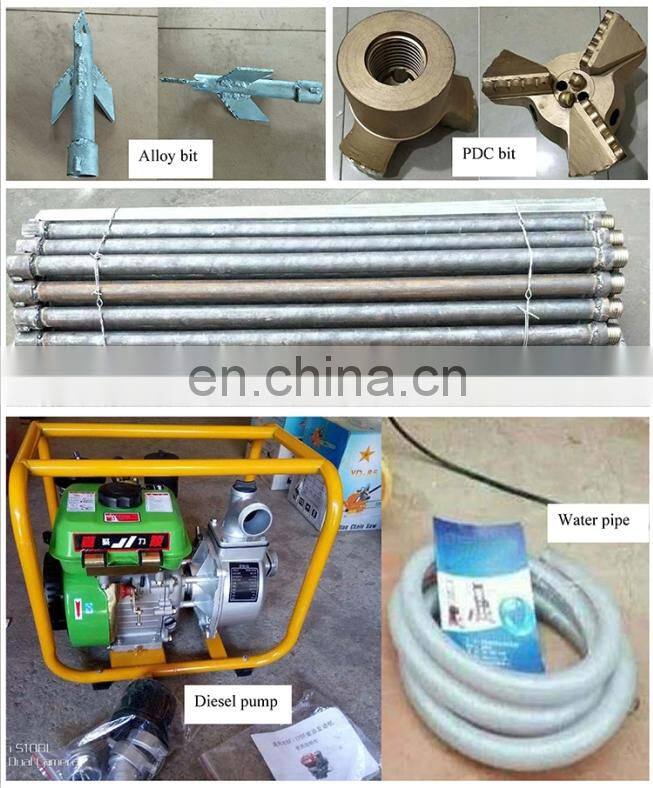

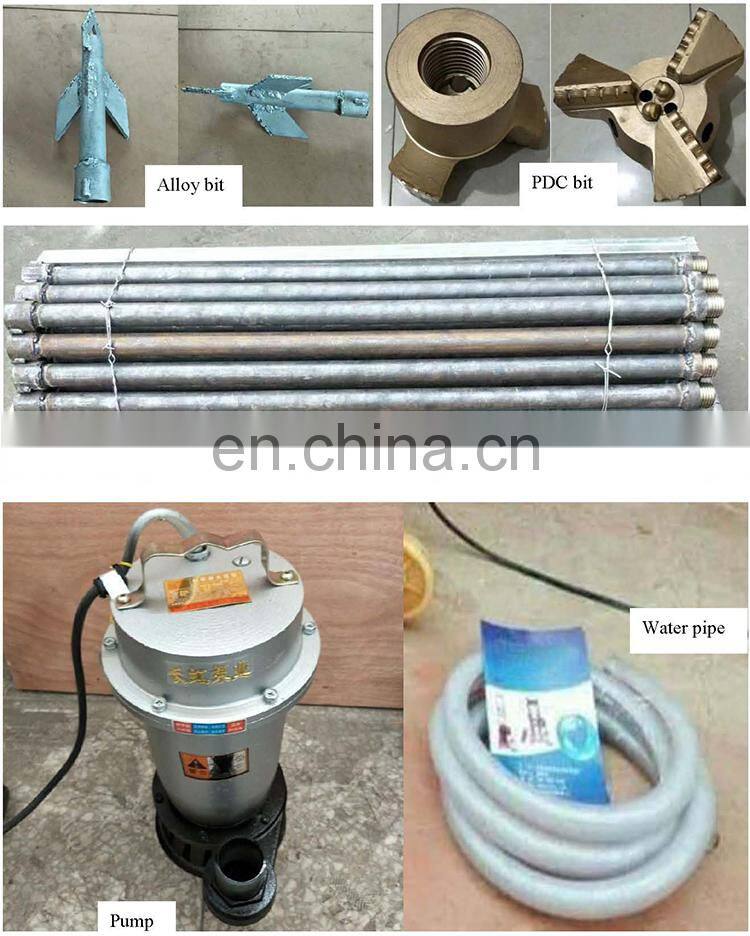

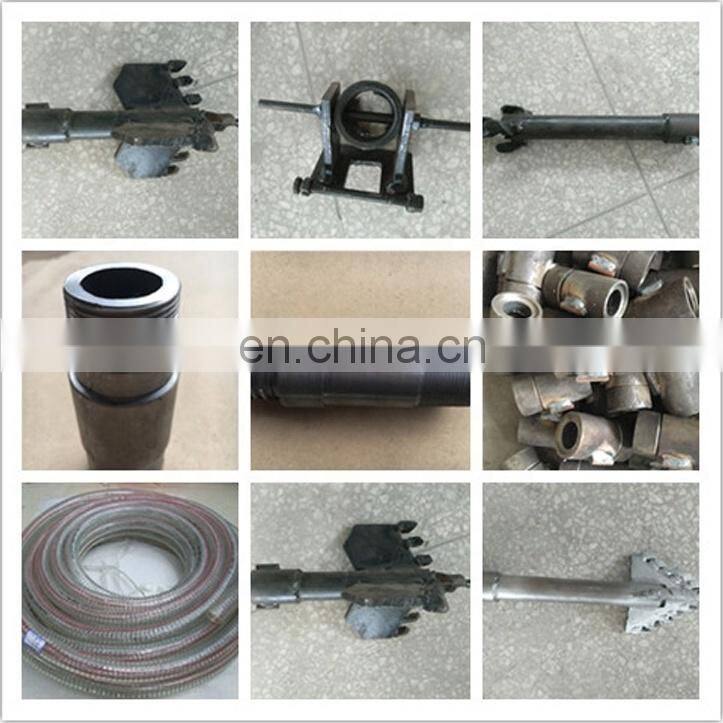

Completed unit of drilling machine include main engine, tools, 40 meter drill rod, 2 units alloy drilling bit, 1 unit high pressure water pump, 4 meter high pressure water pipe, 1 unit 60V transformer and English manual. |
||
Technical Parameters of OR-240 Folded Water Well Drilling Rig
|
||
Models of drilling machine |
OR-240 |
|
Drilling machine overall dimension |
700*700*2500mm |
|
Weight of drilling machine |
400kg |
|
Drill rod diameter |
51mm |
|
Drilling rod length |
1500mm |
|
Rod change method |
Full automatic screw thread |
|
Drilling depth |
100m |
|
Voltage |
220v |
|
Drilling hole diameter |
Within 240mm |
|
Motor power |
3.5kw |
|
Drilling method |
Percussive and rotating type |
|
Pump power |
2.2kw |
|
Hoisting height |
2000m |
|
Hoisting capacity |
500kg |
|
Completed unit of drilling machine include main engine, generator, tools, 40 meter drill rod, 2 units alloy drilling bit, 1 unit high pressure water pump, 5 meter high pressure water pipe and English manual. Complete full set machine parts. |
||
Technical Parameters of OR-350 Folded Water Well Drilling Rig
|
||
Model of drilling machine |
HY-350 |
|
Drilling machine overall dimension(mm) |
800*800*2700 |
|
Weight of Drilling machine (kg) |
250 |
|
Drill rod diameter (mm) |
Ø51 |
|
Drill rod length(mm) |
1500 |
|
Rod change method |
Full automatic screw thread |
|
Drilling depth(m) |
100 |
|
Voltage (V) |
380V |
|
Motor power (KW) |
3KW |
|
Drilling method |
Percussive and rotating type |
|
Pump power (KW) |
2.2KW |
|
Drilling hole diameter(mm) |
Within Ø 350mm |
|
Hosting height(mm) |
2000 |
|
Hosting capacity (kg) |
1000 |
|
Completed unit of drilling machine include main engine, tools, 40 meter drill rod, 2 units alloy drilling bit, 1 unit high pressure water pump, 5 meter high pressure water pipe and English manual. |
||

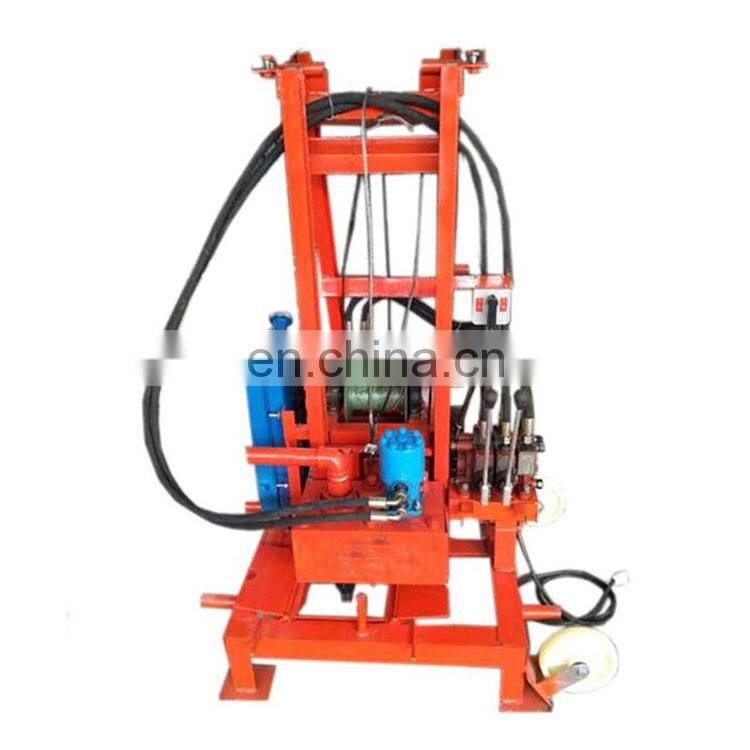

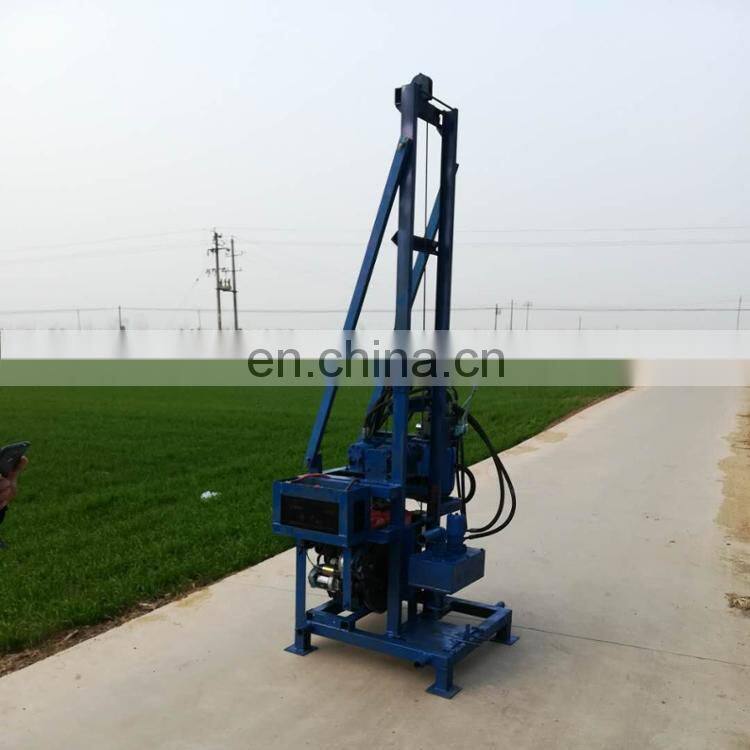

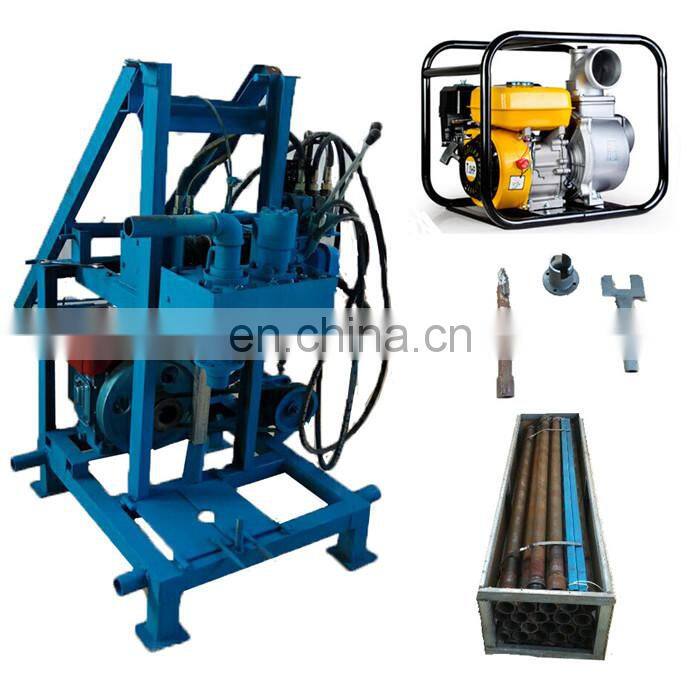

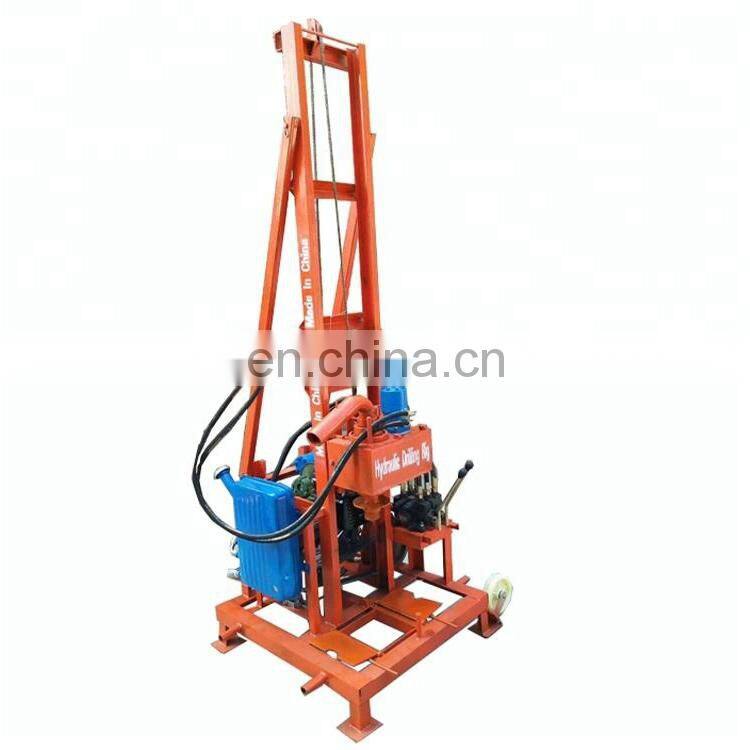

Diesel hydraulic OR-240 D water well drilling machine |
||
Dimension(mm) |
800*800*2700 |
|
Weight of machine (kg) |
200 |
|
Drill rod diameter (mm) |
Ø51 |
|
Drill rod length(mm) |
1500 |
|
Rod change method |
Full automatic screw thread |
|
Drilling depth(m) |
120-150 |
|
Energy |
Diesel |
|
Motor power (KW) |
8HP |
|
Drilling method |
Percussive and rotating type |
|
Pump power (KW) |
3.5HP |
|
Drilling hole diameter(mm) |
Within Ø 280mm |
|
Hosting height(mm) |
2000 |
|
Hosting capacity (kg) |
800 |
|
Completed unit of drilling machine include main engine, tools, 40 meter drill rod, 2 units alloy drilling bit, 1 unit high pressure diesel water pump, 5 meter high pressure water pipe and English manual. |
||
Gasline hydraulic OR-240G water well drilling machine
|
||
Dimension(mm) |
800*800*2700 |
|
Weight of machine (kg) |
250 |
|
Drill rod diameter (mm) |
Ø51 |
|
Drill rod length(mm) |
1500 |
|
Rod change method |
Full automatic screw thread |
|
Drilling depth(m) |
100 |
|
Energy |
Gasoline |
|
Motor power (KW) |
15HP 420CC |
|
Drilling method |
Percussive and rotating type |
|
Pump power (KW) |
7.5HP 212CC |
|
Drilling hole diameter(mm) |
Within Ø 220mm |
|
Hosting height(mm) |
2000 |
|
Hosting capacity (kg) |
800 |
|
Completed unit of drilling machine include main engine, tools, 40 meter drill rod, 2 units alloy drilling bit, 1 unit high pressure gasoline water pump, 5 meter high pressure water pipe and English manual. |
||

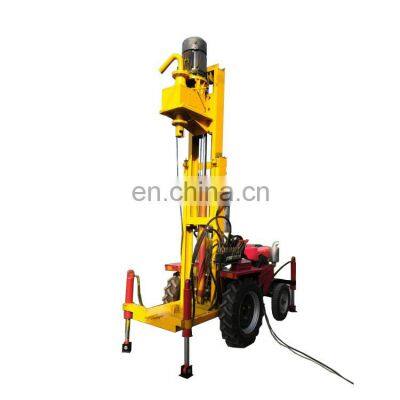

Tractor mounted big power drilling machine OR-500 |
||
Dimension(mm) |
1000*1500*2000 |
|
Weight of machine (kg) |
600 |
|
Drill rod diameter (mm) |
Ø65 |
|
Drill rod length(mm) |
2000 |
|
Rod change method |
Full automatic screw thread |
|
Drilling depth(m) |
120 |
|
Voltage (V) |
380 |
|
Motor power (KW) |
5.5/7.5 KW |
|
Drilling method |
Percussive and rotating type |
|
Pump power (KW) |
5kw |
|
Drilling hole diameter(mm) |
Within Ø 500 mm |
|
Hosting height(mm) |
3200 |
|
Hosting capacity (kg) |
1000 |
|
Completed unit of drilling machine include main engine, tools, 40 meter drill rod, 2 units alloy drilling bit, 1 unit water pump, 5 meter high pressure water pipe and English manual. |
||

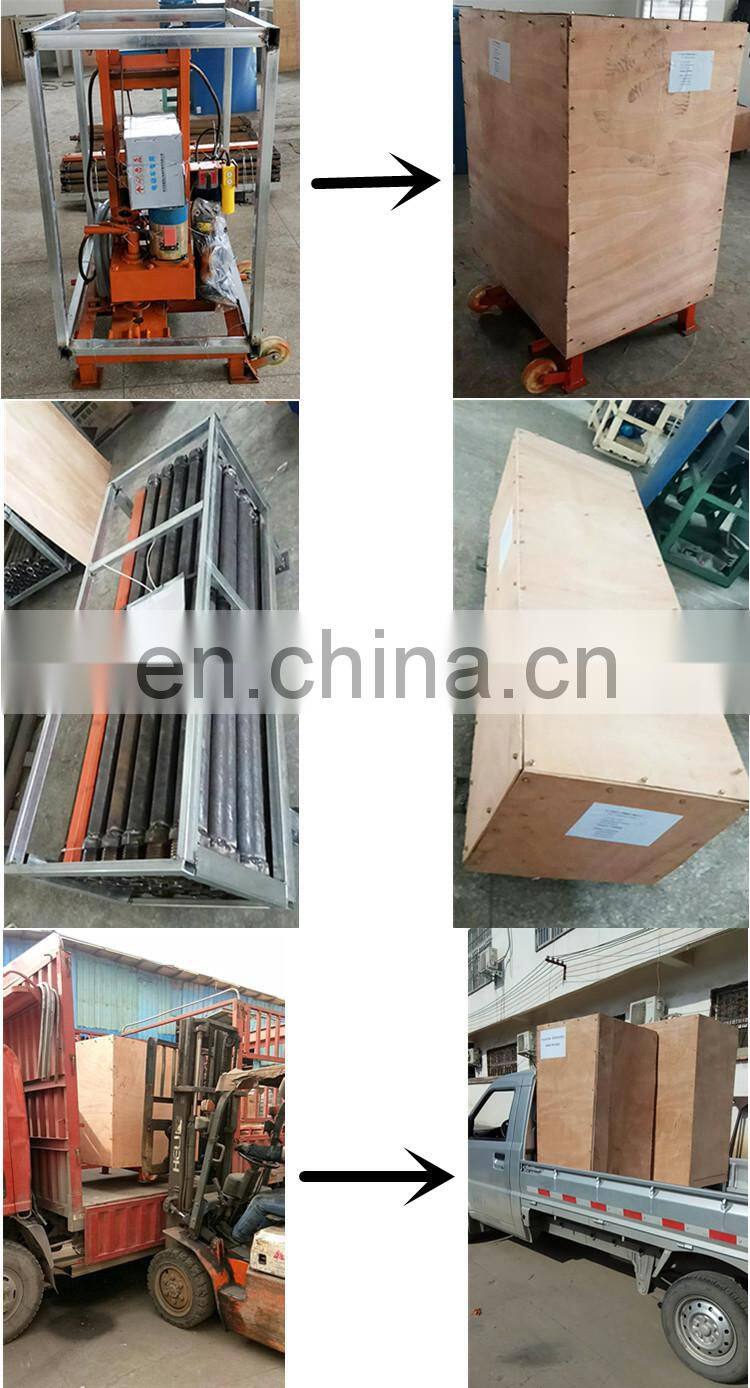

1.We can load container at:qingdao,shanghai ,ningbo,tianjin,guangzhou etc.
2.Orange provide shipping method:Courier service,Air transport,Sea Transport
3.Can accept oder:Full container cargo load,Less container load
4.Our service:EXW,FOB,CIF,CNF,Door to Door etc.
5.We always choose the most economical and reliable shipping company to make sure you receive the goods in time.
6.The tracking number will be provided to you once the consignment is shipped.
1.All the products have one year guarantee.
2.Providing professional installation instructions and video of troubleshoot.
3.We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.
4.When some problems can’t be solved by customers, our engineer can go to door to support.
Q1: What are the payment terms?
A: We usually accept payment by T/T, L/C, Western Union or Escrow.
Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.
Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are alibaba legitimate certification company (VIP), and we support payment terms like L/C, Escrow, to ensure your safety.
Q4: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
Q6 : Where will the orders be shipped from?
A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.
