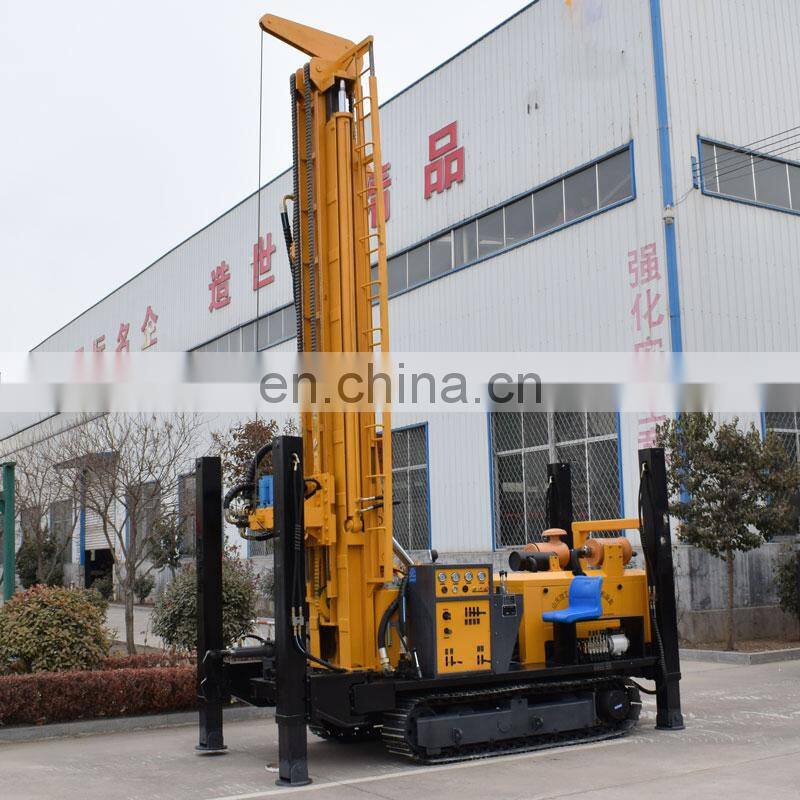

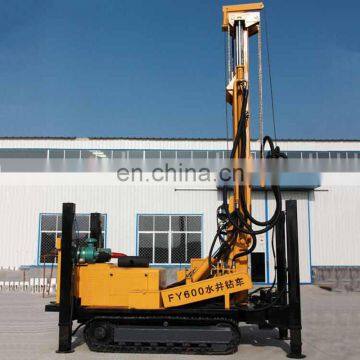

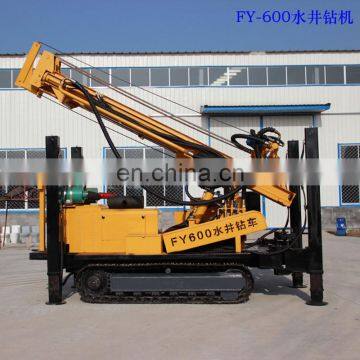

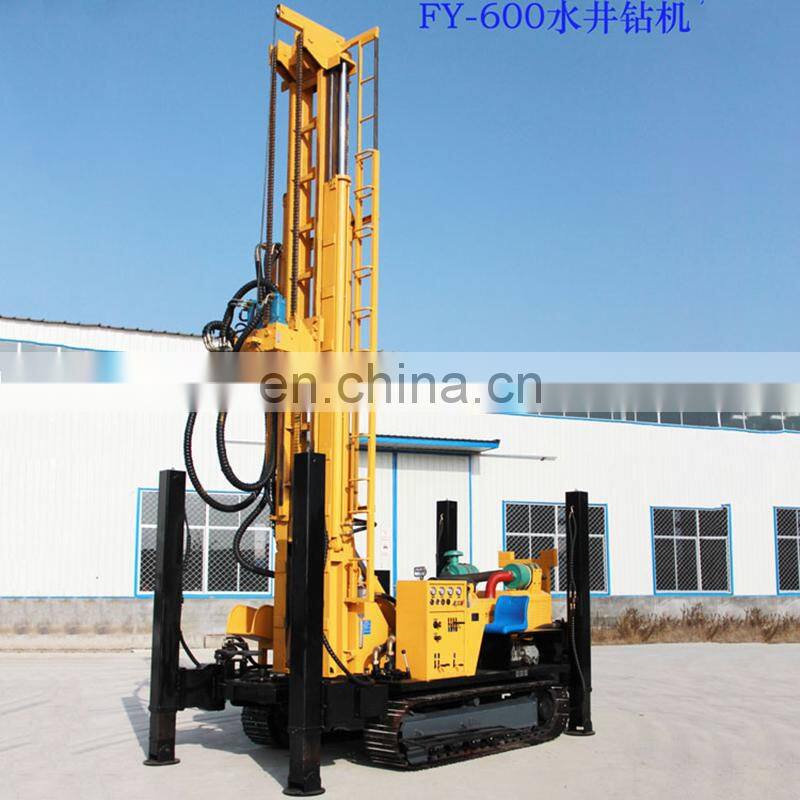

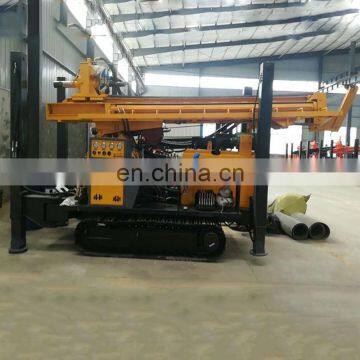

high quality 100m hydraulic water well drilling machine for sale
They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.
Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.
The advantage of drilling rig water are as below:
1.Drills up to 200-600m deep, 250-350mm diameter, crawler mounted.
2. Can work with Air compressor OR Mud pump.
3. Fully hudraulic system, work with air compressor.
3. Drill fast in soft earth and in hard rock earth..
4. Mainly used for water well drilling,earth sample taking, mining exploration, rock falling fence, etc,
The technical parameter of drilling rig water are as below:
|
Model |
FY600 |
|
|
Gross weight |
T |
12 |
|
Dimension |
mm |
5400*2100*2850 |
|
Aperture |
mm |
140-350 |
|
Drilling depth |
m |
600 |
|
Feed stroke |
mm |
6600 |
|
Travel speed |
km/h |
2.5 |
|
Grade ability |
max. |
30° |
|
Rising height from ground |
mm |
250 |
|
Wind pressure |
mpa |
1.7-3.5 |
|
Air consumption |
m³/min |
17-35 |
|
Engine power |
kw |
115 |
|
Rotation speed |
rpm |
45-110 |
|
Rotation torque |
n.m |
8500-10050 |
|
|
|
|
Shipping:
1.We can load container at:Qingdao,Shanghai, Ningbo,Tianjin, Guangzhou, etc.
2.Orange provide shipping method:Courier service,Air transport,Sea Transport
3.Can accept order:Full container cargo load,Less container load
4.Delivery term :EXW,FOB,CIF,CNF, Door to Door etc.
We always choose the most economical and reliable shipping company to make sure you receive the goods in time. The BL and tracking number will be provided to you once the consignment is shipped.
