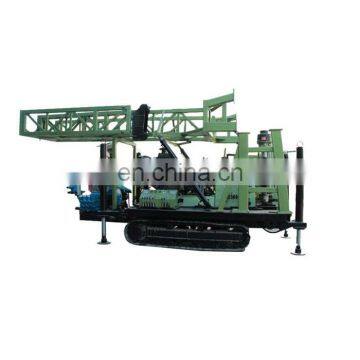

Constructional engineering harbour Engineering electric motor water well drilling rig

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Application

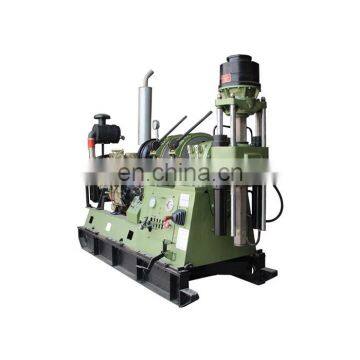

ORXY-44A model rig one kind of full multipurpose and complete functions, deep core drilling rig. It is suitable for alloy, diamond core drilling. Also suitable for exploration and geological survey, and construction project. Water-power engineering project, high way, railway and port etc drilling project.

Drilling Ability
Core Drilling
Drill rod		Standard(mm)	Depth(m)
Chinese manufactured rods	Internal upset type	42	1400
		50	1000
		60	830
	Wire-line coring	55.5	1250
		71	1000
		89	800
DCDMA rods		BQ	1300
		NQ	1000
		HQ	750
		PQ	420
	External upset type	60mm	800
		73mm	500
		89mm	300
Drilling angle		0°~360°
Power unit	Model	Power	REV
Electric	Y225S-4	37KW	1480 r/min
Diesel	CA4110	81KW	2800 r/min
Gyrator
Hydraulic twin-cylinder feeding rotary type
Spindle inner diameter		φ93
Spindle rotating speed
Forward(r/min)	60/90/166/272/379/481/183/296/514/835/1164/1476
Reverse(r/min)	63/198
Max. Spindle torque	8000N·m
Spindle travel	600mm
Max. Spindle hoisting capacity		125KN
Max. Pressing capacity	90KN
Hoist
Planetary gear transmission, manually handle brake
Steel wire diameter		φ18.5mm
Steel wire rolling capacity		95m(7 layers)
Maximum single wire elevating capacity		45KN
Steel wire elevating capacity
Cable rolling speed (m/s) and Third layer		0.7-2.68m/s 12 levels
Clutch
Type: automobile use friction monolithic clutch
Hydraulic system
System pressure
Rated pressure		20Mpa
Maximum pressure		25Mpa
Displacement		20ml/r
Frame
Type: slide drill (with slide base)
Drill backward travel		460mm
Open hole spare distance		260m
Dimension(L×W×H)		305011001920mm
Drill weight(without power unit)		2300kg

Main Features

Adapt auto vehicle transmission and clutch, good speed gear, easy operation. Vertical diameter 93mm. Long feed distance, high drilling efficiency. Reduce drilling accident. Structure light weight, good disassembled the max weight 300kgs. Move convenient. Rig high efficiency and lifting force strength. Equipped with water brake, hand oil pump. Drilling smooth and safety, avoid drilling accident. Control hydraulic system of feed pr3essure and speed. Adapt different drilling condition requirement, equipped down hole pressure indicator, easy get down hole drilling condition. Rig small dimension and light weight. Easy disassembly, easy operation and maintaining.

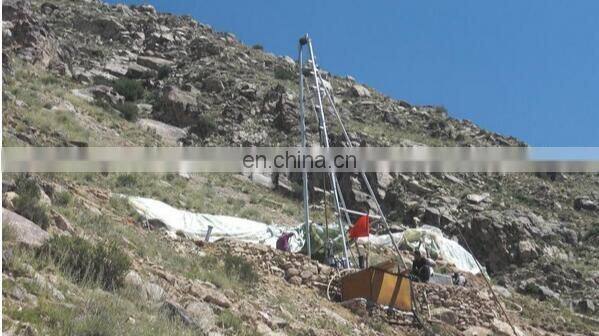

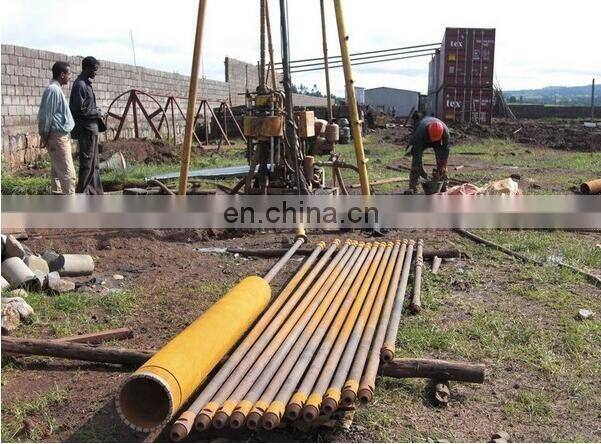

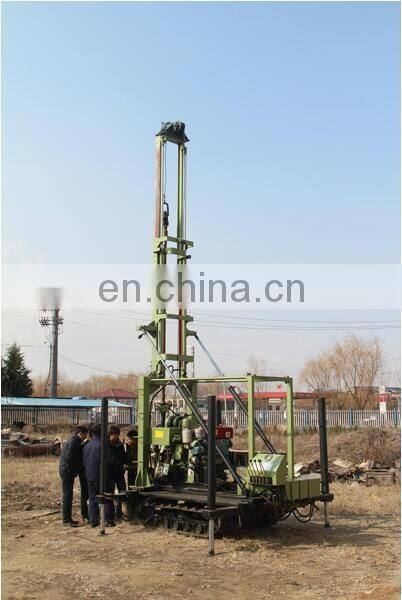

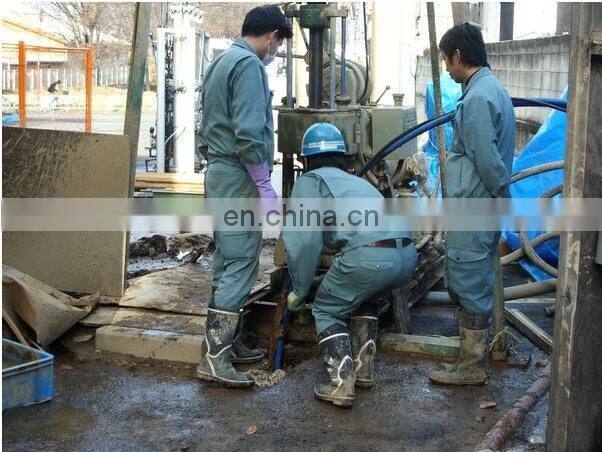

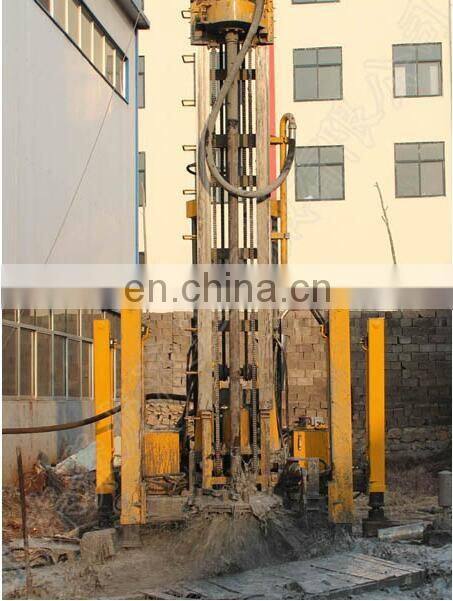

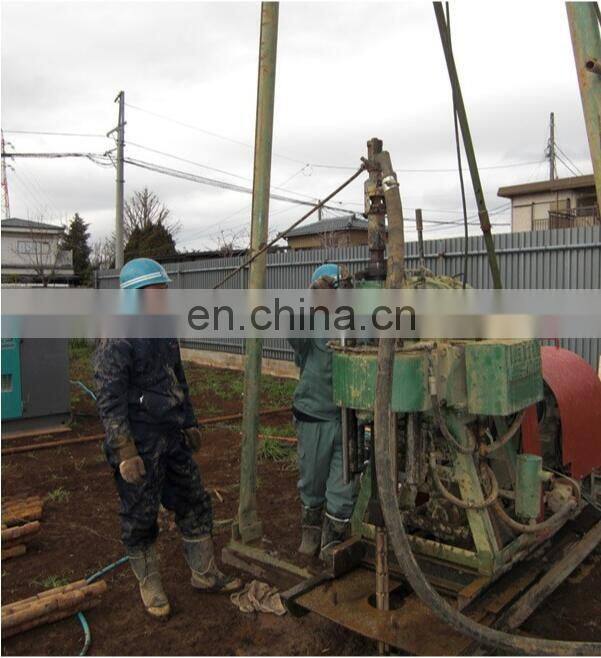

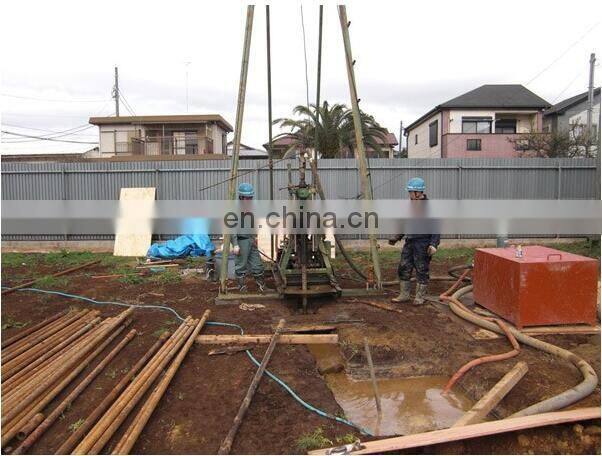

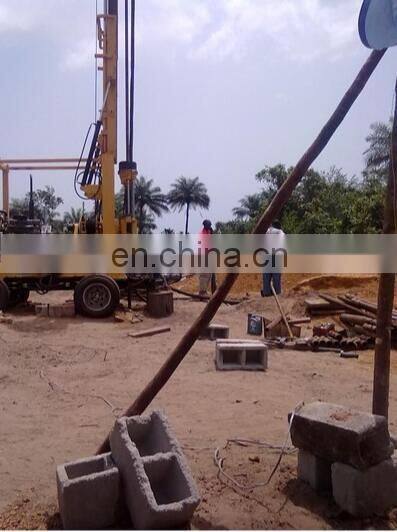

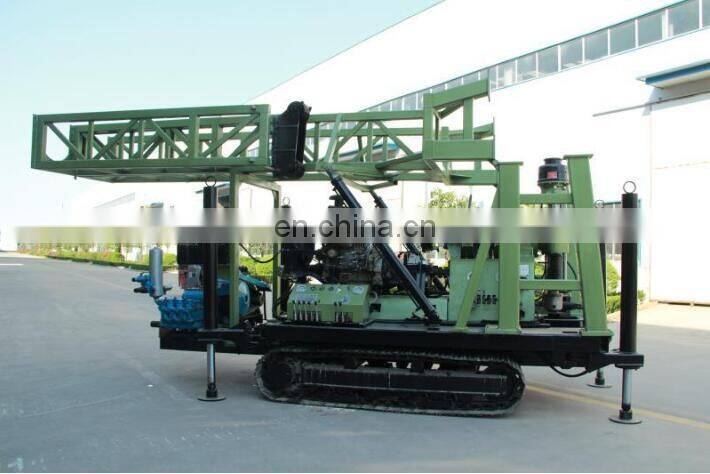

Project Show

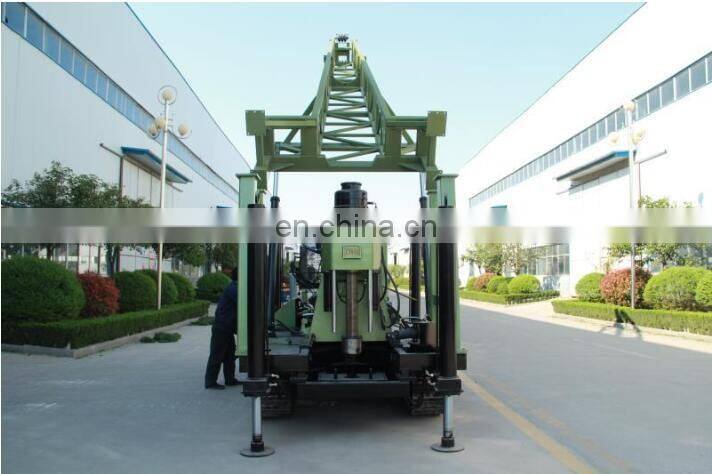

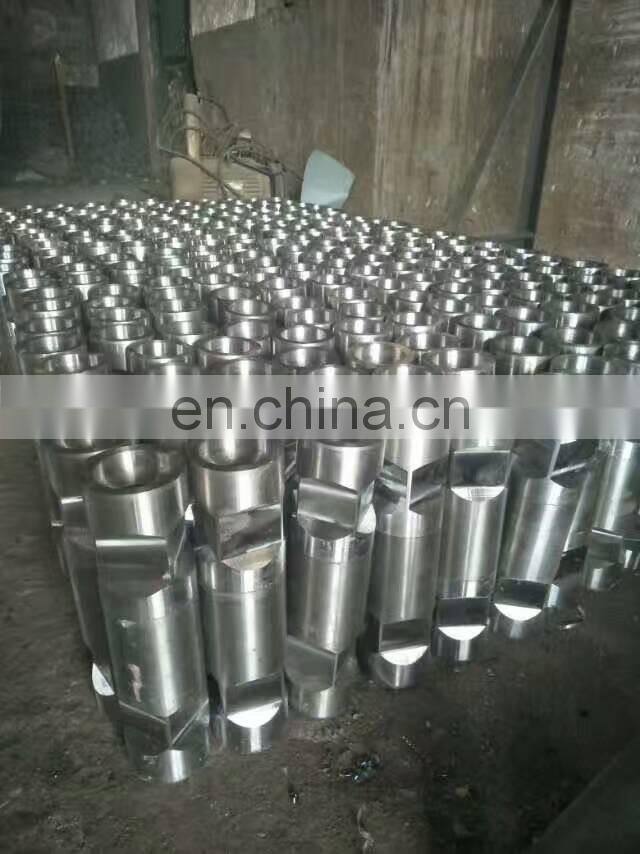

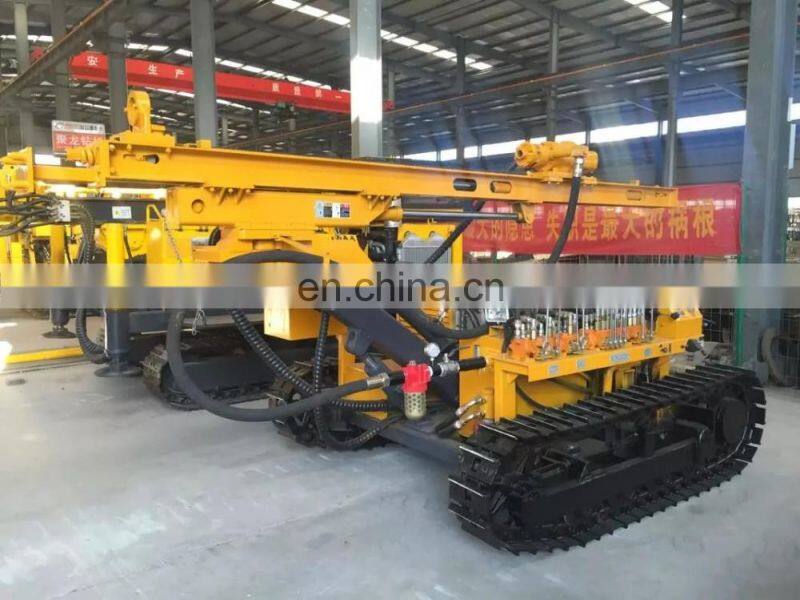

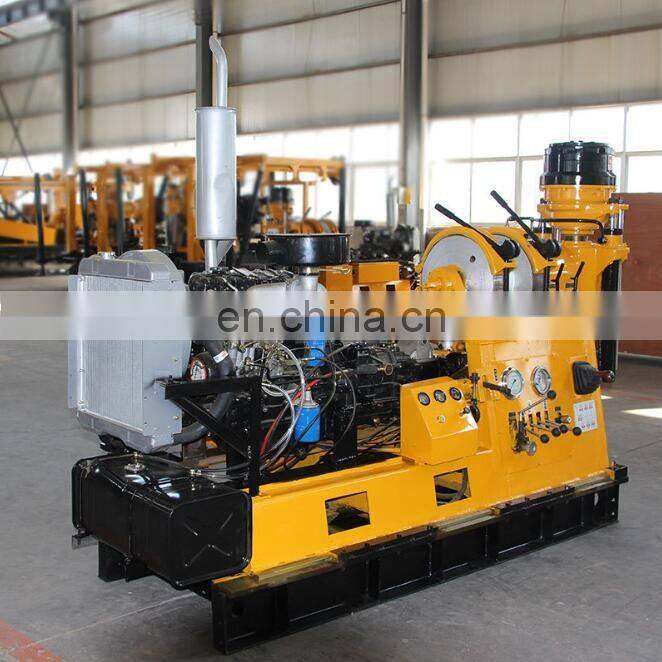

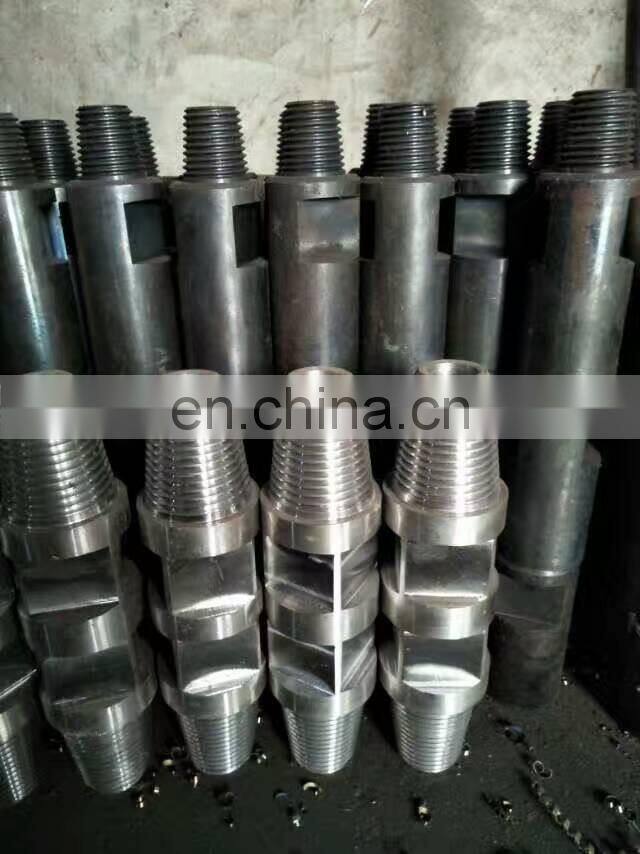

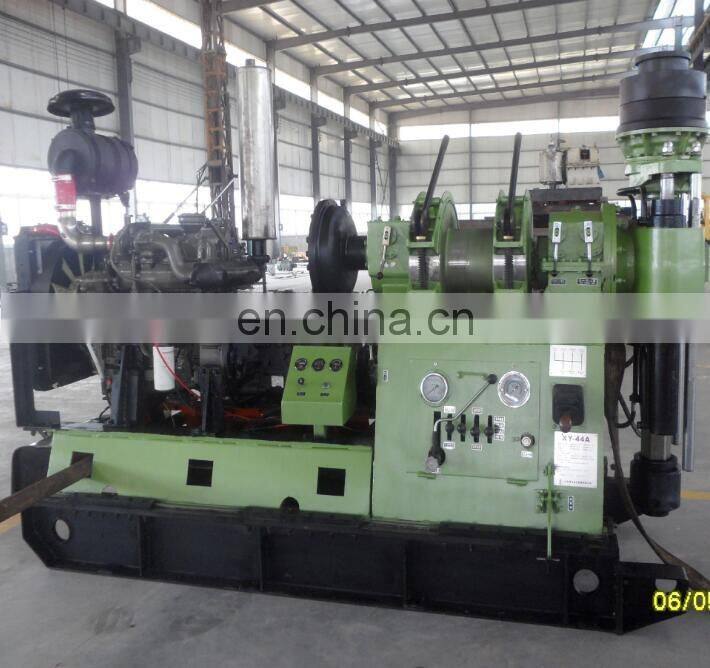

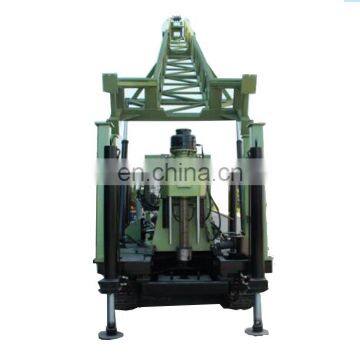

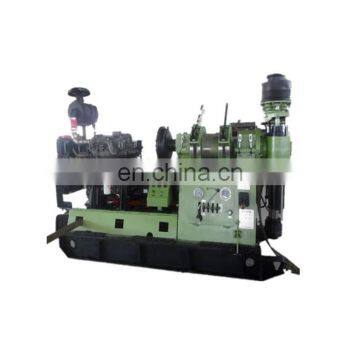

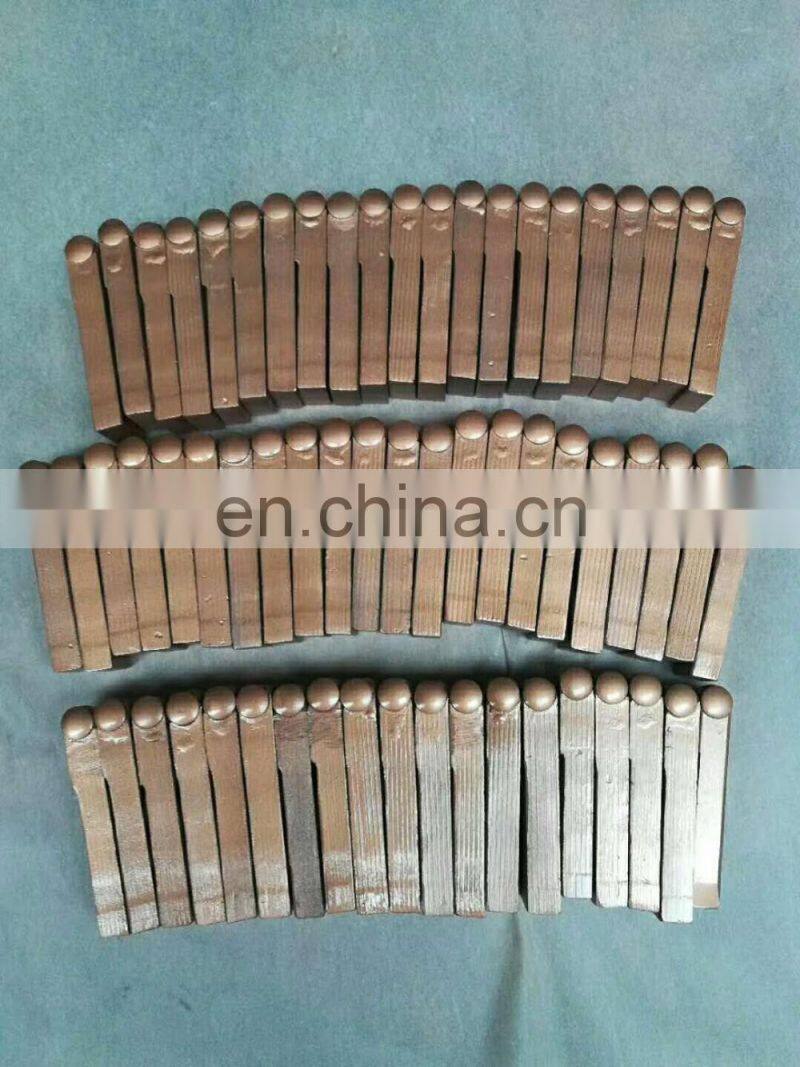

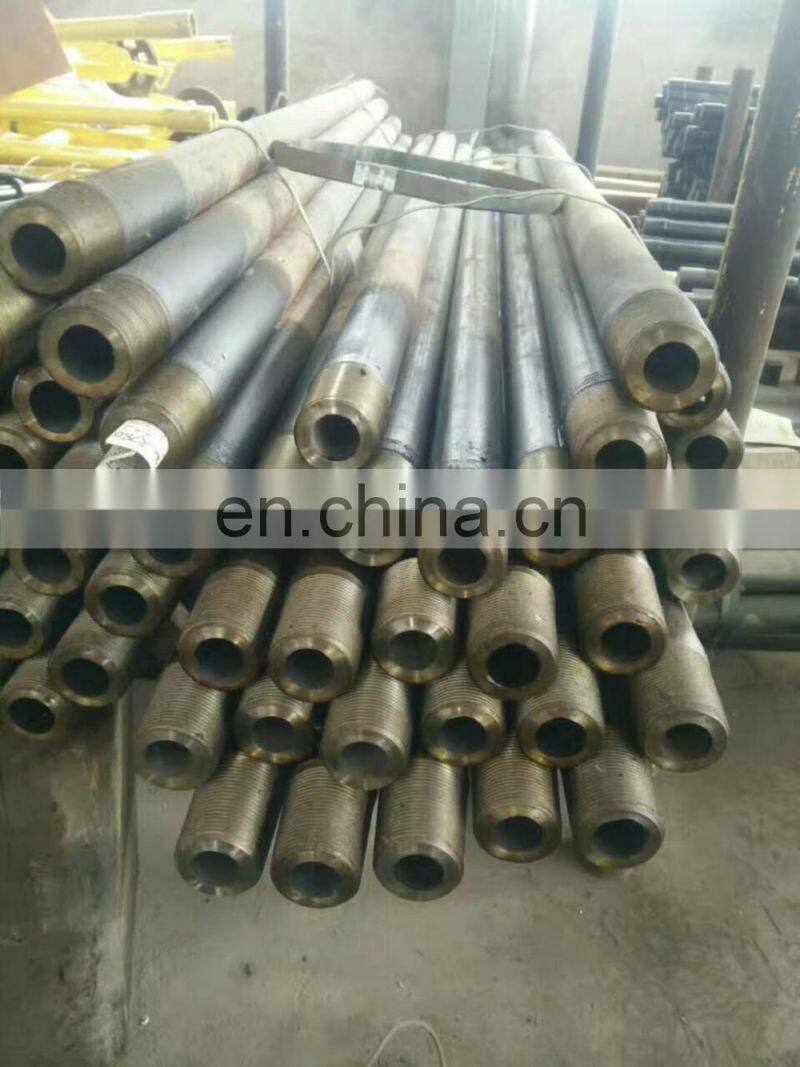

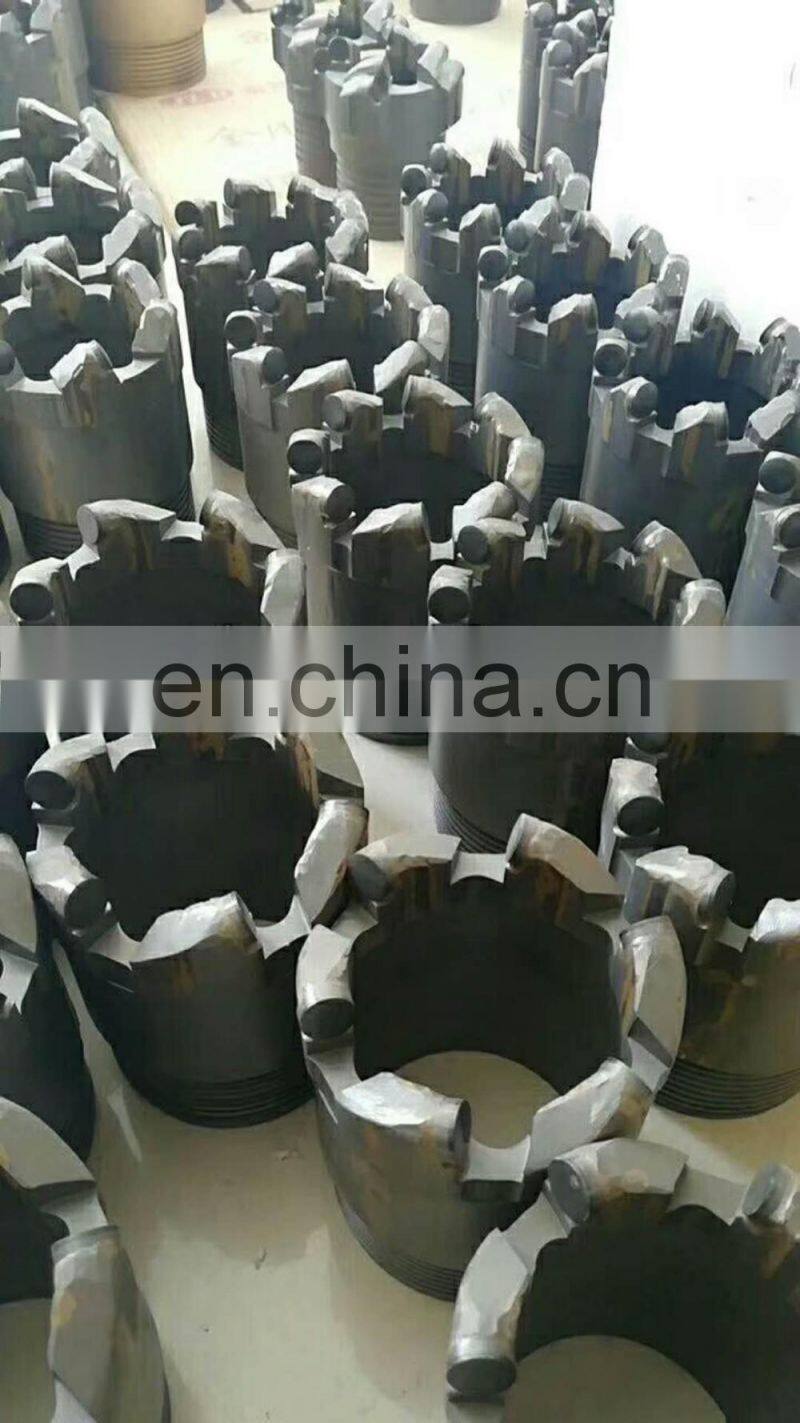

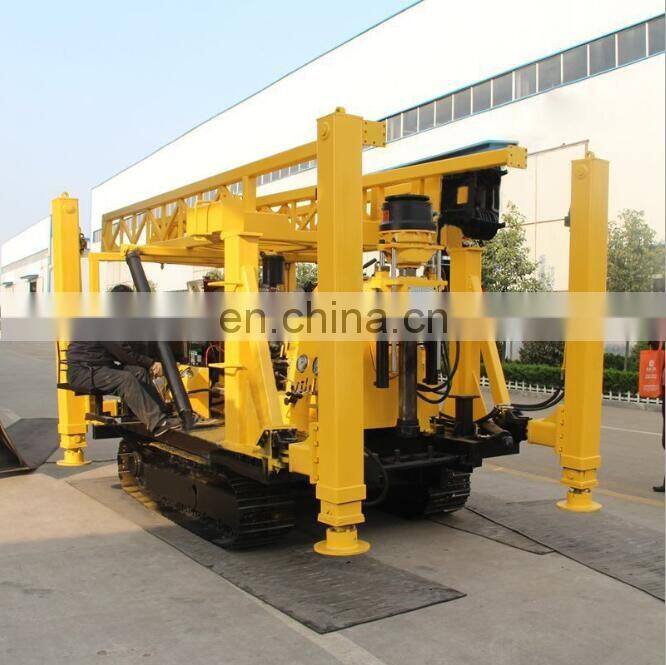

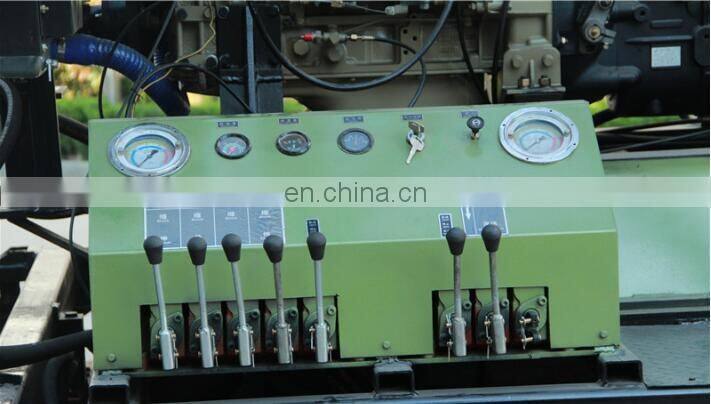

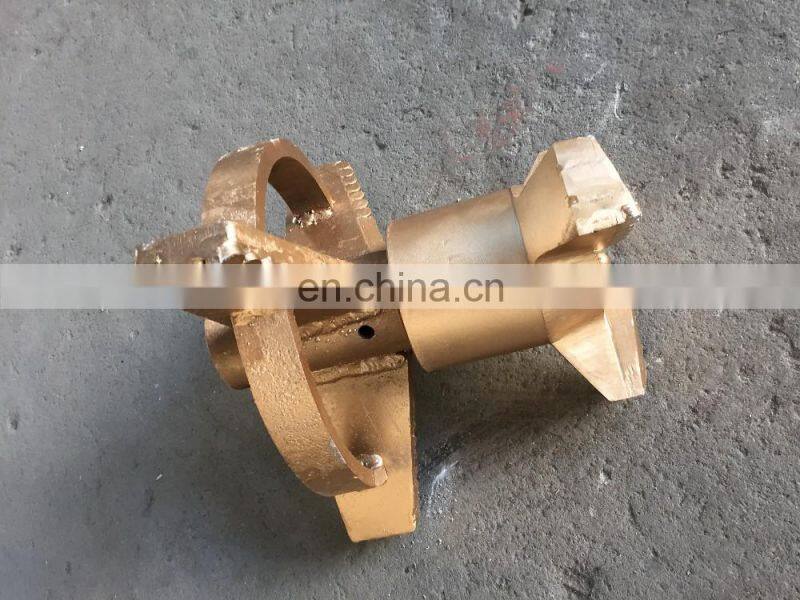

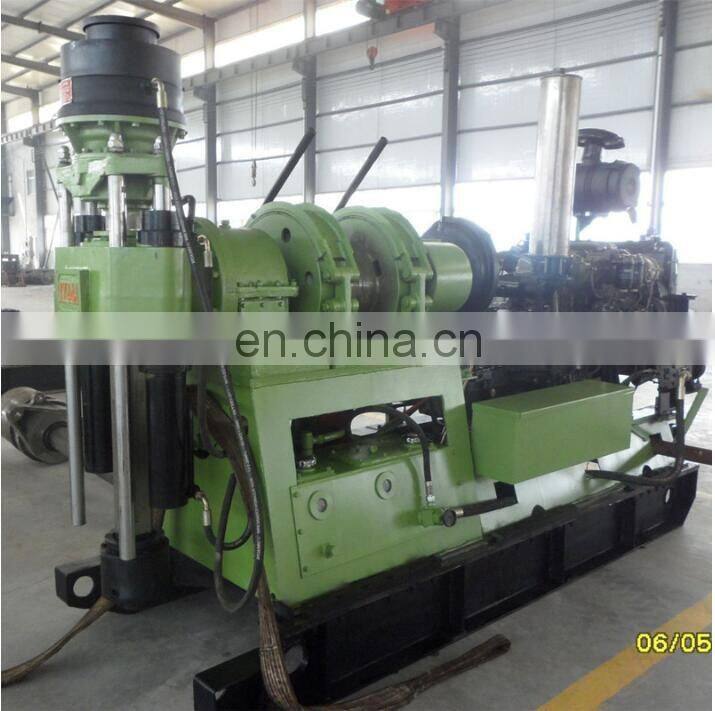

Detailed Images

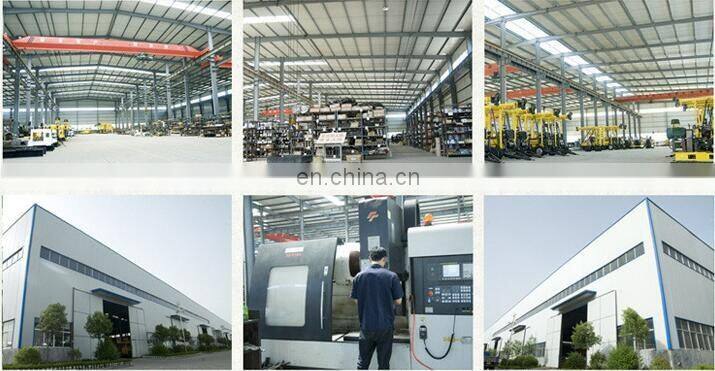

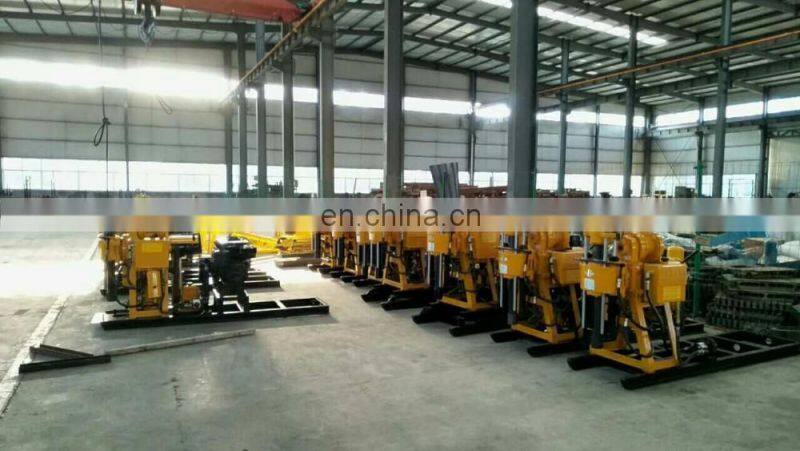

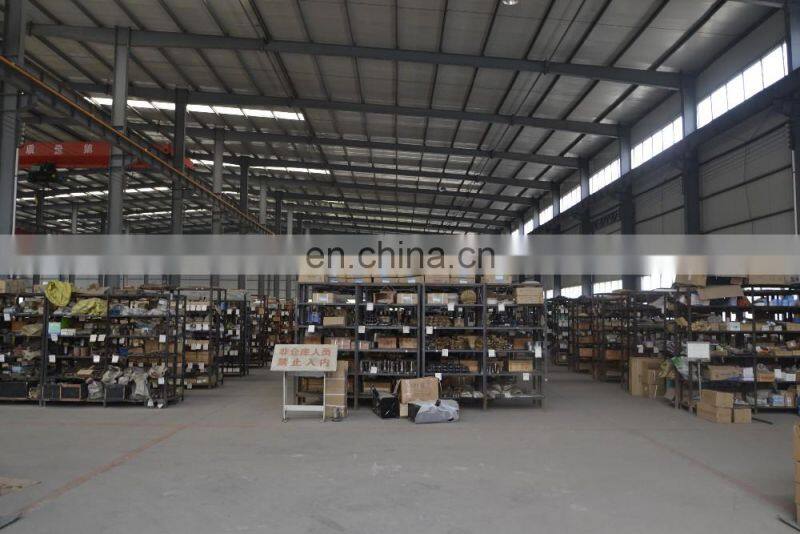

Work ROOM

Our products are also exported to over 40 countries and regions like South America Eastern Europe, Southeast Asia and Africa, etc. Excellent quality and good service win us trust and reward from customers from domestic and overseas.

Now we have 22 national patents and passed the authentication of IS9001 quality control system smoothly. With strong technical force, advanced equipment, skilled workers and strict inspection system.

Water well drilling rig

Geological core drilling rig

Hydraulic water well drilling rig
