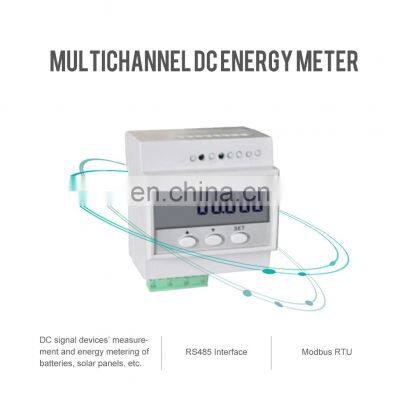

Ethernet DC Electric Power Meter DC Digital Amp Volt Meter photo-2

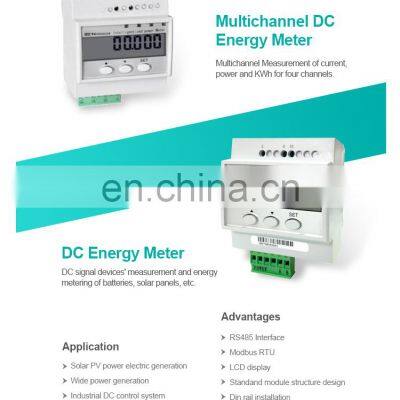

Ethernet DC Electric Power Meter DC Digital Amp Volt Meter photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2006
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Ethernet DC Electric Power Meter DC Digital Amp Volt Meter



It could be used for measuring and monitoring the power distribution system. This series combines the measurement, the analysis and the operation together. People can check the figure of current or voltage by using the keys on the meter, which makes the information become clearer, and the operation become easier.

• Measuring real-time DC voltage, current, power, import energy, export energy

• Cumulative energy of each month in the last 12 months independent

• Load record storage space to ensure that the record of import power, the time of 60 minutes can record no less than 40 days of data capacity

• 1* RS485, Modbus RTU communication protocol
• 1* programmable energy pulse output

• LCD display





Technical Specifications HYY-DC Series
Accuracy Class 1
Reference Voltage 48V, 100V, 350V, 500V, 700V, 750V
Reference Current 50A, 100A, 200A, 300A, 500A, Max 7999.99A (Optional)
Working Temperature -25℃ ~60℃
Storage Temperature -40℃ ~70℃
Relative Humidity <75% (place without corrosive gas)
Voltage Range 0.6Un~1.1Un (Umax < 800V)
Auxiliary Power Supply DC20~60/AC85~265V or DC85~330V (Optional)
Power Consumption 1W
Starting Current 0.004Ib
Communication Baud Rate:1200/2400/4800/9600bps (Optional) RS485
Installation Din Rail Mounted
Dimensions 72(L)x76 (W)x63(H)MM
