Energy Meter LCD Display Panel High Quality Digital Power Meter
Features:
Series of DZ81-MS Three-phase Power Meters are used for measuring and monitoring the power distribution system. This series combines the measurement, the analysis and the operation together, makes the information become clearer, and the operation become easier
| Accuracy Class | Voltage: 0.2; Current: 0.2; Frequency: 0.05 Hz; Power Factor: 0.5 | |
| Active Power: 0.5; Reactive Power: 0.5; Apparent Power: 0.5 | ||
| Active Energy: 0.5S/1; Reactive Energy: 2 | ||
| Input | Rated Value | Voltage: 100V/400V; Current: 1A/5A |
| Overload | Voltage: Sustained Overload: 1.2 times of the rated value Momentary Overload: 2 times of the rated value Current: Sustained Overload: 1.2 times of the rated value Momentary Overload: 10 times of the rated value |
|
| Frequency | 45-60Hz | |
| Functional Module | Interface | 1 RS485; Modbus RTU Integration; Baud Rate: 1200-19200 |
| Power Supply | Working Range | AC: 85-265V; DC: 85-300V |
| Consumption | < 3W | |
| Working Condition | Temperature | Operating: -20℃~+70℃ Storage: -40℃~+80℃ |
| Humidity | Relative Humidity:<93% (place without corrosive gas) | |
| Altitude | <4000m | |
Product features
• Measuring all parameters of power: three-phase current, three-phase voltage, zero sequence current, zero sequence voltage, active power, reactive power, apparent power, frequency, power factor, four-quadrant reactive energy measurement, and etc.
• Standard CT, PT or direct voltage input, suits for barely all mode of connection and environment of high-voltage or low-voltage
• 1 interface of RS485 and Modbus RTU Integration

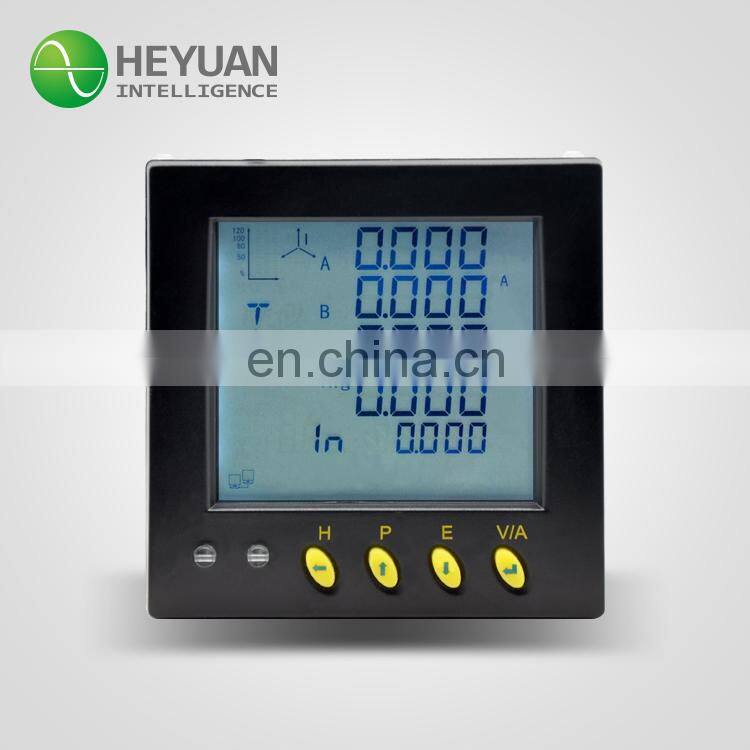

• LCD display
|
|
|
|
|
|
Heyuan Intelligence Technology Co.,Ltd. is headquartered in the CIIIC (China International ICT Innovation Cluster) and has been specialized in electricity industry for nearly 20 years.
It is a pioneering leader in R&D, design, manufacture, sales and service of a wide range of High-tech Smart Power & Energy Meters, IoT Terminals, Railway Remote Terminal Units, Electrical Fire Monitoring System & Products, Energy Management Systems & Solutions etc.
Focusing on different fields, Heyuan’s exceptionally independent R&D teams have obtained over 20 patents, copyrights and other intellectual property rights. Premium and practical products are developed continuously according to customers’ needs. And both OEM&ODM services are available.
Heyuan values the customer relationships and do best to be a reliable supplier for you.
