Products Description

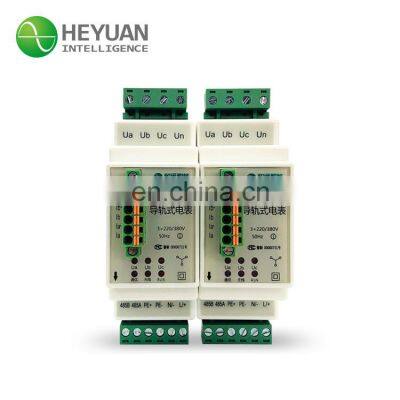

Mini 3 Phase AC Smart Electronic Energy Consumption Kwh Meter
DZS310 is a three-phase smart wireless meter, mainly used for measuring three-phase active energy in low voltage network. Equipped with RS-485 communication, which can upload communication data,sending and receving in time.
It is convenient for Households conduct electricity monitoring, centralized meter reading and distribution maintenance.
The product advantaged in small size, high precision, cloud managemen,flexible installation in various types of distribution
boxes, energy metering, statistics and analysis of different areas and loads.
It is convenient for Households conduct electricity monitoring, centralized meter reading and distribution maintenance.
The product advantaged in small size, high precision, cloud managemen,flexible installation in various types of distribution
boxes, energy metering, statistics and analysis of different areas and loads.
Product Paramenters
Features:
Small size and high precision, Ultra-thin size, width only 37mm, first-class measurement accuracy;
Especially suitable for retrofit projects, industrial automation, equipment data collection, and realize intelligent maintenance
low budget projects;
Coperated with advanced LoRa (or NB-IOT) wireless communication technology;
Safe and reliable network-wide self-organizing network technology;
Smart Cloud management, Remote maintenance and remote upgrade;
Assembly without power cut-off, Save cost and guarantee normal operation of production activities.
Small size and high precision, Ultra-thin size, width only 37mm, first-class measurement accuracy;
Especially suitable for retrofit projects, industrial automation, equipment data collection, and realize intelligent maintenance
low budget projects;
Coperated with advanced LoRa (or NB-IOT) wireless communication technology;
Safe and reliable network-wide self-organizing network technology;
Smart Cloud management, Remote maintenance and remote upgrade;
Assembly without power cut-off, Save cost and guarantee normal operation of production activities.
Technical Parameters-DZS310 | ||||
Accuracy Class | Voltage: 0.5; Current: 0.5; Frequency: 0.05 Hz; Power Factor: 1 | |||
Active Power: 1; Reactive Power: 1; Apparent Power: 1 | ||||
Active Energy: 1; Reactive Energy: 2 | ||||
Input | Rated Value | Voltage:3*220V/380V Current: 100mA | ||
Overload | Voltage: Sustained Overload: 1.2 times of the rated value Momentary Overload:2 times of the rated value Current: Sustained Overload: 1.2 times of the rated value Momentary Overload: 10 times of the rated value | |||
Frequency | 45-65Hz | |||
Functional Module | Pulse Output | 1 | ||
Interface | 1*RS485; Modbus RTU / DL645 adaptive protocol; Baud Rate: 1200-9600 bps | |||
Power Supply | Working Range | AC: 85-265V; DC: 85-300V | ||
Consumption | < 3W | |||
Working Condition | Temperature | Operating: -20°C~+65°C. Storage: -40°C~ +85°C | ||
Humidity | Relative Humidity: < 93% (place without corrosive gas) | |||
Altitude | <4000m | |||
Dimensions: | 90×35×60mm | |||
Installation | Standard Din rail installation | |||
