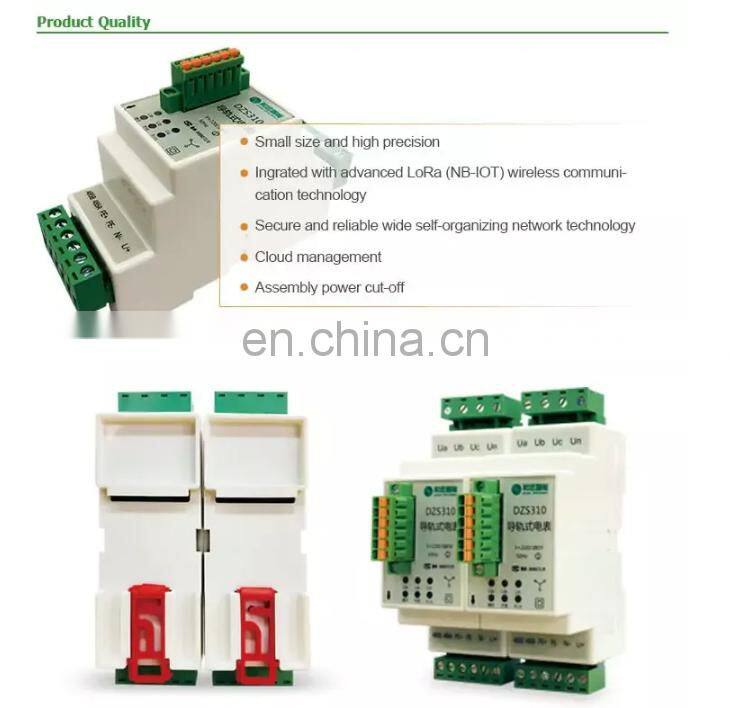

DZS310-B Heyuan Cheap Price Smart Din Rail Three Phase Energy Meter without LCD Display
DZS310 is a multifunction combined metering module with standard Din rail installation.
It can be used for reliable and trustworthy metering of energy usage and widely applied in smart buildings, factories, schools, hospitals etc.,
• Measuring all parameters: three phase voltage, current, line voltage, active power, reactive power, apparent power, power factor, frequency, active energy, reactive energy
• CT, PT or voltage direct connected, suitable for various wiring modes under high or low pressure environment
• 1 interface* RS485/Lora (optional)
• Modbus RTU communication protocol
• 1* programmable energy pulse output
• LCD display
| Technical Parameters-DZS310 | ||
| Accuracy Class | Voltage: 0.5; Current: 0.5; Frequency: 0.05 Hz; Power Factor: 1 | |
| Active Power: 1; Reactive Power: 1; Apparent Power: 1 | ||
| Active Energy: 1; Reactive Energy: 2 | ||
| Input | Rated Value | Voltage:3*220V/380V Current: 100mA |
| Overload | Voltage: Sustained Overload: 1.2 times of the rated value Momentary Overload:2 times of the rated value Current: Sustained Overload: 1.2 times of the rated value Momentary Overload: 10 times of the rated value |
|
| Frequency | 45-65Hz | |
| Functional Module | Pulse Output | 1 |
| Interface | 1*RS485; Modbus RTU / DL645 adaptive protocol; Baud Rate: 1200-9600 bps | |
| Power Supply | Working Range | AC: 85-265V; DC: 85-300V |
| Consumption | < 3W | |
| Working Condition | Temperature | Operating: -20°C~+65°C. Storage: -40°C~ +85°C |
| Humidity | Relative Humidity: < 93% (place without corrosive gas) | |
| Altitude | <4000m | |
| Dimensions: | 90×35×60mm | |
| Installation | Standard Din rail installation | |
