3 Phase Multifunction AC CT Connection Energy Meter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Three Phase Energy and Power Quality Analyzer Watt Hour Meter
-
Watt Hour Bidirectional Pulse Output Kwh 3 Phase Energy Meter RS485
-
Multi Dual Tariff Digital Electric Kwh CT Three Phase Energy Meter
-
DZS300 Three Phase Digital Electric Energy Monitor Watt Multi-tariff Energy Meter
-
DZS300 Din Rail Digital Rs485 Remote for Electric Three Phase Power Meter
-
DZS310 Modbus Din Rail Mount 3 Phase Electric CT Energy Meter
Product Description
Product Description

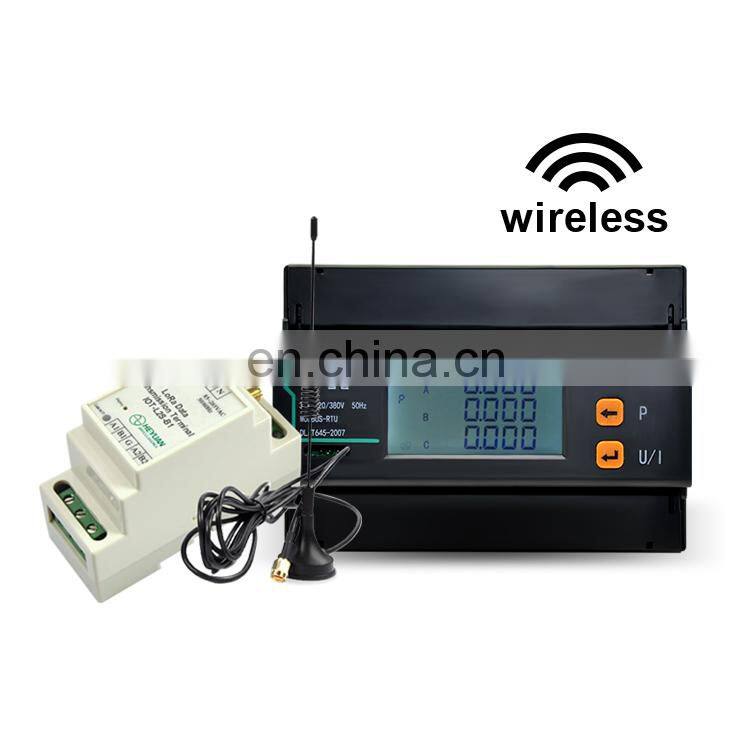

DZS300 3 Phase Multifunction AC CT Connection Energy Meter
DZS300 is a three phase meter with standard Din rail installation.

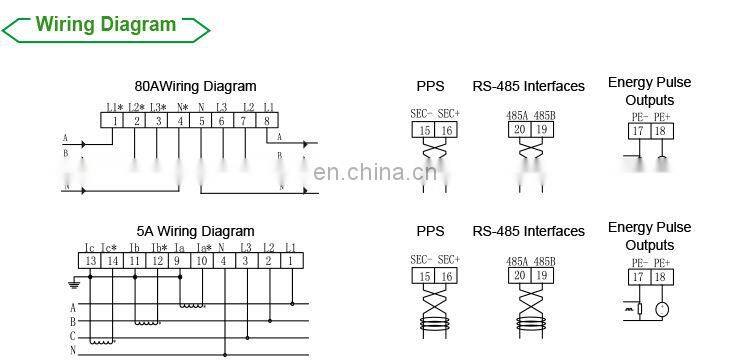

It is measuring active energy with accuracy CL.0.5. Direct connected up to 80A or current transformer (CT) connected. Set up for multi communication protocols as Modbus RTU, DL645.
It can be used for reliable and trustworthy metering of energy usage and widely applied in smart buildings, factories, schools, hospitals etc.,
Features&Functions
• Measuring all parameters: three phase voltage, current, line voltage, frequency, active power, reactive power, apparent power, power factor, active energy, reactive energy
• Direct connected, suitable for various wiring modes under high or low pressure environment
• Analysis of current/voltage harmonic (2-31times)
• Multi tariff (optional), available for querying past 12 months' energy
• 1* RS485, Modbus RTU / DL645 adaptive protocol
• 1* energy pulse output
• LCD display
| Technical Parameters-DZS300 | ||
| Accuracy Class | Voltage: 0.2; Current: 0.2; Frequency: 0.05 Hz; Power Factor: 0.5 | |
| Active Power: 0.5; Reactive Power: 0.5; Apparent Power: 0.5 | ||
| Active Energy: 0.5S/1; Reactive Energy: 2 | ||
| Input | Rated Value | Voltage: 400V Current: 1.5 (6)A, 20(80)A |
| Overload | Voltage: Sustained Overload: 1.2 times of the rated value Momentary Overload:2 times of the rated value Current: Sustained Overload: 1.2 times of the rated value Momentary Overload: 10 times of the rated value |
|
| Frequency | 45-60Hz | |
| Functional Module | Pulse Output | 1 |
| Interface | 1*RS485; Modbus RTU / DL645 adaptive protocol; Baud Rate: 1200-19200 bps | |
| Power Supply | Working Range | AC: 85-265V; DC: 85-300V |
| Consumption | < 3W | |
| Working Condition | Temperature | Operating: -20°C~+70°C. Storage: -40°C~ +80°C |
| Humidity | Relative Humidity: < 93% (place without corrosive gas) | |
| Altitude | <4000m | |
| Dimensions: | 126×890×74mm | |
| Installation | Standard Din rail installation | |
