Energy Monitoring Din Rail Digital Smart CT Meter With RS485 Modbus
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2006
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single/Three Phase Electric Meter Modbus Rtu Din Rail Energy Meter With RS485NegotiableMOQ: 1 -
CE Ethernet Din Energy Meter RS485 Modbus Rtu China Energy MeterNegotiableMOQ: 1
-
Single Phase Three Phase Pulse Kwh Mbus Energy Meter Electronic RS485 MeterNegotiableMOQ: 1
-
LCD Electronic Smart Energy Meter Energy Management Din Rail Module Kwh MeterNegotiableMOQ: 1
-
Din Rail Single Three Phase Energy Meter Modbus Kilowatt Hour Meter RS485NegotiableMOQ: 1
Products Description

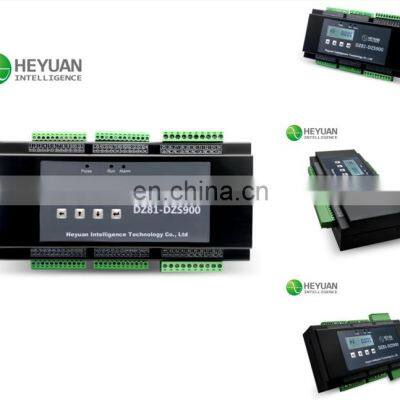

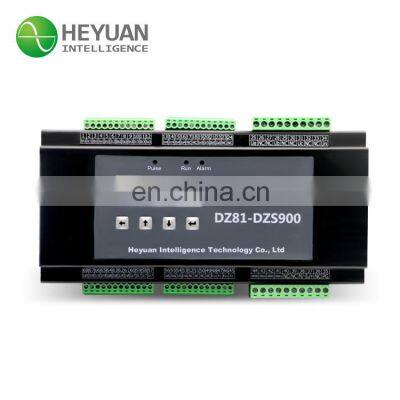

Energy Monitoring Din Rail Digital Smart CT Meter with RS485 Modbus
With internationally cutting-edge imported metering IC solutions, we launched 27circuits smart meters with efficient and stable metering performance for all electrical parameters. Matched with Heyuan Cloud Platform Managing System, it can provide remote stable and reliable data and ensures efficient energy management and electrical safety monitoring.
Features:
• Monitoring up to 9 three-phase channels or 27 single-phase channels and measuring all parameters: three phase voltage, current,
line voltage, zero-sequence current , zero-sequence voltage, active power, reactive power, power factor, frequency, active energy,
reactive energy from 9 circuits.
• Standard CT, PT or voltage direct connected, suitable for various wiring modes under high or low pressure environment

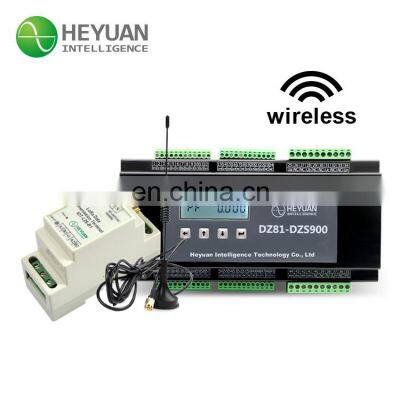

• 2* RS485/Lora LoraWan (optional) • Modbus RTU communication protocol, DL/T645 (optional)
• 4 DI
• 2 DO (optional)
• 2* programmable energy pulse output
• LCD display
line voltage, zero-sequence current , zero-sequence voltage, active power, reactive power, power factor, frequency, active energy,
reactive energy from 9 circuits.
• Standard CT, PT or voltage direct connected, suitable for various wiring modes under high or low pressure environment
• 2* RS485/Lora LoraWan (optional) • Modbus RTU communication protocol, DL/T645 (optional)
• 4 DI
• 2 DO (optional)
• 2* programmable energy pulse output
• LCD display
Product Paramenters
Technical Parameters-DZS900 | ||||
Accuracy Class | Voltage: 0.2; Current: 0.2; Frequency: 0.05 Hz; Power Factor: 0.5 | |||
Active Power: 0.5; Reactive Power: 0.5; Apparent Power: 0.5 | ||||
Active Energy: 0.5S/1; Reactive Energy: 2 | ||||
Inputs | Rated Value | Voltage: 100 V/400 V Current: 20mA | ||
Overload | Voltage: Sustained Overload: 1.2 times of the rated value Momentary Overload: 2 times of the rated value Current: Sustained Overload: 1.2 times of the rated value Momentary Overload: 10 times of the rated value | |||
Frequency | 45-60Hz | |||
Functional Module | Pulse Outputs | 2 | ||
Interface | 2* RS485; Modbus RTU communication protocol; Baud rate: 1200-19200bps | |||
Power Supply | Working Range | AC: 85-265V; DC: 85-300V | ||
Consumption | < 3W | |||
Working Condition | Temperature | Operating: -20°C~+65°C. Storage: -40°C~ +85°C | ||
Humidity | Relative Humidity: < 93% (place without corrosive gas) | |||
Altitude | <4000m | |||
Dimensions: | 210×100×45mm | |||
