RS485 Modbus Low Voltage Intelligent Motor Protector Controller Protection Relay With CT
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1993
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10kw Intelligent RS485 Programmable Motor Thermal Protection Controller KPM60NegotiableMOQ: 1 -
Industrial Programmable Smart Digital Relay Overload Motor ProtectionNegotiableMOQ: 1
-
Industrial Three Phase Electronic Motor Protection Relay Electric Start Protector With High QualityNegotiableMOQ: 1
-
Factory Directly Electronic Motor Protection Relay Electric Start Protector With EMS SystemNegotiableMOQ: 1
-
Comprehensive Protection Low Voltage Motor Dry Run Overheat Protector Device for MachineryNegotiableMOQ: 1

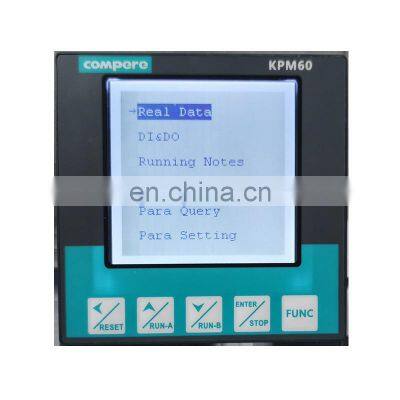

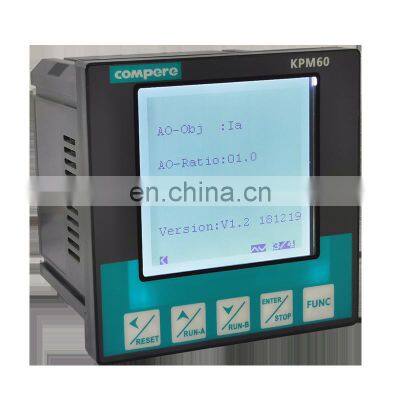

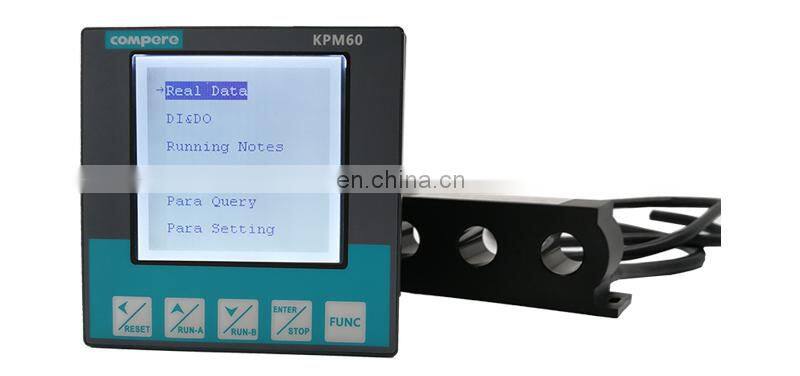

KPM60 RS485 Modbus Low voltage intelligent motor protector controller protection relay with CT
Product Description
| Accuracy Class | Voltage: 0.5(20%Ue~150%Ue); Current: 1.0(10%Ie~120%Ie) Leakage current: 1.0(5%Ise~100%Ise) Frequency: 0.02 Hz(45Hz~65Hz); Power Factor: 1.0 | |
| Power: 2.0 | ||
| Energy: 2.0 | ||
| Input | Rated Value | Voltage: AC380~660V Current: 5A,32A, 100A, 250A, 500A |
| Frequency | 45-65Hz | |
| Functional Module | Analog Output | Output range 4~20mA,Programmable |
| Digital input | 8-way passive main line contact DI input, internal supply DC24V power source | |
| Relay output | 4-way DO output,Contact capacity 250VAC/5A,30VDC/5A | |
| Temperature input | Measure range 0℃~100℃ | |
| Interface | 1*RS485; Modbus-RTU,1200~38400bps Profibus-DP,9600~12Mbps | |
| Power consumption | < 5VA | |
| Working Condition | Temperature | Operating: -25°C~+70°C. Storage: -30°C~ +75°C |
| Humidity | 5%~95% No condensation | |
| Altitude | <4000m | |
| Electrical insulation | Power frequency withstand voltage | AC2kV/min~1mA Input-output-power source |
| Insulation resistance | >50MΩ | |
| Impact voltage | 5kV(Peak),1.2/50us | |

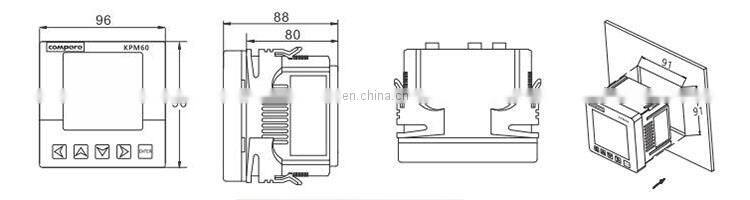

| Dimensions: | 96*96*88mm | |
Packaging & Shipping
Company Information
Certifications
Our Service
1.Experienced manufacturer more than 10 years.
2.Highly experienced production team in Compere factory work-shop.
3.QC System:Quality controlled on all production lines,and QC inspectors work independently from the production line.
4.Good quality production with quick delivery.
5.Accepted OEM/ODM.
6.Accepted small MOQ.
7.Trade Assurance on Alibaba.
8.Factory certification:CE,RoHS and ISO9001.
