3 Phase Lcd Display Din Rail Smart Multifunctional Electric Power Kwh With Rs485 Modbus-rtu Energy Data Logger
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1993
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Phase Electric Energy MeterNegotiableMOQ: 1 -
Single Phase Prepaid Smart Electricity Energy MeterNegotiableMOQ: 1
-
4G/WIFI/ APP Remote Control Prepaid Electric Meter Single Phase Din Rail WIFI Energy MeterNegotiableMOQ: 1
-
Wall Mounted Single Phase Smart With Built-in GPRS NB-IoT Lora Module Energy MeterNegotiableMOQ: 1
-
NEW Thress Phase DIN-RAIL 2P Modbus Electric Power LCD Digital RS485 Energy MeterNegotiableMOQ: 1
Product Overview

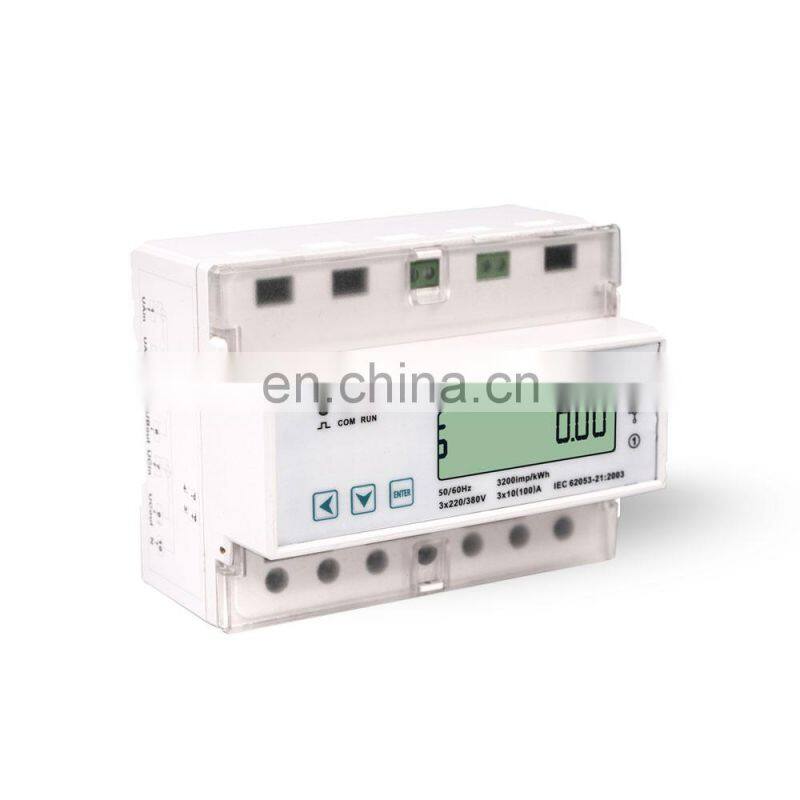

DIN RAIL 3 PHASE WIRELESS SMART ENERGY METER
KPM33 three-phase smart energy meter with DIN35mm type installation structure, LCD display, measurement of electrical energy and other electrical parameters, it can set some parameter, such as the clock, rate period, and so on, it also own electrical energy pulse output function; default RS485 communication interface, optional WIFI connection.
The energy meter has the advantages of small physical protection, high precision, good reliability and convenient installation, and the performance indexes are in line with the requirements of the national standard and power industry standard. The technical requirements for government agencies and large public buildings in the measurement of
electrical energy can also be used for enterprises and institutions for energy management assessment.
FEATURES AT A GLANCE
Application
1. Intelligent distribution management system2. Internal energy consumption statistical analysis and charging statistics basis
3. Energy metering, automatic meter reading system
4. Energy and energy efficiency management system
Feature
1. Measurement of three-phase voltage, current, active power, reactive power, apparent power, power factor, frequency, active energy, reactive energy
2. Multi-rate energy statistics, a day can be set up to eight time periods, four kinds of rates Historical power statistics function
3. Rated current 10-100A
4. LED indicates pulse, phase failure, reverse power, communication status
5. 1 road passive optical coupler collector active pulse output
6. 1 –way RS485 communication interface, default Modbus protocol, optional WIFI communication.
7. 7 +1 bit LCD display a variety of power parameters and information
8. Built-in clock and maintenance-free battery, real-time monitoring, data is permanently saved after power off
9. 35mm standard DIN rail installation, beautiful appearance, easy installation
10. Optional built-in relay for remote control

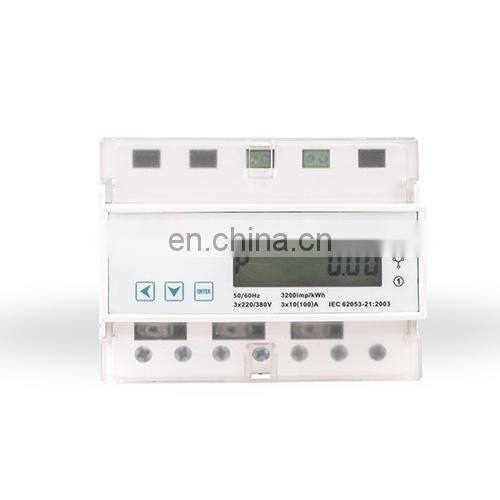

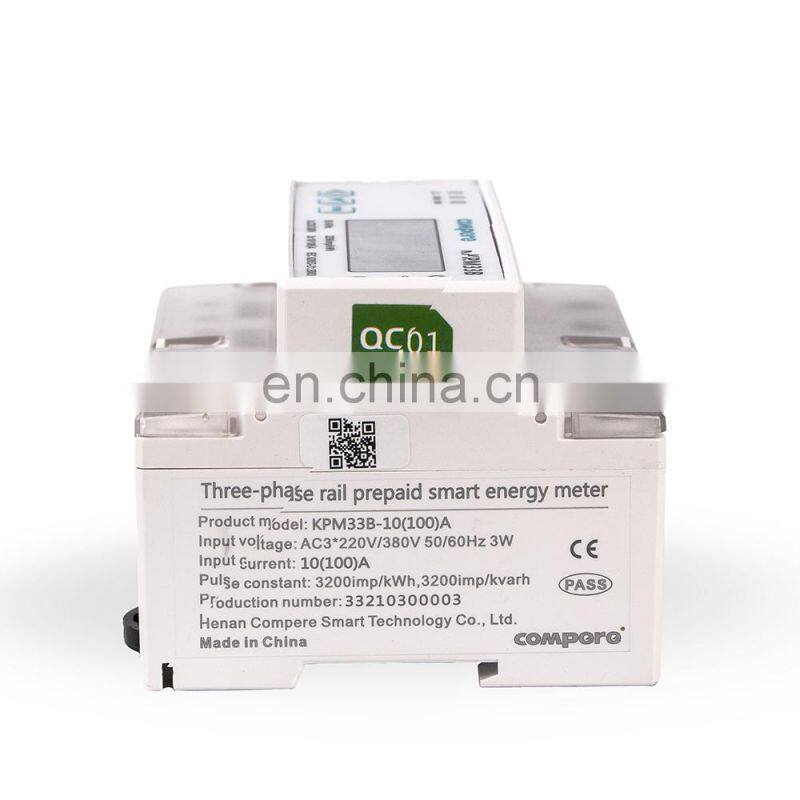

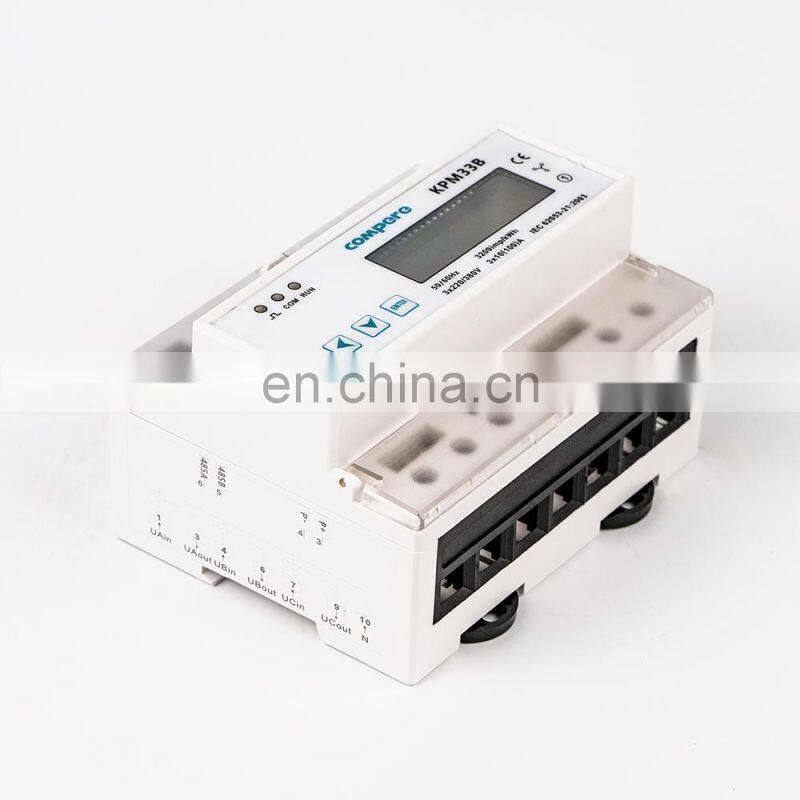

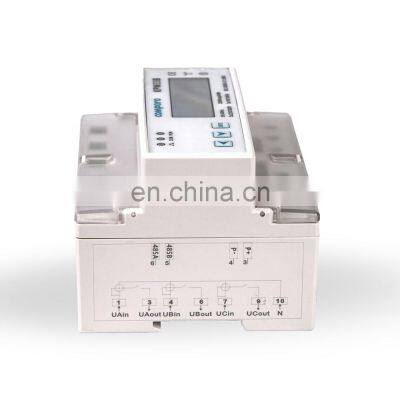

Details Images
Product Paramenters
KPM33Multifunction meter-Technical parameters | ||||||||
Input voltage | Rated voltage | AC 3x220V/380V | ||||||
Overall power consumption | <2VA/ | |||||||
Frequency range | 45~65Hz | |||||||
Input current | Rated current | 10-100A | ||||||
Frequency range | 45~65Hz | |||||||
Measurement accuracy | Voltage | ±0.2%(0.01V) | ||||||
Current | ±0.2%(0.01A) | |||||||
Active power | ±0.5%(0.1W) | |||||||
Reactive power | ±2.0%(0.1kvar) | |||||||
Active energy | ±0.5%(0.1kWh) | |||||||
Reactive energy | ±2.0%(0.1kvarh) | |||||||
Power factor | ±0.5%(0.001) | |||||||
Frequency | ±0.02Hz(0.01Hz) | |||||||
Clock | Clock accuracy | <0.5S/D | ||||||
Communication | Communication interface | RS485,Photoelectric isolation interface | ||||||
Communication protocol | Modbus-RTU,1200~38400bps | |||||||
Electrical insulation | Power frequency withstand voltage | AC2kV/min~1mA Input-output-power source | ||||||
Insulation resistance | >50MΩ | |||||||
Impact voltage | 5kV(Peak),1.2/50us | |||||||
Working environment | Operating temperature | -25℃ ~ +70℃ | ||||||
Relative humidity | 5%~95% No condensation | |||||||
Storage temperature | -30℃ ~ +75℃ | |||||||
Altitude | No more than 4000m | |||||||
