KPM37 NB-IoT WIFI/4G/Modbus Three Phase Energy Meter for Energy Monitoring System Electric Meter Digital Energy Meter Price

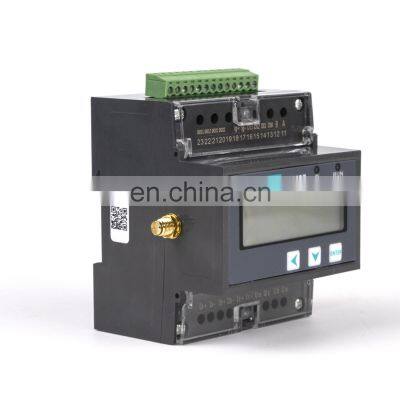

KPM37 NB-IoT WIFI/4G/Modbus Three Phase Energy Meter for Energy Monitoring System Electric Meter Digital Energy Meter Price photo-1

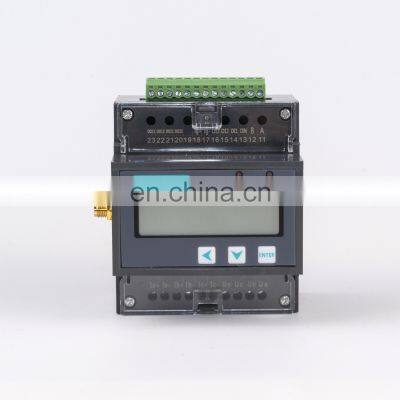

KPM37 NB-IoT WIFI/4G/Modbus Three Phase Energy Meter for Energy Monitoring System Electric Meter Digital Energy Meter Price photo-2
KPM37 NB-IoT WIFI/4G/Modbus Three Phase Energy Meter for Energy Monitoring System Electric Meter Digital Energy Meter Price photo-3
KPM37 NB-IoT WIFI/4G/Modbus Three Phase Energy Meter for Energy Monitoring System Electric Meter Digital Energy Meter Price photo-4
KPM37 NB-IoT WIFI/4G/Modbus Three Phase Energy Meter for Energy Monitoring System Electric Meter Digital Energy Meter Price photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1993
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Overview

KPM37 NB-IoT WIFI/4G/Modbus Three Phase Energy Meter for Energy Monitoring System electric meter Digital Energy Meter

KPM37 Three Phase Rail Smart Power Meter adopts DIN 35MM rail type installation structure and LCD display. It integrates three-phase electric parameter measurement, 2~31st harmonic analysis and time statistics. KPM37 default communication is Modbus-RTU by RS485 interface. WiFi, 4G, Lora communication are optional. The meter can also expand 2-way digital input and 2-way relay output, 4-way temperature measurement and 1 way residual current measurement. KPM37 has the advantages of small size, high accuracy, high reliability, easy installation, etc. It is mostly used for projects for system integration, wire line modification and in limited or inconvenient installation space, etc.
FEATURES AT A GLANCE
Application
1. Intelligent distribution management system
2. Internal energy consumption statistical analysis and charging statistics basis
3. Energy metering, automatic meter reading system
4. Energy and energy efficiency management system

Details Images
Product Paramenters
Technical Parameters - KPM 37 DIN rail three phase wireless energy meter
Item
Data


accuracy class
Voltage: 0.2; Current: 0.2; Frequency: 0.02; Power Factor: 0.5
37.5KW
2
Active Power: 0.5S; Reactive Power: 2.0
2.8 M3
3
Active Energy: 0.5S; Reactive Energy: 2.0
125Ton



Input
Rated Value
Voltage: 57.7/100V, 220/380V,380/660V
5
Max. breakout force
Current: 5A (0~6A)
6
Overload
Voltage: Sustained Overload: 1.2 times of the rated value
7
Engine displacement
Momentary Overload: 2 times of the rated value, allows 1s
8
Max. torque
Current: Sustained Overload: 1.2 times of the rated value
Momentary Overload: 20 times of the rated value, allows 1s
Frequency
45-60Hz

Functional Module
Pulse Output
1
Interface
RS485 / WIFI / 4G/ Lora
Modbus-RTU,DL/T645-2007, MQTT, 1200~38400bps

Power Supply
Working Range
AC: 85-265V; DC: 80-300V
Consumption
< 0.5VA per phase

Working Condition
Temperature
Operating: -25°C~+70°C. Storage: -30°C~ +75°C
Humidity
5%~95% No condensation
Altitude
<3000m
Dimensions:
75*88*74mm
Solution diagram
T@energy wisdom energy management system can connect to KPM37 smart energy meter through RS485/WiFi/4G/Lora, etc.
