Product Overview
LORA DIN RAIL 3 PHASE WIRELESS SMART ENERGY METER

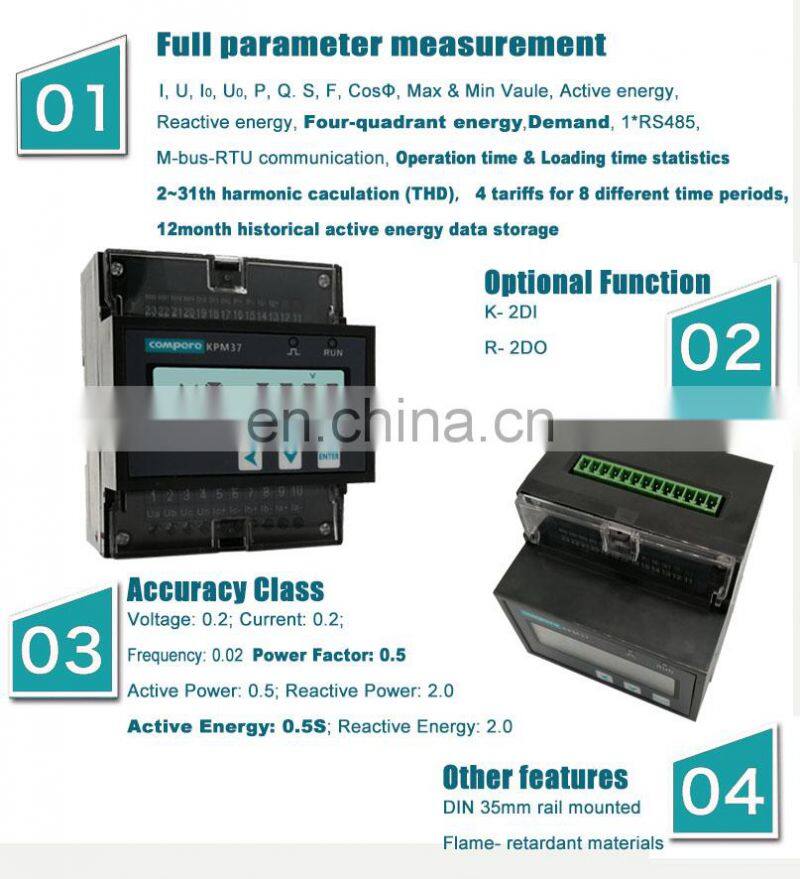

KPM37 DIN rail three phase wireless energy meter adopts DIN 35MM rail type installation structure and LCD display. It integrates three-phase electric parameter measurement, 2~31th harmonic analysis and time statistics. It is equipped with 1 RS485 communication interface. The network management of the instrument can be realized through the Modbus communication protocol. The meter can also expand 3-way digital input and 2-way relay output
FEATURES AT A GLANCE
1.Small size, high accuracy, high reliability, easy installation, etc
2. It is mostly used for projects for system integration, wire line modification and in limited or inconvenient installation space,
etc.
etc.
Details Images
Product Paramenters
Technical Parameters - KPM 37 DIN rail three phase wireless energy meter | Item | Data | ||
accuracy class | Voltage: 0.2; Current: 0.2; Frequency: 0.02; Power Factor: 0.5 | 37.5KW | ||
2 | Active Power: 0.5S; Reactive Power: 2.0 | 2.8 M3 | ||
3 | Active Energy: 0.5S; Reactive Energy: 2.0 | 125Ton | ||
Rated Value | Voltage: 57.7/100V, 220/380V,380/660V | |||
5 | Max. breakout force | Current: 5A (0~6A) | ||
6 | Overload | Voltage: Sustained Overload: 1.2 times of the rated value | ||
7 | Engine displacement | Momentary Overload: 2 times of the rated value, allows 1s | ||
8 | Max. torque | Current: Sustained Overload: 1.2 times of the rated value | ||
Momentary Overload: 20 times of the rated value, allows 1s | ||||
Frequency | 45-60Hz | |||
Pulse Output | 1 | |||
Interface | 1*RS485; Modbus RTU protocol; Baud Rate: 1200-38400 bps | |||
Working Range | AC: 85-265V; DC: 80-300V | |||
Consumption | < 3VA | |||
Temperature | Operating: -25°C~+70°C. Storage: -30°C~ +75°C | |||
Humidity | 5%~95% No condensation | |||
Altitude | <3000m | |||
Dimensions: | 75*88*74mm | |||
