OEM wireless remote on/off WIFI modbus rs485 digital kwh meter 3 phase smart energy meter
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- WIFI/WIRELESS 3 Phase Din Rail Energy Meter kwh Meter Solar Smart ELECTRIC METER Energy Counter Digital Energy Meter
- Three-phase rail dual tariff bi-directional power meter digital and small size
- Single phase rail wifi solar energy meter build in CT KPM31B with load control function
- Three phase multifunction DIN rail smart solar energy meter KPM37 with Lora and Wifi Wireless communication
- intelligent power meter Electricity energy meter energy measure
- electricity meter smart energy meter dual source energy meter energy measure
Product Description
Product Overview

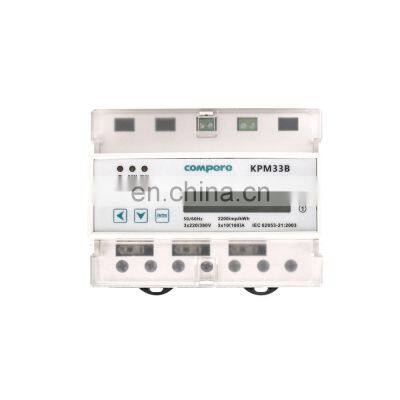

KPM33 WIFI modbus rs485 digital kwh meter 3 phase smart energy meter
KPM33 digital kwh meter 3 phase smart energy meter with DIN35mm rail installation structure,LCD display,measurement of electrical energy and other electrical parameters,it can set some parameter,such as the clock,rate period,and so on,it also own electrical energy pulse output function;multi funtional energy meter, available RS485 communication interface with the host computer Realize data exchange.The energy meter has the advantages of small physical protection,high precision,good reliability and convenient installation,and the performance indexes are in line with the requirements of the national standard and power industry standard DL/T614-2007, 380V watt hours The technical requirements for government agencies and large public buildings in the measurement of electrical energy can also be used for enterprises and institutions for energy management assessment.
FEATURES AT A GLANCE
1.Small size, high accuracy, high reliability, easy installation, etc
2. It is mostly used for projects for system integration, wire line modification and in limited or inconvenient installation space,
etc.
etc.
Details Images
KPM33 WIFI modbus rs485 digital kwh meter 3 phase smart energy meter
KPM33B 3 phase smart energy meter send the data to Gateway KPM204 through WIFI or Modbus RTU. KPM204 send the data to cloud server.
The system software will read the data and save it in the cloud server and do some calculations.
Product Paramenters
KPM33B 3 phase smart energy meter-Technical parameters | ||||||||
Input voltage | Rated voltage | AC 3x220V/380V | ||||||
Overall power consumption | <2VA/ | |||||||
Frequency range | 45~65Hz | |||||||
Input current | 1Rated current | 10-100A | ||||||
Frequency range | 45~65Hz | |||||||
Measurement accuracy | Voltage | ±0.2%(0.01V) | ||||||
Current | ±0.2%(0.01A) | |||||||
Active power | ±0.5%(0.1W) | |||||||
Reactive power | ±2.0%(0.1kvar) | |||||||
Active energy | ±0.5%(0.1kWh) | |||||||
Reactive energy | ±2.0%(0.1kvarh) | |||||||
Power factor | ±0.5%(0.001) | |||||||
Frequency | ±0.02Hz(0.01Hz) | |||||||
Clock | Clock accuracy | <0.5S/D | ||||||
Communication | Communication interface | RS485,Photoelectric isolation interface | ||||||
Communication protocol | Modbus-RTU,1200~38400bps | |||||||
Electrical insulation | Power frequency withstand voltage | AC2kV/min~1mA Input-output-power source | ||||||
Insulation resistance | >50MΩ | |||||||
Impact voltage | 5kV(Peak),1.2/50us | |||||||
Working environment | Operating temperature | -25℃ ~ +70℃ | ||||||
Relative humidity | 5%~95% No condensation | |||||||
Storage temperature | -30℃ ~ +75℃ | |||||||
Altitude | No more than 4000m |
