Help Center2-31st Harmonic Analysis Power Meter Three-phase Smart Power Meter Measure Total Harmonic Distortion Rate
Related Products
-
Digital LCD RS485 Port Modbus Tcp 3 Phase Network Electrical Power Meter KPM53ZNegotiableMOQ: 1 -
3Phase Digital Electrical Smart Energy KWH Meter 4-20mA Analog Output and Modbus-rtu RS485NegotiableMOQ: 1
-
21st THD 0.5S 3 Phase Modbus RS485 Ethernet Remote Stop Smart Lcd Multifunction Power MeterNegotiableMOQ: 1
-
Three Phase Intelligent Energy Meter Measure 3 Phase Power Parameters LCD DisplayNegotiableMOQ: 1
-
KPM10 Multifunction Digital Power Meter 3 Phase Current Voltage Frequency MeterNegotiableMOQ: 1

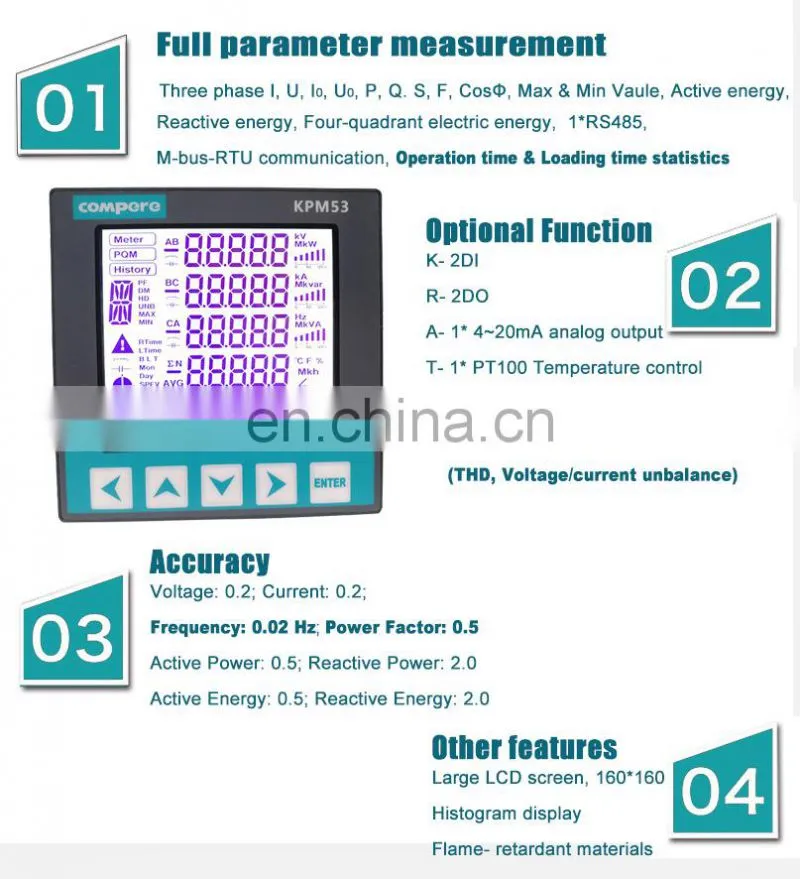

KPM53 series rs485 smart meter with accurate measurement of power parameters,the instrument uses advanced ARM processor and digital signal processing technology designed from the set of three-phase electrical parameters measurement,display, power statistics,power quality analysis,digital input/Output and network communications in one;with high precision,strong isolation,stable performance,anti-interference ability and a little; the instrument also has a very strong expansion capabilities,such as monitoring of external switching action,4-20mA analog output,but also The network management of the instrument can be realized through RS-485/Modbus communication protocol.
Application Occasion
1.Alternative analog pointer table.
2.Display and control of electrical parameters in mid-low voltage distribution System.
3.Collect energy consumption data that cost center analysis needs.
4.Green building or DC.
| Technical Parameters - KPM 53 smart digital commercial electric meter | ||
| Accuracy Class | Voltage: 0.2; Current: 0.2; Frequency: 0.02 Hz; Power Factor: 0.5 | |
| Active Power: 0.5S; Reactive Power: 2.0 | ||
| Active Energy: 0.5S; Reactive Energy: 2.0 | ||
| Input | Rated Value |
Voltage: 57.7/100V, 220/380V,380/660V Current: 1A(0~1.2A), 5A (0~6A) |
| Overload | Voltage: Sustained Overload: 1.2 times of the rated value | |
| Momentary Overload: 2 times of the rated value, allows 1s | ||
| Current: Sustained Overload: 1.2 times of the rated value | ||
| Momentary Overload: 20 times of the rated value, allows 1s | ||
| Frequency | 45-60Hz | |
| Functional Module | Pulse Output | 1 |
| Interface | 1*RS485; Modbus RTU protocol; Baud Rate: 1200-38400 bps | |
| Power Supply | Working Range | AC: 85-265V; DC: 80-300V |
| Consumption | < 3VA | |
| Working Condition | Temperature | Operating: -25°C~+70°C. Storage: -30°C~ +75°C |
| Humidity | 5%~95% No condensation | |
| Altitude | <4000m | |
| Dimensions: | 96×96×88mm | |

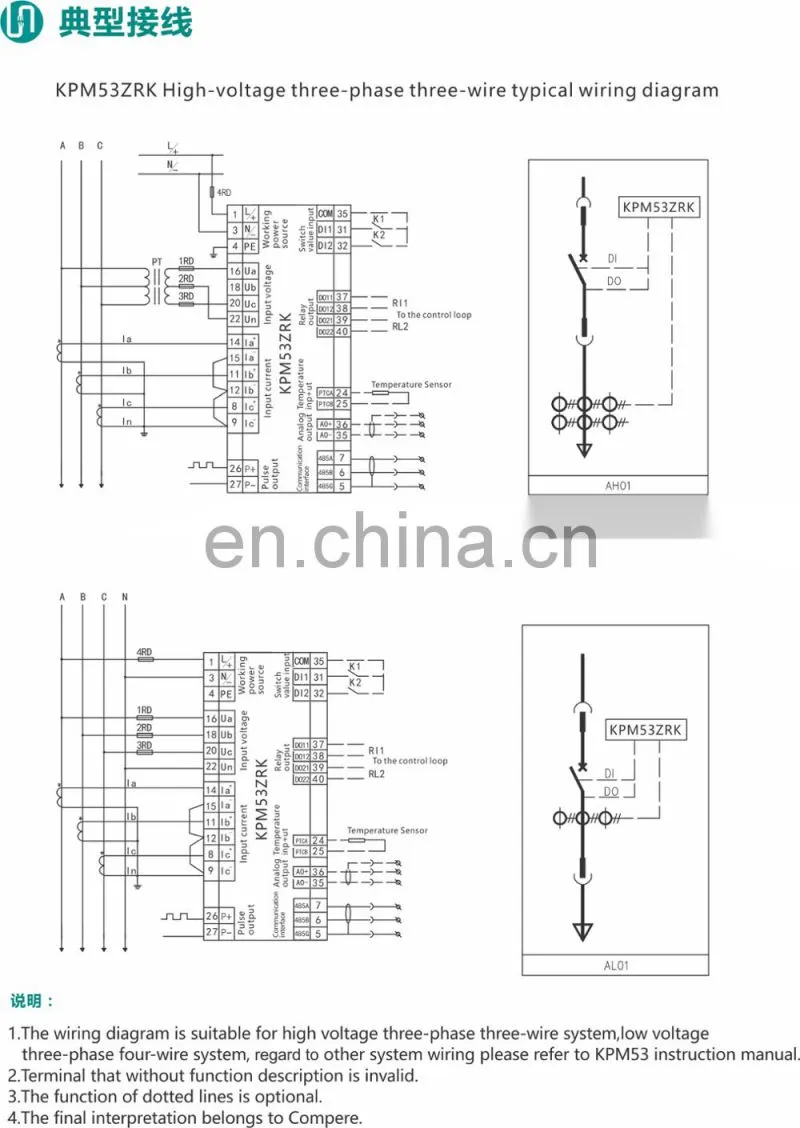

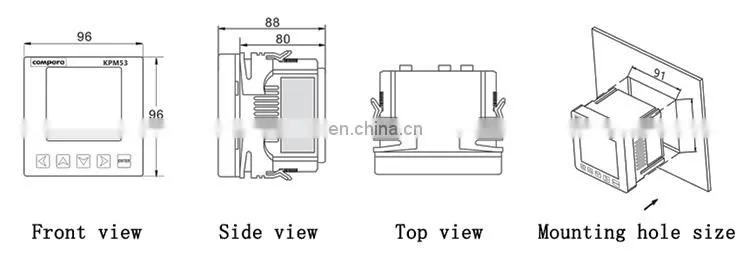

Dimension&Wiring diagram
1.Experienced manufacturer more than 10 years.
2.Highly experienced production team in Compere factory work-shop.
3.QC System:Quality controlled on all production lines,and QC inspectors work independently from the production line.
4.Good quality production with quick delivery.
5.Accepted OEM/ODM.
6.Accepted small MOQ.
7.Trade Assurance on Alibaba.
8.Factory certification:CE,RoHS and ISO9001.
