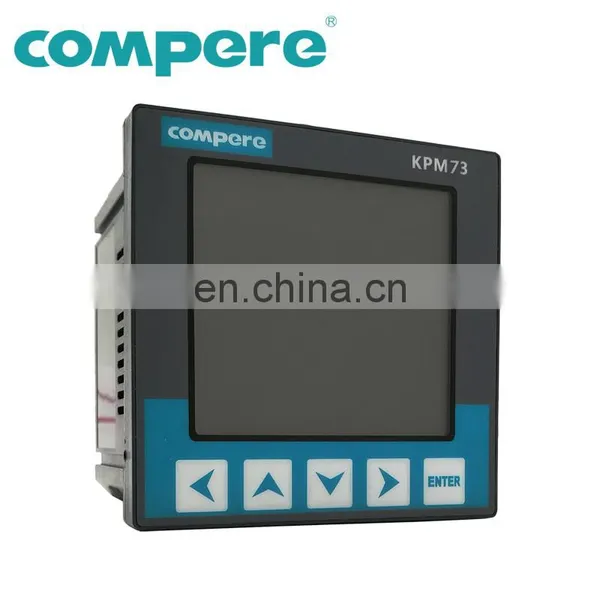

3Phase Modbus RS485 Smart Multifunction Power Quality Analyzer KPM73
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1993
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3Phase Smart Multifunction Power Meter KPM53S Rated Current 1A and 5ANegotiableMOQ: 1 -
Modbus Communication Electrical Pqm Power Quality Meter Phase Analyzer LCD Display for MonitoringNegotiableMOQ: 1
-
High Precision and Best Quality Power Analysis Analyzer 3 Phase 4 Wire Analyser for Low Voltage Electrical SystemNegotiableMOQ: 1
-
Digital Power Quality Analyzer High-end Meter and Energy for MonitoringNegotiableMOQ: 1
-
Panel Mounted Three Phase Power Quality Analyzer Power Factor Meter Digital Power Meter PriceNegotiableMOQ: 1
3Phase Modbus RS485 Smart Multifunction Power Quality Analyzer KPM73
Product Description
3 phase analyser energy monitoring devices Application Occasion
1.Measure, monitoring power distribution system parameters.
2.Collect energy consumption data that cost center analysis needs.
3.Limit monitor alarm(such as over voltage, power consumption).
4.Power quality analysis.
5.Green building or DC.
| Technical Parameters - KPM73 3 phase analyser energy monitoring devices | ||

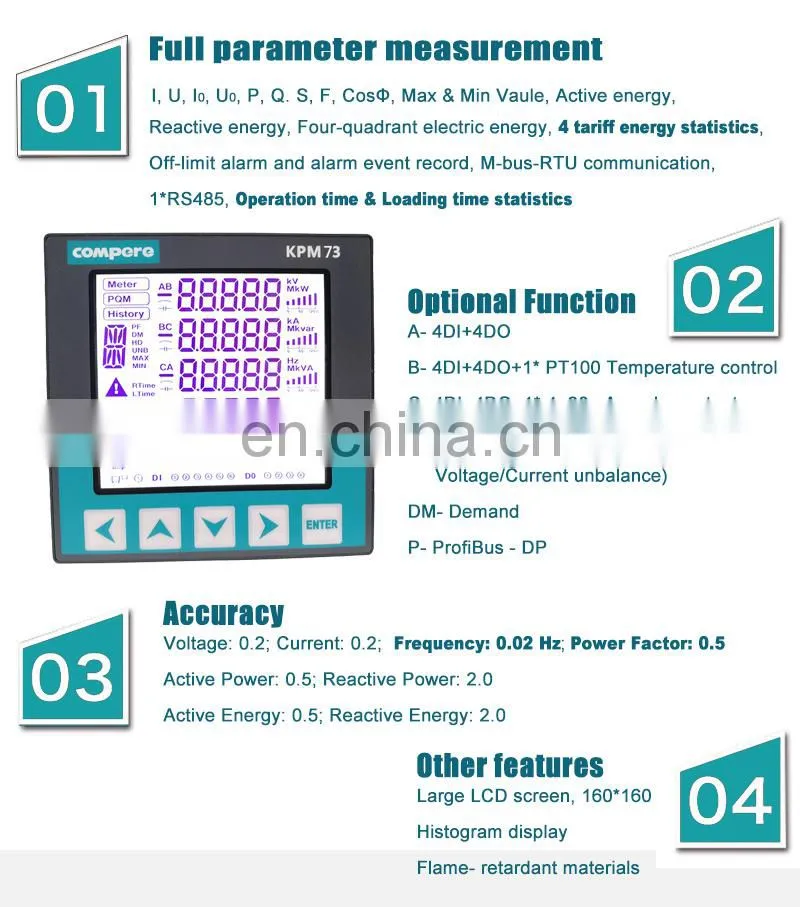

| Accuracy Class | Voltage: 0.2; Current: 0.2; Frequency: 0.02; Power Factor: 0.5 | |
| Active Power: 0.5S; Reactive Power: 2.0 | ||
| Active Energy: 0.5S; Reactive Energy: 2.0 | ||
| Input | Rated Value |
Voltage: 57.7/100V, 220/380V,380/660V Current: 1A(0~1.2A), 5A (0~6A) |
| Overload | Voltage: Sustained Overload: 1.2 times of the rated value | |
| Momentary Overload: 2 times of the rated value, allows 1s | ||
| Current: Sustained Overload: 1.2 times of the rated value | ||
| Momentary Overload: 20 times of the rated value, allows 1s | ||
| Frequency | 45-60Hz | |
| Functional Module | Pulse Output | 1 |
| Digital input | 4 | |
| Relay output | 4 | |
| Interface |
1*RS485; Modbus RTU protocol; Baud Rate: 1200-38400 bps Optional Profibus-DP protocol, 9600~12Mbps |
|
| Power Supply | Working Range | AC: 85-265V; DC: 80-300V |
| Consumption | < 3VA | |
| Working Condition | Temperature | Operating: -25°C~+70°C. Storage: -30°C~ +75°C |
| Humidity | 5%~95% No condensation | |
| Altitude | <4000m | |
| Dimensions: | 96×96×88mm | |
Packaging & Shipping
Our Service
1.Experienced manufacturer more than 10 years.
2.Highly experienced production team in Compere factory work-shop.
3.QC System:Quality controlled on all production lines,and QC inspectors work independently from the production line.
4.Good quality production with quick delivery.
5.Accepted OEM/ODM.
6.Accepted small MOQ.
7.Trade Assurance on Alibaba.
8.Factory certification:CE,RoHS and ISO9001.
Certifications
FAQ
All instrumentation products, can be returned within 15 days, 1 year can be exchanged, life-long maintenance.
