ZigBee 5A Lighting Relay 1 2 3 Gang Light Relay Zigbee Smart Relay

ZigBee 5A Lighting Relay 1 2 3 Gang Light Relay Zigbee Smart Relay thumbnail-1
ZigBee 5A Lighting Relay 1 2 3 Gang Light Relay Zigbee Smart Relay thumbnail-2
ZigBee 5A Lighting Relay 1 2 3 Gang Light Relay Zigbee Smart Relay thumbnail-3
ZigBee 5A Lighting Relay 1 2 3 Gang Light Relay Zigbee Smart Relay thumbnail-4
ZigBee 5A Lighting Relay 1 2 3 Gang Light Relay Zigbee Smart Relay thumbnail-5
ZigBee 5A Lighting Relay 1 2 3 Gang Light Relay Zigbee Smart Relay photo-1
ZigBee 5A Lighting Relay 1 2 3 Gang Light Relay Zigbee Smart Relay photo-2
ZigBee 5A Lighting Relay 1 2 3 Gang Light Relay Zigbee Smart Relay photo-3
ZigBee 5A Lighting Relay 1 2 3 Gang Light Relay Zigbee Smart Relay photo-4
ZigBee 5A Lighting Relay 1 2 3 Gang Light Relay Zigbee Smart Relay photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2001
Annual Export Value:
US$10 Million - US$50 Million
Contact Supplier Request Quote Chat Now
Xiamen Pawmate Smartek Co.,ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us


Product Description

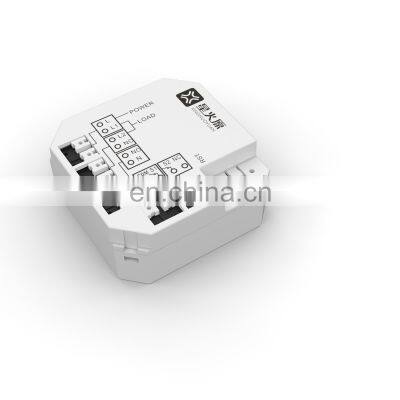

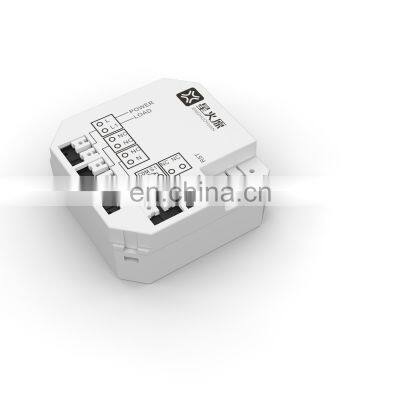

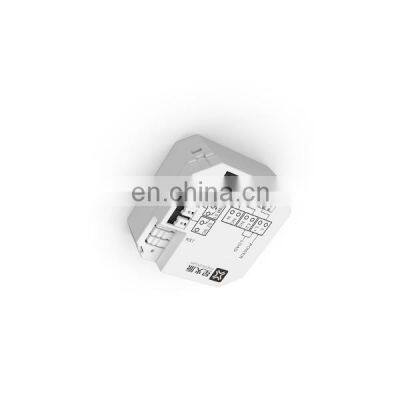

 SLC631 Lighting Relay  light relay

Introductions
ZigBee 5A Lighting Relay 1 2 3 Gang Light Relay Zigbee Smart Relay
-The SLC631 Lighting Relay could be embedded in any global standard In-wall
junction box, connecting the traditional switch panel without destroying the
original home decoration style. It could remotely control In wall switch when it
works with gateway.

Main Features
  • ZigBee HA1.2 compliant
  • Upgrades existing lighting to a remote control lighting system
  • Easy installation by simply inserting the Power Relay into the existing power line
  • Extra control cables available to integrate with existing physical switch

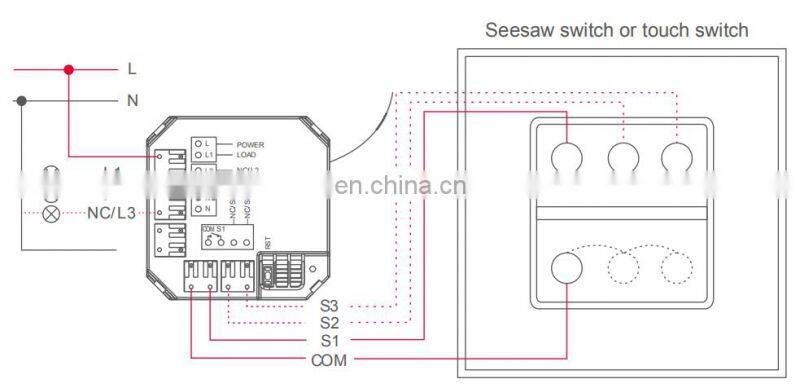

  • Connects with switch to control three-way light

Main Specification

Wireless connectivity ZigBee 2.4GHz IEEE 802.15.4
RF Characteristics

Operating frequency: 2.4GHz

Range outdoor/indoor: 100m/30m

15 channels

3DB output power
ZigBee Profile Home Automation Profile HA 1.2 Compliant
Power

110~240V, 50~60Hz
Current 5 Amps
Load

300W incandescent bulb or halogenated bulb,

50W fluorescent lamp
Button/Switch

Reset Button

On/Off Button
Antenna

ZigBee External antenna
Operating environment

Temperature: -10℃ ~ +50℃

Humidity: 0-95%
ZigBee Security

Preconfigured Link Key

Certicom Implicit Certificate

Certificate-Based Key Exchange (CBKE)

Elliptic Curve Cryptography (ECC)
Weight 30g
Dimension 48 x 48 x 20 mm
Certification CE



SLC631 have 1/2/3 way switches



 ZigBee 5A Lighting Relay 1 2 3 Gang Light Relay Zigbee Smart Relay

Any home can be SMART if you want,system module in us:

- Energy ( Smart Plug, Din rail, Load Control, Power Clamps)
- Comfort ( HVAC Thermostat, Fan coil thermostat, AC control etc)
- Security ( Door/window sensor, smoke detector, multi-sensors etc)
- Lighting ( LED bulb, Relays, Smart plug, wireless dimmer switch etc)
- Video (IP camera)



Certifications

 ZigBee 5A Lighting Relay 1 2 3 Gang Light Relay Zigbee Smart Relay



Packaging & Shipping







FAQ

Q1. How can I return this device to factory default settings?
A1: Please press and hold the reset button for six seconds until the LED light flashes twice.
Q2. Can I control this power relay using a wireless switch?
A2: Yes. You could use a ZigBee wireless switch such as SLC602 wireless switch to control

it rather than using the mobile app, please see SLC602 wireless switch for more info of

how to do so.

Company Information



About Owon



OWON Technology (part of LILLIPUT Group) is an ISO 9001:2015 certified Original Design

Manufacturer specialized in the design and manufacturing of electronic and

computer-related products since 1993.



Backed by a solid foundation in embedded computer and LCD display technology, and by

partnering with major industry players, OWON further integrates IOT technologies into

its technology mix, offering both standardized products and customized solutions for

utilities, cable/broadband operators, home builders, property management, contractors,

and the retail market. OWON’s line of ZigBee technologies covers Smart Energy, Home

Automation, and Light Link.



ISO Certification





ODM/OEM Service

  • Transfers your ideas to a tangible device or system
  • Delivers full-package service to achieve your business goal




  • Full-line technical service including industrial & structural design, hardware & PCB design, firmware & software design, and system integration;
  • 20-plus years of manufacturing experience backed by a mature and efficient supply chain;
  • Stable and consistent human resources as well as active employee involvement;
  • The combination of “international presentation” and “made in China” guarantees high-level customer satisfaction without sacrificing cost effectiveness.
