Smart Din-Rail Double Pole Energy Measurement Zigbee Din Rail Switch
Control special zone On/Off status as well as to check real-time energy usage wirelessly via your mobile App.
Introduction
Din Rail Main Features
|
• ZigBee 3.0 |
|
|
• Work with any standard ZigBee Hub |
|
|
• Relay with double-break mode |
|
|
• Control your home device via Mobile APP |
|
|
• Energy consumption measuring |
|
|
• Extend the range and strengthen ZigBee network communication |
Main Specifications
|
Wireless Connectivity |
ZigBee 2.4GHz IEEE 802.15.4 |
|
ZigBee Profile |
ZigBee 3.0 |
|
Range outdoor/indoor |
100m/30m |
|
Relay
|
Neutral and live wire double break
|
|
Max Load Current |
50Amps
|
|
Calibrating Metering Accuracy |
≤ 100W (Within ±2W)
>100W (Within ±2%)
|
|
Weight |
222g |
Din-Rail Series
| CB431 |
CB432 |
CB432-DP |
|
|
|
| ZigBee Din Rail Relay |
ZigBee Din Rail Relay |
ZigBee Din Rail Relay - Double Pole |
| 100-240V 16A | 100-240V 32/60A | 100-240V 32A |
| <0.7W | <0.7w | <0.7W |
Any home can be SMART if you want,system module in us:
- Energy ( Smart Plug, Din rail, Load Control, Power Clamps)
- Comfort ( HVAC Thermostat, Fan coil thermostat, AC control etc)
- Security ( Door/window sensor, smoke detector, multi-sensors etc)
- Lighting ( LED bulb, Relays, Smart plug, wireless dimmer switch etc)
- Video (IP camera)
Very Easy to Start Your Smart Life
• NO.1 To get started, you will need:
1. A SEG-X3 Gateway.
2. The SmartOWON mobile app
• NO.2 Installation

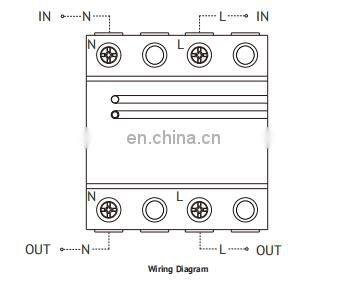

1. The CB432-DP must be installed by a qualified electrical personnel, please keep the
wiring diagram below for future reference.
• NO.3 Connect to the gateway’s network
1. Set your gateway to permit joining.
2. The LED indicator of the circuit breaker will start flashing after installation
indicating it is ready to join the gateway's network.
3. The circuit breaker will join the gateway automatically and the LED
indicator will become steady when successfully joined.
4. Now you can find the circuit breaker under Automation interface on the
mobile phone. You can control the on/off status as well as to measure the
power consumption of the electric circuit
