304 Stainless Steel Tubular Electromagnetic Flowmeter With RS485 Protocol Tetrafluoron Lining

Electromagnetic flowmeter is a kind of instrument which uses electromagnetic induction principle and measures the flow of conductive fluid according to the electromotive force caused by the conductive fluid through external magnetic field.

1, the measurement is not affected by fluid density, viscosity, temperature, pressure and conductivity changes;

2, measuring tube without obstruction flow parts, no pressure loss, straight pipe section requirements are low.  It has unique adaptability to grout measurement;

3, reasonable choice of sensor lining and electrode materials, that is, has good corrosion resistance and wear resistance;

4, the converter adopts novel excitation mode, low power consumption, zero stability, high accuracy.  Flow range up to 150:1;

5, converter and sensor can be composed of a body or separate type;

6, converter adopts 16-bit high-performance microprocessor, 2x16LCD display, convenient parameter setting, reliable programming;

7, the flowmeter is a two-way measurement system, equipped with three integrators: forward total, reverse total and difference total;  Can display positive and reverse flow, and has a variety of output: current, pulse, digital communication, HART;

8, the converter adopts surface mounting technology (SMT), with self-test and self-diagnosis function;

9, the measurement accuracy is not affected by fluid density, viscosity, temperature, pressure and conductivity changes, sensor induced voltage signal and average flow rate is linear, so the measurement accuracy is high.

10. Measure open flow parts in the pipeline, so there is no additional pressure loss;  The sensor has a long life because there are no moving parts in the pipeline.

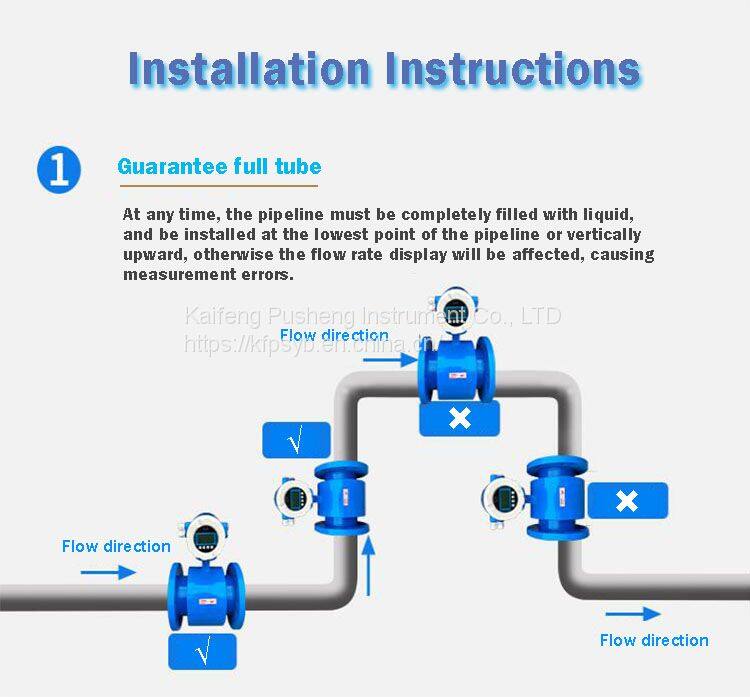

11. Because the induced voltage signal is formed in the entire space filled with magnetic field and is the average of the load surface of the pipe, the straight pipe section required by the sensor is shorter, 5 times the diameter of the pipe.

12, the converter adopts the latest and most advanced MCU and surface mount technology (SMT), reliable performance, high precision, low power consumption, stable zero point, convenient parameter setting.  Click Chinese LCD to display cumulative flow, instantaneous flow, flow rate, flow percentage, etc.

13, two-way measurement system, can measure forward flow, reverse flow.  Special production technology and high quality materials are adopted to ensure that the performance of products remains stable for a long time.

Kaifeng PuSheng instrument co., LTD., mainly producing all kinds of rotor meter, the level of spiral meter, vertical spiral water meter, water meter, prepaid intelligent water meter, IC card intelligent water meter, bluetooth intelligent water meter, nb intelligent water meter intelligent water meter and valve control meter, such as photoelectric read-only meter, ultrasonic heat meter, ultrasonic water meter, electromagnetic flowmeter, the throttle device, the vortex street flowmeter,  Turbine flowmeter, and related software and hardware development, the company has intelligent circuit board and software research and development capabilities, through the ISO9000 certification system is a collection of research and development, production, sales, after-sales service, technical training as one of the high-tech production and development enterprises.

With decades of experience in the production and service of water meters, electricity meters and other meters and calibration devices, we have the best quality control experts and scientific research and production team in China.  Company measurement experts get the measurers through certificate issued by the state in 1982, the quality control experts in 1968 (the original 983 factory), now known as artisans power of the luoyang bearing factory equipment factory work, presided over many products to participate in the national competition for weighing apparatus in China the national front row, computer industry core expert team with 20 years of experience, double card master,  And scientific research institutes, universities, as well as a number of master's doctor cooperation to set up a RESEARCH and development service team, with various aspects of the system of research and development and production capacity, flow meter by decades of experience in the flow meter technical experts carefully built supervision.  We service clients with unit of former five machine department, Beijing, Shanghai, ningbo and other places, shanxi, shandong, hebei, etc all kinds of users throughout the country, dozens of tap water company, we have training of luoyang, zhengzhou city tap water company check personnel, we have decades of instrument technical service and technical support capabilities.
