24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation

24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation thumbnail-1
24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation thumbnail-2
24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation thumbnail-3
24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation thumbnail-4
24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation thumbnail-5
24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation photo-1
24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation photo-2
24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation photo-3
24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation photo-4
24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
Above US$100 Million
Contact Supplier Request Quote Chat Now
Shandong Handun Environmental Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us





Turbo Roof Ventilator



 24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation



Product Description

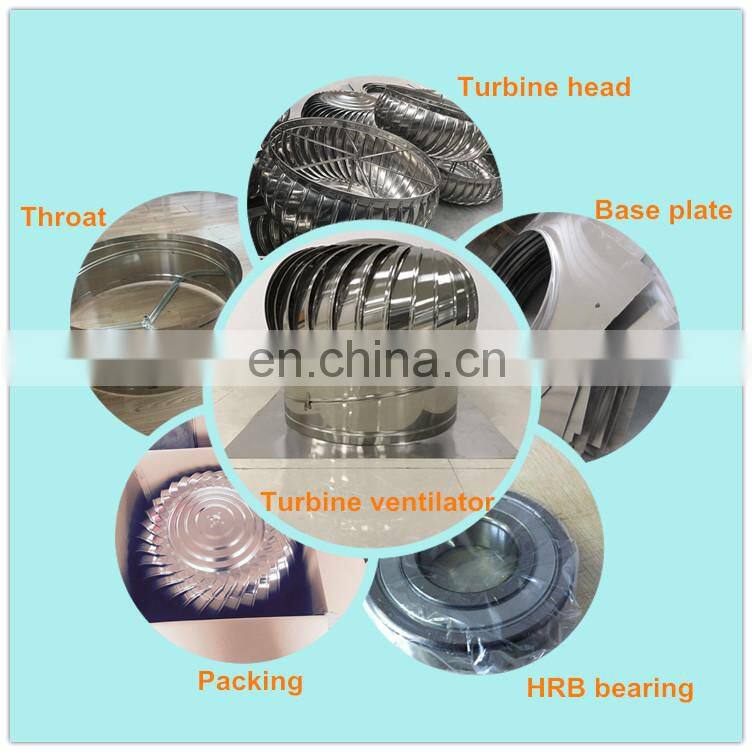

1.Specifications / structure



1). Material: made of stainless steel by stretching forming, attractive appearance, no rust,



2). Bearing: wholel sealing bearing, which can ensure it operates smoothly and constantly.



3). Special central shaft design, high-class lubricating bearing system: preventing turbine blades



rotating at high speed from deformation, and extending the service life.



4). Inside support frame: stainless steel

 24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation

Technical parameters



Model

NO.

Inlet Diameter

(mm)

Outlet Diameter

(mm)

Air speed (km/h)

Air capacity

(m3/h)

Weight

(kg)

Material

200

200

400

9.6-12.8

940-1440

2

Stainless steel304/201

300

300

460

9.6-12.8

1410-2160

3

Stainless steel304/201

400

400

520

9.6-12.8

1630-2900

3.6

Stainless steel304/201

500

500

620

9.6-12.8

2220-3650

6

Stainless steel304/201

600

600

720

  9.6-12.8

2410-4510

7

Stainless steel304/201

680

680

860

9.6-12.8

2610-5250

9

Stainless steel304/201

800

800

950

9.6-12.8

3710-5890

10.5

Stainless steel304/201

900

900

1000

9.6-12.8

3920-7330

11

Stainless steel304/201

1000

1000

1100

9.6-12.8

4360-8560

13

Stainless steel304/201

 24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation



2.Advantages



1). Automatically running. wind drive. One time investment, no anymore cost.



2). No operating cost, no electricity consumption, environmental protection, energy-saving.



3). No need maintenance, long life working.



4) Light weight, strong and durable construction.



5) Weather resistance,  self-cleanness, high revolving sensitivity and high air venting efficiency.



6) Easy installation:.installation position: flat roof, pitched roof, concrete roof and contour plate of



various industrial plants.



7). waterproof efficiency may reach 100%.



3.Function:



1). Exhausting turbid, humid hot air to exterior and supplying fresh air to interior.



2).Produce air convection as a heat radiator, reducing indoor temperature, increasing air fresh.



3).Reduce air conditioning load, increasing the cooling effect



4.Low noise of environmental protection: Low rotational speed air blower , high to lure swimming skill eliminate noise cushion , streamline shape charge water device effective cooling tower impact on environment , DFN of control ,.

5.Attractive and durable: The shape of the tower is beautiful , merge with the building perfectly; Top layer is it import colored glue clothing to adopt, include ultraviolet absorbent inside,fade. Customers can choose the body color of the tower according to user’s enquiry. The tower body is light and handy  Adopt FRP composite in a large amount, fever for Israel soak zinc light-duty steel as skeleton, pass Solid Edge CAD optimization design.

Application

Widely used in these places

1). Ware house ventilation ;

2). Factories and workshops (such as paper mill, galvanized products producing factories,

painting factories);

3). Garage and other buildings which need air ventilate.

 24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation

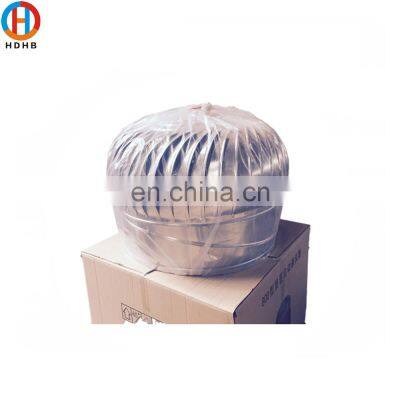

Packaging & Shipping

 24'' Aluminum Turbo Roof Ventilator Backpack Fan For Factory Air Ventilation
