Large Capacity Ball Bearing SF Axial Flow Fan Industrial Mist Fan
- 1000 per Month
- T/T Credit Card
- High Temperature Proof Industrial Axial 18'' Blower Fan High Temperature For Dryer Machine
- Vanes Explosion Proof FRP Axial Flow Exhaust Fans Axial Blower Fans For Air Ventilation
- High Temperature Proof Carbon Steel or Aluminum 600mm Axial Fan High Temperature Dryer Fan Blower
- Stainless Steel / Carbon Steel 800mm Reverse Type Axial Fan High Temperature for Wood Drying
- Commercial Portable Ventilation Fan Kitchen Exhaust Fan With Aluminum Blades
- Explosion Proof Portable Ventilation Fan Kitchen Fan
Product Description
Industrial Industrial Mist Fan
1. Application
The ZHT-35 type axial fan is not only suitable for the workshop, warehouse, hotel, shopping mall, restaurant, office’s ventilation, but also used for the refrigeration, air conditioning and refrigeration equipment ancillary.
It is easy to install, good air-change effect, security, can send the air to anywhere via air duct.
2. Structure:
The axial fan contains 1, nave; 2, blade; 3, axle; 4, shell; 5,wind collector; 6, fairing; ,7, rectifier; 8,diffuser; 9, and the wind inlet and impeller etc;
3.Type:
The fans conisist of steel fan, FRP fan, plastic fan, PP fan, PVC fan, aluminum fan, stainless steel fan etc according to differnet material
The fans are divided into anti-corrosion fan, anti-explosion and anti-corrosion fan. According to the usage.
The fans are didivded into induct fan, wall type fan, fixed type fan, rainproof and dustproof fan, external motor type fan etc. according to the customers’ requirements.
4.Advantage:
This kind of fan has the features: structure suppleness, stable and reliable, low noise, good look. The parts can be made separately, easy to assemble and disassemble.

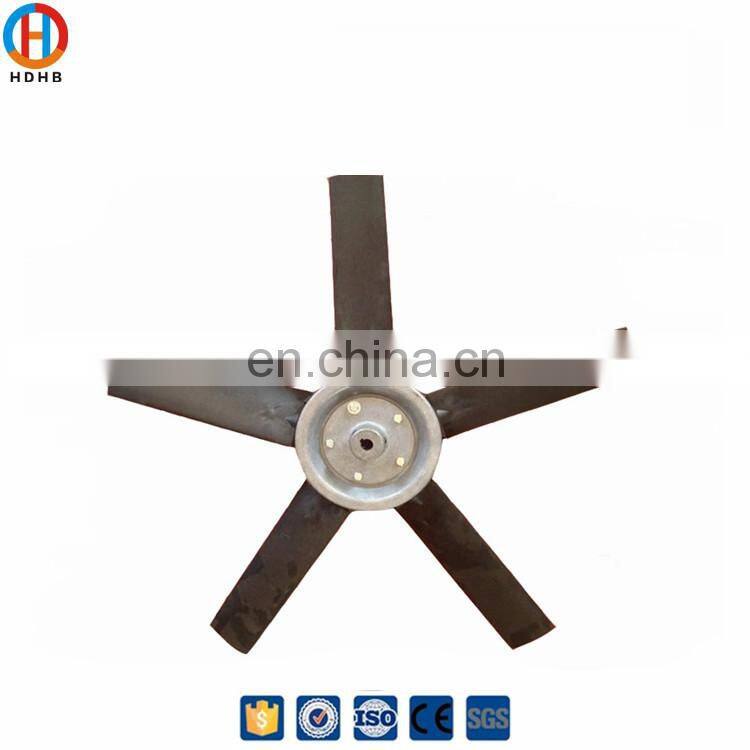

5.Types of the impeller:
The impellers of the ZHT-35 axial fan are divided into three types: Type I, type II, type III according to the blade angle curve and blade shape
6.Feartures:
1, Power supply: 380V 50 HZ, 3 phase. (110V-480V optional)
2, Shell &impeller material: FRP, mild Steel.
3, Type: Axial
4, Installation: In the wall, on the support frame, standby self, hang install.
5, Low noise, high efficiency, good price.
6, Anti-corrosion, anti-explosion
7.Technical Parameters :
No. |
Rotation speed RPM |
Air Volume M3/h |
Full press Pa |
Noise Db |
Power kw |
2.8 |
2900 |
2662 |
148 |
62 |
0.18 |
1450 |
1331 |
37 |
54 |
0.025 |
|
3.15 |
2900 |
3790 |
188 |
67 |
0.370 |
1450 |
1895 |
47 |
55 |
0.040 |
|
3.55 |
2900 |
5424 |
240 |
70 |
0.550 |
1450 |
2712 |
60 |
56 |
0.090 |
|
4 |
2900 |
7758 |
304 |
74 |
1.1 |
1450 |
3879 |
76 |
61 |
0.180 |
|
4.5 |
1450 |
5524 |
96 |
63 |
0.250 |
5 |
1450 |
7577 |
119 |
67 |
0.370 |
960 |
5104 |
47 |
63 |
0.180 |
|
5.6 |
1450 |
10645 |
149 |
69 |
0.750 |
960 |
7171 |
59 |
64 |
0.370 |
|
6.3 |
1450 |
15157 |
189 |
72 |
1.5 |
960 |
10210 |
75 |
64 |
0.370 |
|
7.1 |
1450 |
21695 |
240 |
76 |
2.2 |
960 |
14614 |
95 |
67 |
0.75 |
|
8.0 |
1450 |
31035 |
305 |
80 |
4.0 |
960 |
20906 |
120 |
70 |
1.1 |
|
9.0 |
960 |
29767 |
152 |
74 |
2.2 |
10.0 |
960 |
40832 |
188 |
78 |
4.0 |
11.2 |
960 |
57366 |
236 |
81 |
5.5 |
Shandong Handun Environmental Technology Co., Ltd is a leading international business company in China, mainly designs and manufacturers Centrifugal fan, Axial flow fan, Boiler induced draft fan and other Ventilation equipment and parts. Also customize fans water tank and cooling tower as requirements. Which are applied to industrial systems such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.
Main products : Centrifugal fan, Axial flow fan, Boiler induced draft blower and Industrial fans and parts, water tank and cooling tower
4. Widely used in these places
1). Ware house ventilation ;
2). Factories and workshops (such as paper mill, galvanized products producing factories,
painting factories);
3). Garage and other buildings which need air ventilate.
