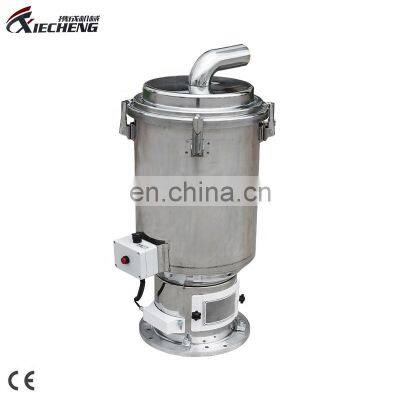

Vacuum Hopper Auto Loader With 7.5HP
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1991
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
200kg Per Hour Full Automatic Gravimetric Mixing Machine Weigh Scale Gravimetric Batch BlenderNegotiableMOQ: 1 -
High Speed Vertical Plastic Blender Plastic Gravimetric MixerNegotiableMOQ: 1
-
New Design PLC Controller Industrial Masterbatch Plastic Volumetric DoserNegotiableMOQ: 1
-
100 Ton Counter Flowing Cooling Machine Price FRP Cooling TowerNegotiableMOQ: 1
-
Hot Stainless 50KG Plastic Raw Material Vertical Mixing Plastic Pellet Color Mixer MachineNegotiableMOQ: 1
Product Description

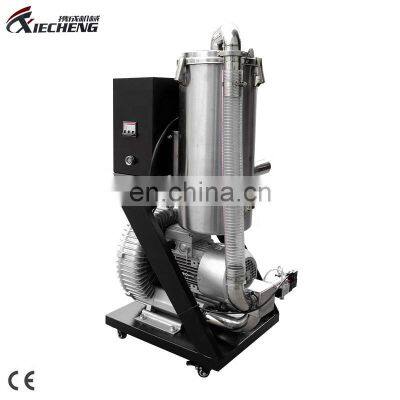

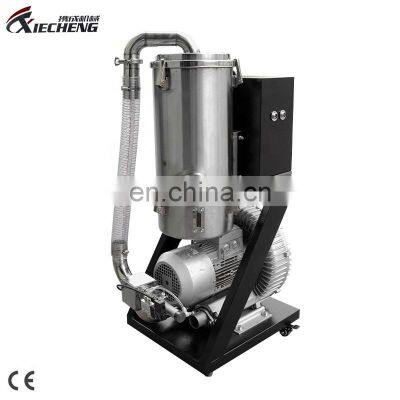

Separate-Vacuum Hopper Loader
It is specially developed for the situation of large amount of materials conveying, long conveying distance and crushed materials and powder. High-power motor with enlarged hose and hopper.
Product Specifications
Model |
XCAL-1.5HP |
XCAL-3HP |
XCAL-5HP |
XCAL-7.5HP |
XCAL-10HP |
||||
Motor |
1.5 /1.1 |
3/2.2 |
5/3.75 |
7.5/5.5 |
10/7.5 |
||||
Conveying Capacity (kg/hr) |
450 |
590 |
820 |
1000 |
1300 |
||||
Loading Distance (m) |
5 |
5 |
5 |
6 |
6 |
||||
Static Wind Pressure (mm/H2O) |
2800 |
2800 |
3200 |
4200 |
4500 |
||||
Storage Tank Capacity (L) |
7.5 |
12 |
24 |
30 |
30 |
||||
Conveying Tube Inner |
φ38 |
φ51 |
φ51 |
φ63 |
φ63 |
||||
Specification of the Attached Hoses |
φ38mm×4m 1pc |
φ51mm×10m 1pc |
φ51mm×10m 1pc |
φ63mm×12m 1pc |
φ63mm×12m 1pc |
||||
Dimensions (cm) |
Host |
50x42x109 |
69x52x144 |
||||||
hopper |
38x28x45 |
43x33x58 |
43x33x69 |
43x33x83 |
43x33x83 |
||||
Weight (kg) |
Host |
65 |
68 |
90 |
135 |
140 |
|||
hopper |
6 |
6 |
10 |
12 |
12 |
||||
If you want more sizes, please contact us for details
Product Details
01 LCD Controller
▪ Industry leading LCD microcomputer controller with adjustable parameters, intuitive display and convenient operation;
▪ Optional RS485 communication function to realize. remote automatic management.
02 Siemens Electric
SIEMENS electrical parts ensures stable running and liability of the machine.

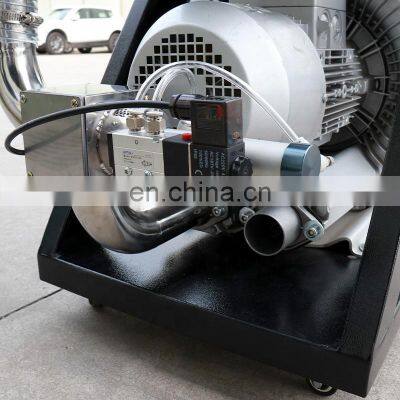

Adopt induction high-pressure motor, which has the function of reversing and automatically removing dust, with low noise and long life.
Unique cyclone barrel and large dust isolation and collection system adopt advanced design, easy and fast to maintain.
Stainless steel hopper, to ensure that the raw materials are not polluted during transportation.
≥ 5HP equipped with vacuum breaking valve as standard to prevent frequent start , stop or prolong the service life of the motor.
