Product Details
Brand Name: | VOLKE | Place of Origin: | China | Model Number: | PXW |
Product Description

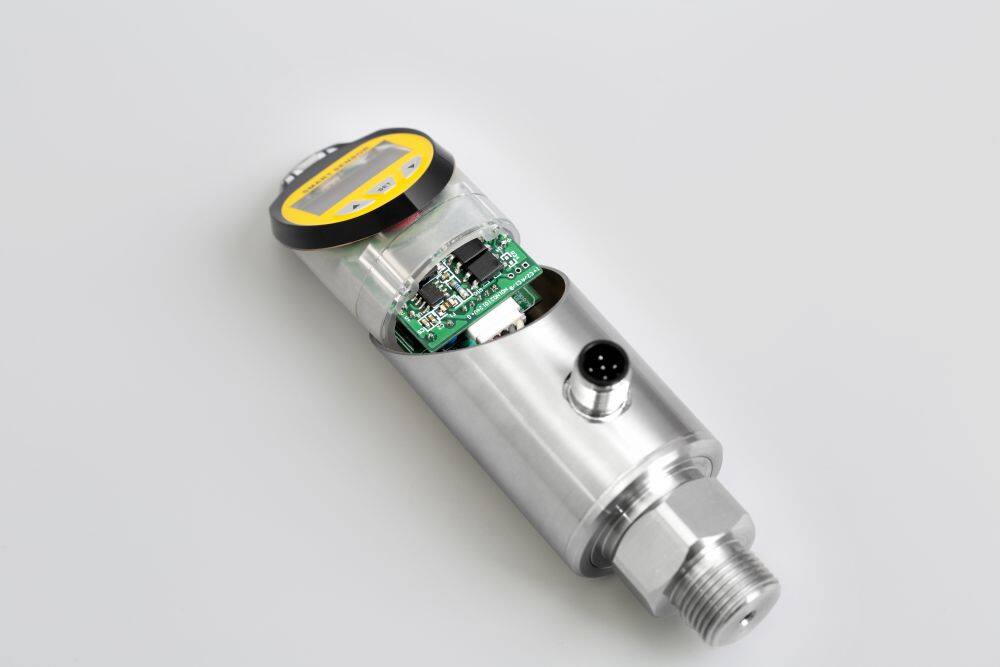

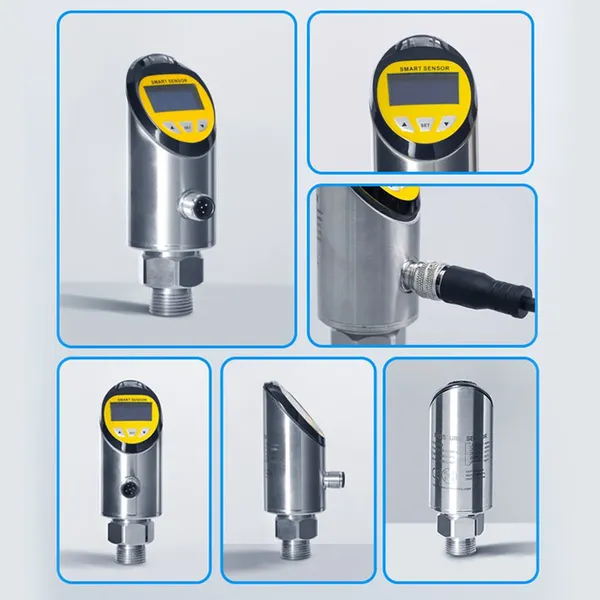

Pxw intelligent pressure transmission controller
Easy to install, OLED display meter. It is applicable to the measurement of gauge pressure, absolute pressure and negative pressure of gas and liquid media and the same measurement of temperature. It is widely used in pressure measurement in petroleum, chemical industry, metallurgy, electric power, hydrology and other industries.
Pxw intelligent pressure transmission controller features:
1. Self luminous OLED; The display is clear and sharp
2. High precision pressure core; Good stability and long service life
3. Chinese + graphical interface; Fool menu
4. Digital communication; Analog integrated
5. Temperature self compensation; Wider adaptation
6. Double alarm contact output
7. Damping design; Strong impact resistance
8. Ceramic or stainless steel pressure sensing element; Good corrosion resistance and high protection grade
9. Mobile phone code scanning installation guidance function; Online engineer professional service without instructions
Main technical parameters:
Range: - 0.1 0~60MPa (Max)
Working voltage: 18 ~ 36VDC
Output signal: 4 ~ 20mA, 485 communication
Output contact: 2
Interface mode: thread G1 / 4, G1 / 2, m20x1 five
Accuracy grade: 0.1, 0.2, 0.5
Temperature influence: ± 0.07% FS / 10 ℃
Stability: ± 0.10% FS / year
Display: OLED display
Overvoltage capacity: 1.25 times of the measuring range
Insulation impedance: 100M Ω at 100VDC
Load impedance:<500 Ω
Shell material: 304 stainless steel
Medium temperature: - 20 ℃ ~ 85 ℃
Protection grade: IP67
