Home > Electrical & Electronics > Antenna > Communication Antenna > MT-3502 3m Grease Filled 25 Pairs Terminal Block Super-mini Straight Splicing Module

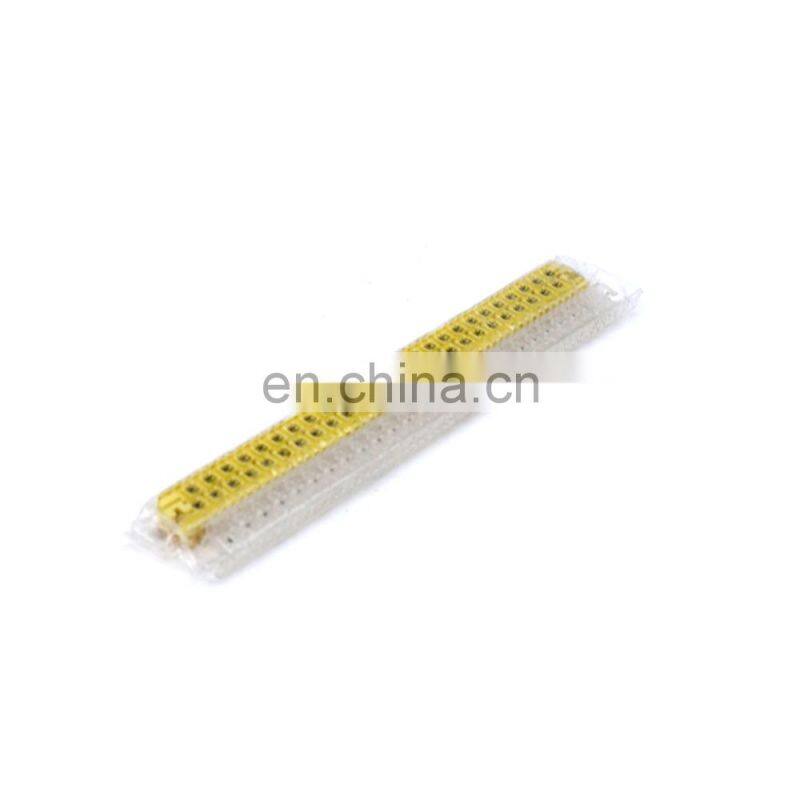

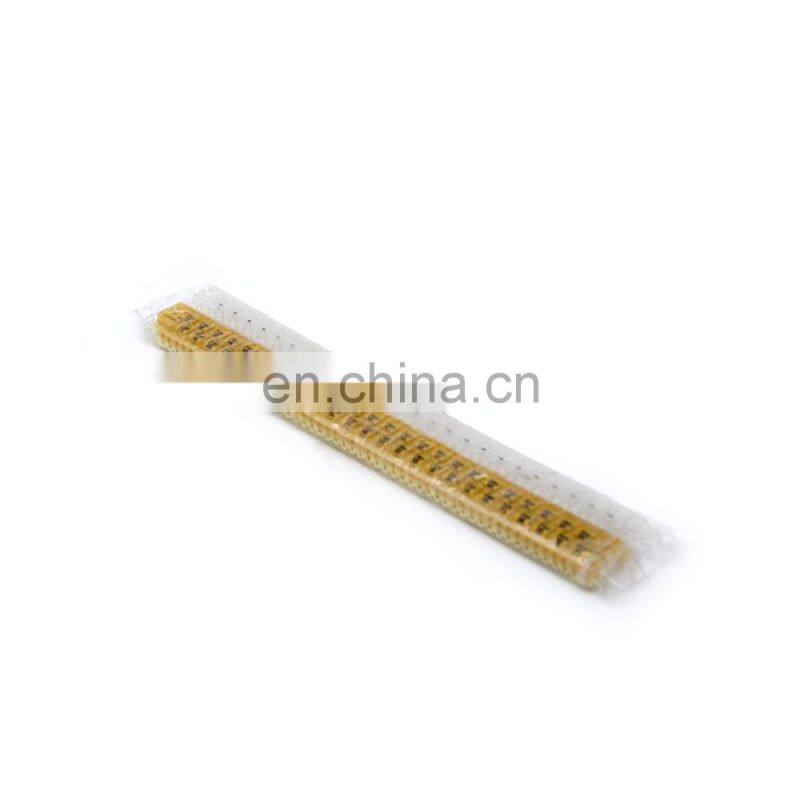

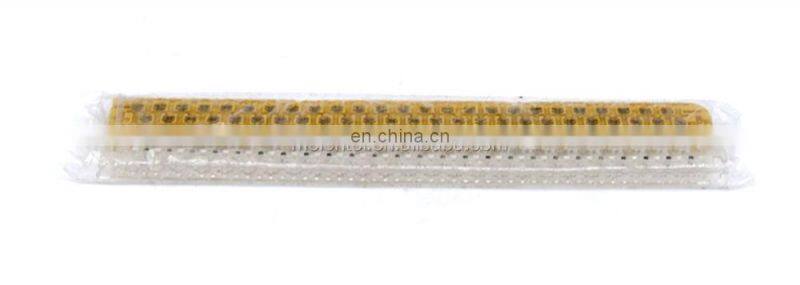

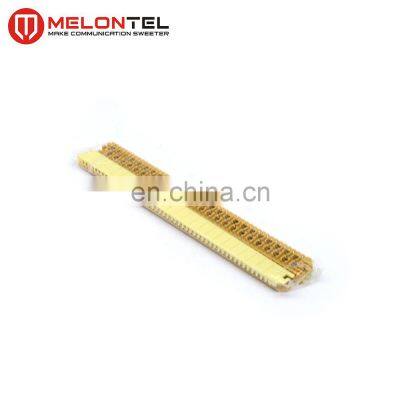

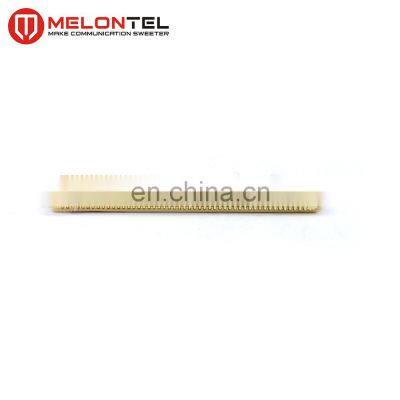

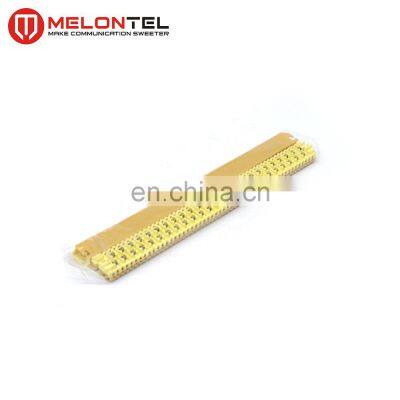

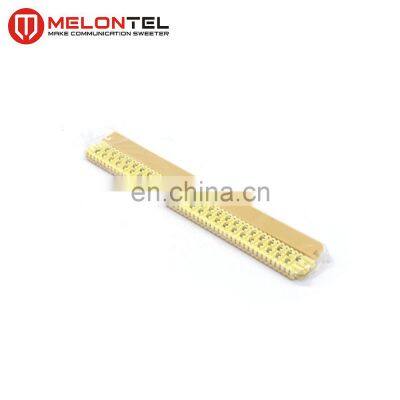

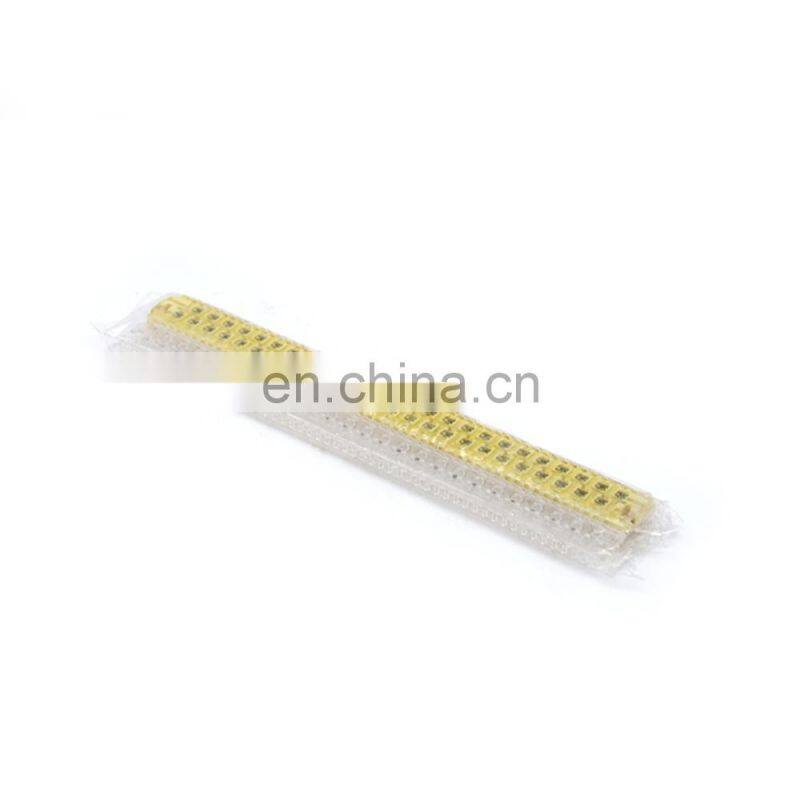

MT-3502 3m Grease Filled 25 Pairs Terminal Block Super-mini Straight Splicing Module
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2014
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MT-3501 3M Standard 10 Pair 3M 4005 Dry Super Mini Splicing Straight Connector ModuleNegotiableMOQ: 1 -
MT-5405 Cat5E Cat6 Rj45 Adapter Female to Female Coupler ConnectorNegotiableMOQ: 1
-
Krone ModuleNegotiableMOQ: 1
-
MT-2001-D 10-pair Module Telephone LSA-PLUS Module With Iron ReedNegotiableMOQ: 1
-
MT-2152 6907 2 501-00 Banana Clip Test Cord for Krone 4 Pole Test Cable With Banana Clip TypeNegotiableMOQ: 1
|
Name : |
25 Pair Distribution Box |
|
Country of origin : |
Ningbo,China |
|
Materia : |
Plastic |
|
Color : |
Yellow |
|
Capacity : |
25 Pair |
|
Length : |
165mm |
|
Weight : |
30g |
Technique Characteristics:
25-pair Communication Cable Connecting Module is used to connect 28-20AWG all plastic communication cables (diameter 0.32 « 0.80mm) through direct connection, bridge connection and multiple connection. It is widely used in communication circuit.
25-pair Communication Cable Connecting Module is used to connect 28-20AWG all plastic communication cables (diameter 0.32 « 0.80mm) through direct connection, bridge connection and multiple connection. It is widely used in communication circuit.
1. The contact is designed into tuning fork type and sheet joint so that connection will not be hampered.
2.irect connection, bridge connection and multiple connection can all be adopted. You do not bother to peel the protection coat and just use simple tool to have one time forming. The contact is sealed with organosilicon grease, proof against water and corrosion.
3.28-20AWG(diameter 0.32«0.80mm) insulative solid copper and all plastic communication cables can be connected.
4.Operating environment: Temperature: -30 --+70;Relative humidity: < 85%;Atmospheric pressure: 70 --106kpa
5.Insulation resistance: insulation resistance between any two terminals ≥1 x 104MΩ¸ (normal temperature and normal humidity)
6.ontact resistance: contact resistance between connection card and leading line ≤5 mΩ¸
7.Electric strength: exert 2000 V DC (or AC 1400V) voltage between metal lead and insulative cover of the connected module, no damage to the module and no spark breakdown within 1 min.
