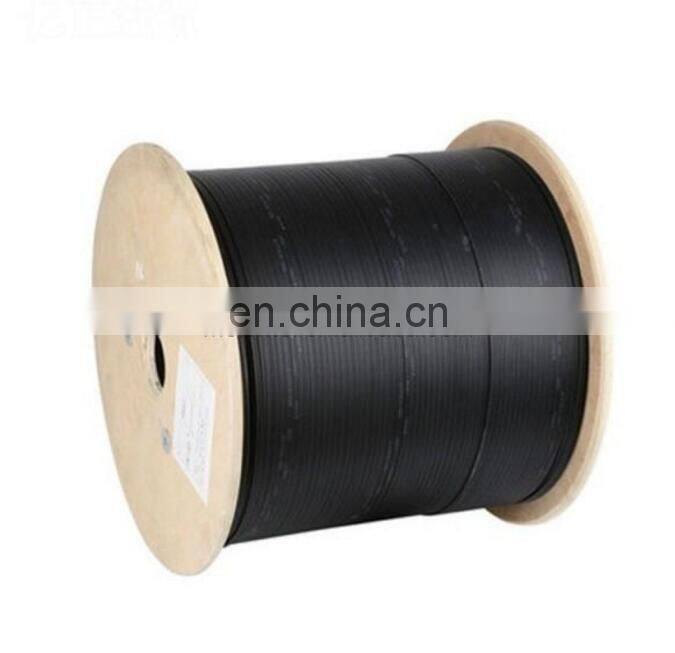

Help CenterMT-1091-1 G652D G657A1 G657A2 FTTH DROP Cable Outdoor 2 Core Ftth Drop Cable
Related Products
-
MT-0101 2 Pair Telephone Cable Jumper Wire 0.5mm Patch Cord Without Connector CopperNegotiableMOQ: 1 -
MT-11014 Factory Price GJBFJH Indoor SM Fiber Optical Cable Branch Optical CableNegotiableMOQ: 1
-
MT-11013 Factory Price GJBFJH Indoor SM Fiber Optical Cable Branch Optical CableNegotiableMOQ: 1
-
MT-11012 Factory Price GYFHKV Outdoor Fiber Optical Cable FTTA Armored Optical Cable Field Optical CableNegotiableMOQ: 1
-
MT-11011 Factory Price GJSFJV Outdoor Branch Fiber Optical Cable Armored Optical Cable MM OM3 OM4 10G Optical CableNegotiableMOQ: 1
Quick Details
|
Place of Origin: |
Zhejiang,China |
|
Brand Name: |
OEM |
|
Model Number: |
MT-1091-1 |
|
Product name: |
GJYXCH |
|
fiber optical core: |
G652D, G657A1, G657A2 |
|
Fiber Type: |
SM single mode/ MM multi mode |
|
Jacket sheath: |
PVC, LSZH, PE |
|
Certificate: |
ISO9001/CE/ROHS |
Description
The optical ber unit is positioned in the centre. Two parallel Fiber Reinforced (Steel Wire) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.
Characteristics
Special low-bend-sensitivity ber provides high bandwidth and excellent communication transmission property.
Two parallel steel wire strength members ensure good performance of crush resistance to protect the ber.
Single steel wire as the additional strength member ensure good performance of tensile strength.
Simple structure, light weight and high practicability.
Novel _x0019_ute design, easily strip and splice, simplify the installation and maintenance.
Low smoke, zero halogen and _x0019_ame retardant sheath.
Technical Parameters
Fiber optic patch cord is one of most commonly used components in fiber optic network. Fiber optic patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. Generally there are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic patch cords. Here the word mode means the transmitting mode of the fiber optic light in the fiber optic cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket color, multimode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.

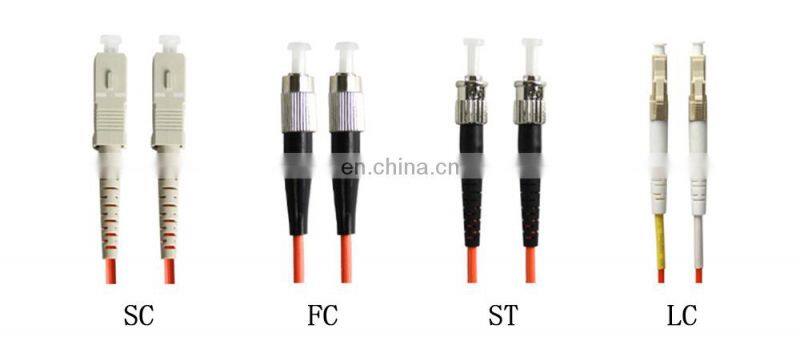

Fiber optic patch cord are used for linking the equipment and components in the fiber optic network, they are with various kinds of fiber optic connector types. The fiber optic patch cord types are classified by the fiber optic connector types, for example, we name FC fiber optic patch cord because this cable is with FC fiber optic connectors. There are also E2000 fiber optic patch cord, SC fiber optic patch cord, ST fiber optic patch cord, LC fiber optic jumper, MU fiber optic jumper, MTRJ fiber optic jumper, SMA fiber optic jumper, MPO fiber patch cable, DIN fiber patch cable, FDDI fiber patch cable, etc; there are PC, UPC, fiber patch cord, they are different because of the polish of fiber connectors.
Fiber optic patch cord are with various kinds of cables, PVC, Riser, Plenum, OFNR, OFNP, LSZH (LSOH), 10 Gig Aqua, there are simplex fiber optic patch cord and duplex fiber optic patch cord and multi fiber cable assemblies, and there are ribbon fan out fiber cable assemblies and bundle fiber optic cable assemblies. Typical fiber optic patch cord cable diameter can be 0.9mm, 2mm, or 3mm.
Each cable has strain relief boots to prolong and maintain performance levels of the assembly, transmit and receive legs of each duplex cable are identified by means of ring type cable marker fixed to each end the assembly. A short distance from these identification rings heat shrink is applied to maintain an easy to manage bonded two fibre cable, finally a label containing a unique batch number is fixed to the center of cable for quality and traceability purpose.
