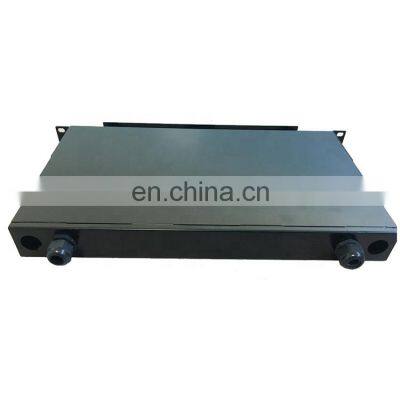

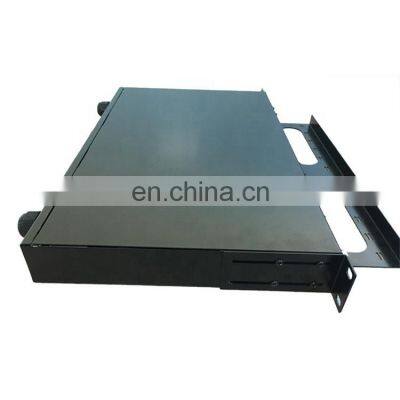

Hanxin Standard 19" Cabinet 12port Odf Distribution Splice Box 12 Port Patch Panel With Compatible ST SC FC LC MTRJ and MPO/MTP
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2010
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hanxin 19\" Hot-dip Galvanized Steel Sheet PC ABC12 Port Odf Patch Panel Distribution Box Metal 12-port ST Splice BoxNegotiableMOQ: 1 -
ST SC LC Connector OEM FTTH 12 24 48 Port Odf Patch Panel ManufacturerNegotiableMOQ: 1
-
OEM FTTH 12 24 48 96 144 Port Fiber Optic Rj45 Pvc Patch Panel/ODFNegotiableMOQ: 1
-
12 Core SC Fiber Optic Oman Cables Sliding ODF/Patch Panel With Pvc Patch Rj45 ConnectorNegotiableMOQ: 1
-
Fiber Optic Oman Cables Distribution Frame ST SC LC Pvc Connector 24 Port Rj45 Odf Patch Panel ManufacturerNegotiableMOQ: 1
Hanxin Standard 19" Cabinet 12port Odf Distribution Splice Box 12 Port Patch Panel With Compatible ST SC FC LC MTRJ and MPO/MTP
Product Description
| Product information | |
| Measurement | 480*340*45mm |
| Packing Size | 500*360*65mm |
| Weight | 3KG |
| Sheet thickness | 1.0mm |
| Material | Hot-dip galvanized steel sheet/PC+ABS |
| adapter | LC up to 72fibers;SC up to 36fibers;FC up to 24fibers |

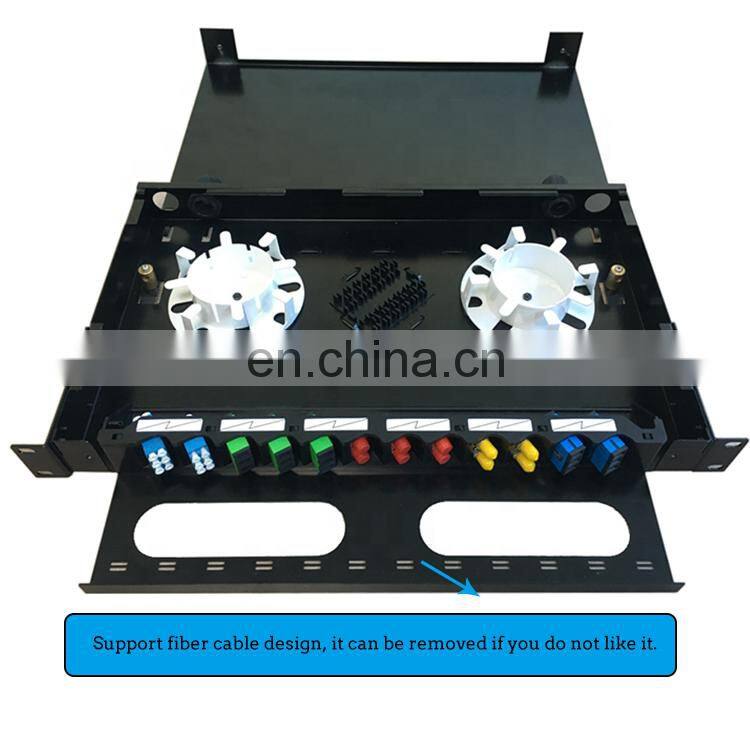

The 12 port universal type optical fiber box can realize the functions of the termination, fusion of the optical cable, the fixing and grounding of the optical cable, as well as the protection of the optical core and pigtail. It can be installed in a standard 19” cabinet. Compatible with the flexible loading and unloading of various adapters such as ST, SC, FC, LC, MTRJ and MPO/MTP. It provides fiber splicing and distribution function inside, and sufficient fiber winding space to ensure the bending of the optical cable. Product structure Simple and easy to use.Features/ PRODUCT
- The cabinet adopts flat/fine sand grain baking varnish process, with bright appearance and high-grade texture. Hot-dip galvanized steel plate can effectively prevent rust and mildew
- Texture: bright/frosted
- Color: black/white optional

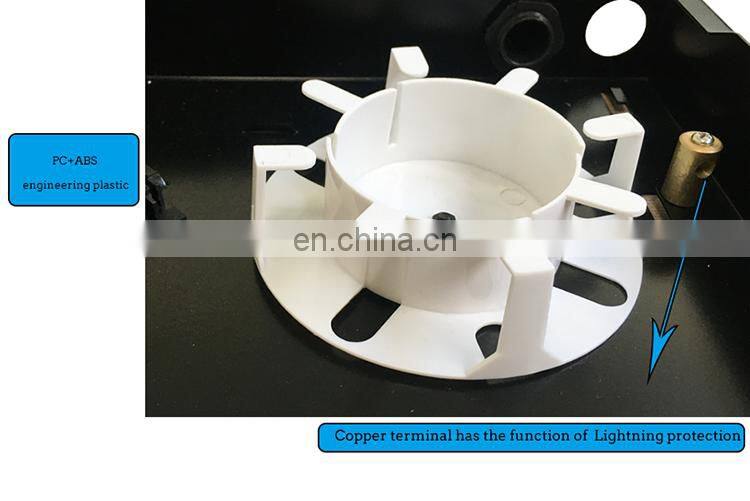

- The adapter strip module is made of PC+ABS plastic, with high strength and durabiilty
- Multiple adapters such as ST, SC, FC, LC, MTRJ and MPO/MTP can be installed according to requirements.

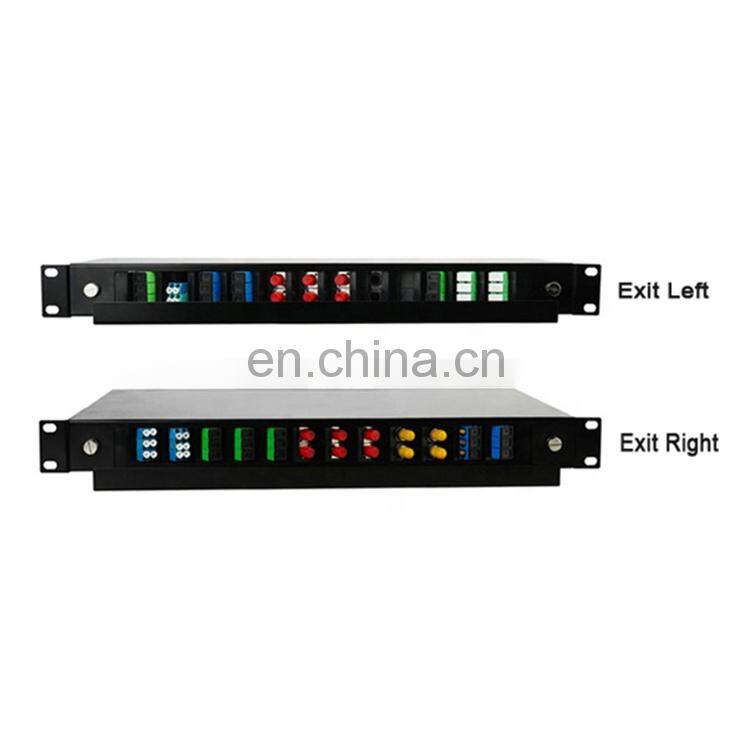

- The detachable adapter strip module can realize the fiber exit left or right.
Application/ PRODUCT
- Mainly used for the splicing and protection of fixed optical fibers, the management of cables and equipment connection
- Applicable for communication system, fiber to the home (FTTH), local area network, wide area network, cable television network and other system projects
