Hanxin GYFXTY Outdoor fiber optic cables Miniature central beam tube type gas blowing optical cable
Product description/ PRODUCT
The fibers,250um are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene(PE) sheath.

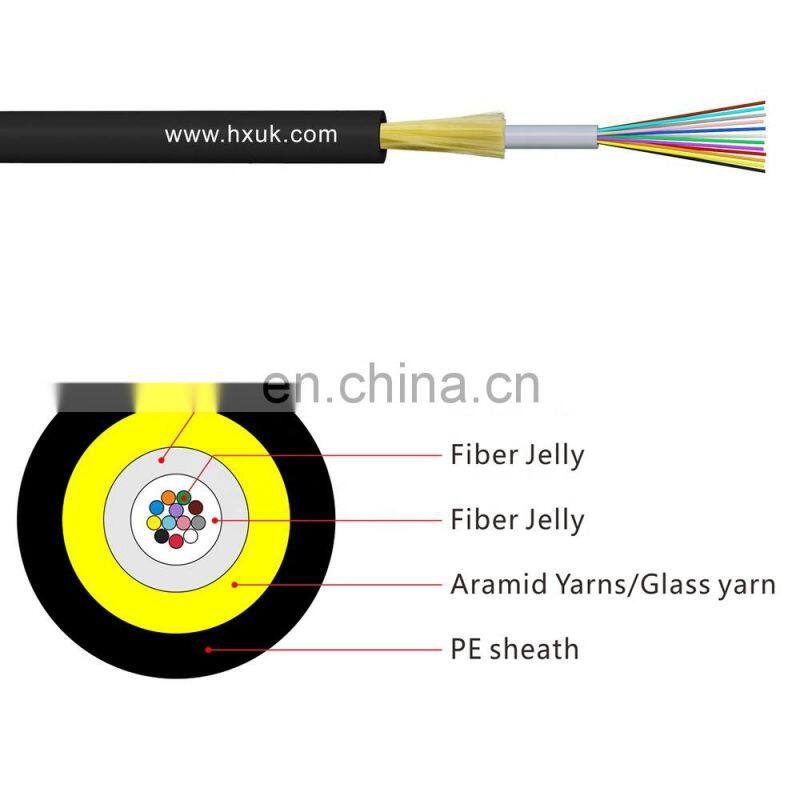

Product Picture/ PRODUCT
Product Features / PRODUCT
·Non metallic structures are designed to prevent RF interference and electromagnetic interference.
·Specially designed compact cable structure to effectively prevent casing retraction.
·Aramid fiber reinforced components to make the fiber optic cable has excellent tensile properties
·tube filling compound ensure fully waterproof cable.
·Good resistance and flexibility.
·Optical fiber assembly of high density, small cable diameter, light weight, suitable for indoor, equipment, several space narrow place wiring, and suitable for gas blowing.
Product Application/ PRODUCT
·Using microtubule resources, especially for the backbone network, access network and fiber to the home.
Product Standards/ PRODUCT
·GYFXY cable complies with Standard YD/T 769-2003.
Optical Properties/ PRODUCT
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
attenuation (+20℃) |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
|
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwith (Class A) |
@850 |
|
|
≥500MHZ·km |
≥200MHZ·km |
|
@1300 |
|
|
≥1000MHZ·km |
≥600MHZ·km |
|
|
numerical aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Optical fiber cut off wavelength |
|
≤1260nm |
≤1480nm |
|
|
Structure Parameter/ PRODUCT
|
|
|
|
|
|
|
|
|
JET2~12 |
2~12 |
3.0±0.3 |
8 |
60/150 |
100/300 |
15D/30D |
|
JET14~24 |
14~24 |
3.5±0.3 |
15 |
60/150 |
100/300 |
15D/30D |
Storage and use temperature:-40℃ to +70℃
