Net work FTTH drop cable cable standards 1km price for fiber patch and fiber optic tools
We are 22 years fiber optic cable manufactory!
Welcome to go to the factory tour!
We focus on the quality of the fiber optic cable!
Send message to us can get free samples.
| G652D | G655 | 50/125μm | 62.5/125μm | ||
| Attenuation(+20deg C) | @850nm | ≤ 3.0dB/KM | ≤ 3.0 dB/KM | ||
| @1300nm | ≤ 1.0dB/KM | ≤ 1.0 dB/KM | |||
| @1310nm | ≤ 0.36 dB/KM | -- | |||
| @1550nm | ≤ 0.22 dB/KM | ≤0.23dB/km | |||
| Bandwidth(Class A) | @850nm | ≥ 500 MHz-KM | ≥200 MHz-KM | ||
| @1300nm | ≥1000 MHz-KM | ≥600 MHz-KM | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ||||
Standards:
Cable complies with Standard YD/T 769-2003.
Storage/Operating Temperature: -40°C to + 70°C
Description

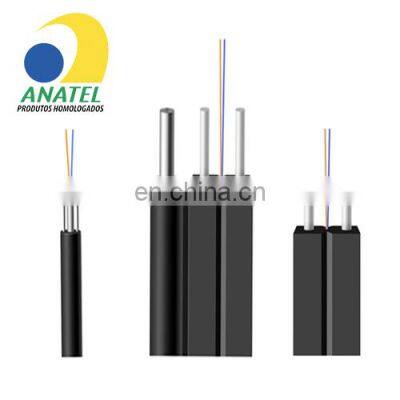

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wires are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.
Optical Characteristics
1.Special low-bend-sensitivity fiber provides high bandwidth and excellent
communication transmission property;
2.Simple structure, light weight and high practicability;
3.Novel flute design, easily strip and splice, simplify the installation and maintenance;
4.Low smoke, zero halogen and flame retardant sheath.
GYXTW GYTS JET
GYXTC8Y GYXTC8S GJFJC8ZY
1.Are you the real manufacturer?
-Yes. We are the real manufacturer with more than 560 staff.
2.How many years have you been in the field of fiber optics ?
-Since 1999.
3.Can you accept small order?
- Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
-25 years for fiber optic cable
5.Which kind of certification you have ?
-ISO9001, SGS, RoHs.
6.What is your delivery time?
-Usually within 2-3 working days
7.What about your annual production capacity?
-Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8.What is your payment way?
-T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
