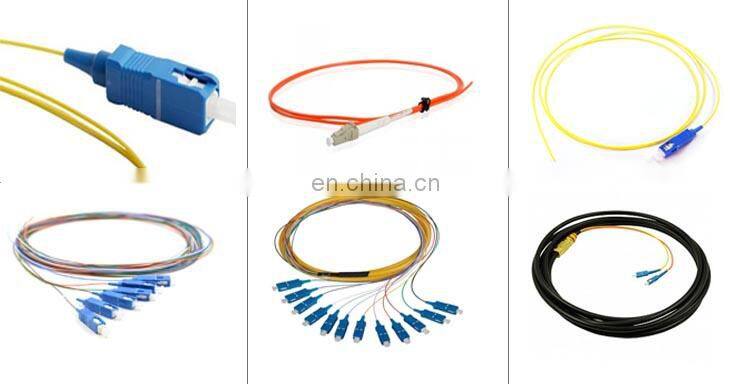

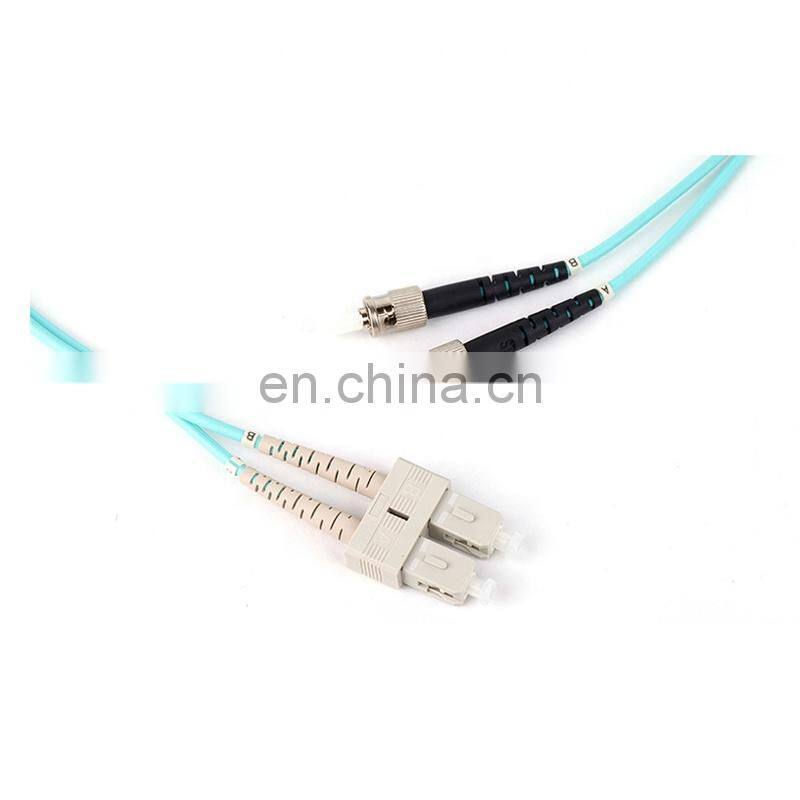

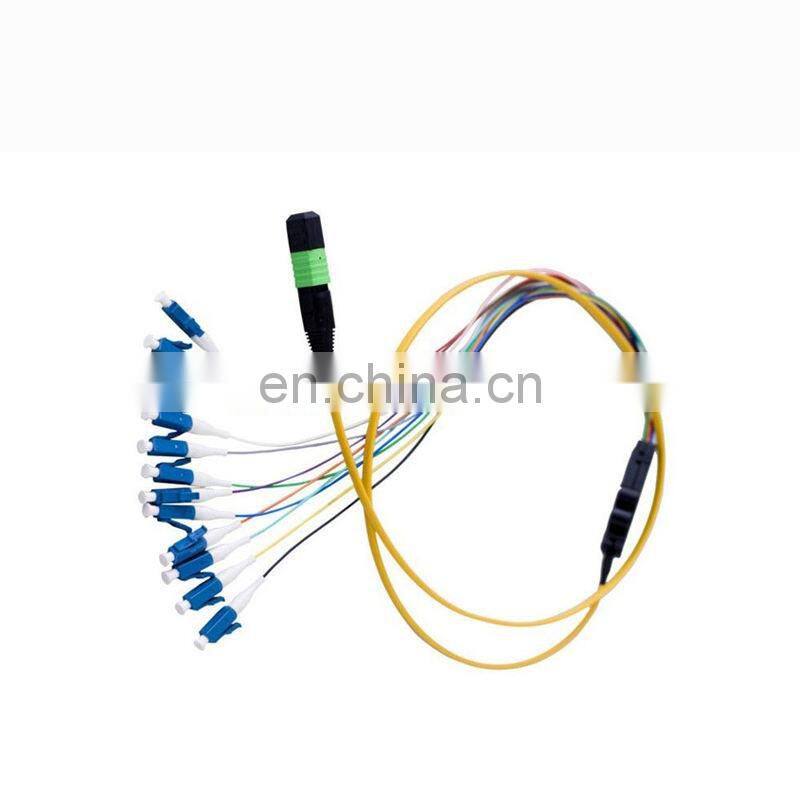

fc sc lc st simplex/duplex fc pigtail mm Fiber optic patch cord
We are 22 years fiber optic cable manufactory!

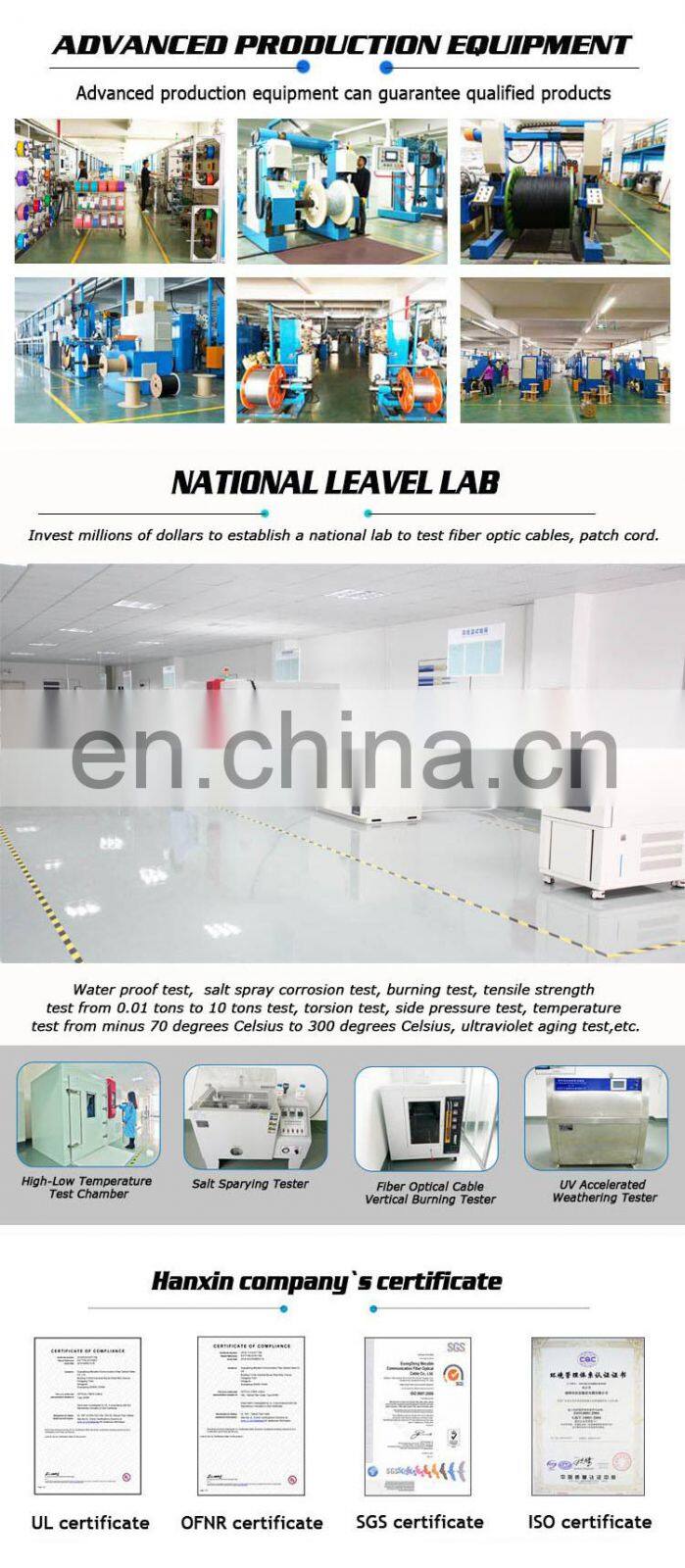

Welcome to go to the factory tour!
We focus on the quality of the fiber optic cable!
Send message to us can get free samples.
| G652D | G655 | 50/125μm | 62.5/125μm | ||
|
Attenuation (+20deg C) |
@850nm | ≤ 3.0dB/KM | ≤ 3.0 dB/KM | ||
| @1300nm | ≤ 1.0dB/KM | ≤ 1.0 dB/KM | |||
| @1310nm | ≤ 0.36 dB/KM | -- | |||
| @1550nm | ≤ 0.22 dB/KM | ≤0.23dB/km | |||
| Bandwidth(Class A) | @850nm | ≥ 500 MHz-KM | ≥200 MHz-KM | ||
| @1300nm | ≥1000 MHz-KM | ≥600 MHz-KM | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ||||
Standards:
Cable complies with Standard YD/T 769-2003.
Storage/Operating Temperature: -40°C to + 70°C
Description:

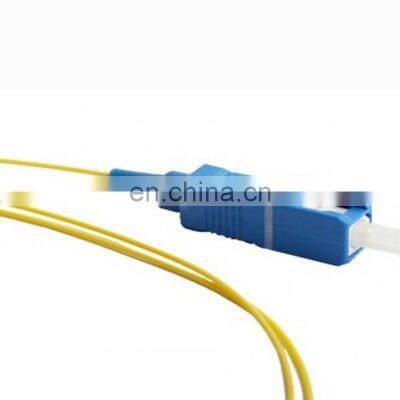

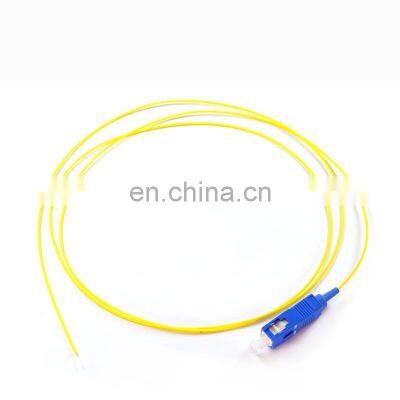

Fiber optic pigtail is a piece of optical cable with connectors only on one side of the cable; it is as simple as that. Fiber pigtails types are dependent on the connector types and the fiber optic cable. Usually the fiber optic pigtail is with 0.9mm outer diameter cable. Pigtails are usually used inside the fiber optic management equipment, the connectors on the pigtail can link to the adapter or other devices, the other end of the pigtail which does not contain the connectors, is used to link bare fiber via fusion splicing.
Description:
- Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
- Ferrule End-face: PC, UPC, APC
- Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
- Cable Quantity: Simplex, duplex or customized
- Cable Diameter: 3.0mm, 2.0mm, 0.9mm
- Cable Length: 1, 2, 3 meter or customized
- Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
Features:
- Choice of fiber types
- Choice of buffering material and stripping options
- Robust 900μm secondary coated fibers for ease of termination
- Standard white buffer color
- Also avaliable in 12 standard colors on request
GYXTW GYTS FTTH indoor cable
GYXTC8S FTTH patch cord GJFVSV
1.Are you the real manufacturer?
Yes. We are the real manufacturer since 1999.
2.What is your fiber brand?
Imported or Chinese brand
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001, SGS, RoHs. ANTEL, CPR
6.What is your delivery time?
Usually within 2-3 working days
7.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 9,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8.What is your payment way?
T/T, L/C, D/P,MoneyGram,Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
