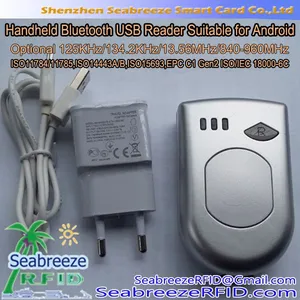

125KHz, 134.2KHz, 13.56MHz Handheld Bluetooth USB Port Read Write Device Suitable for Android

125KHz, 134.2KHz, 13.56MHz Handheld Bluetooth USB port Read Write Device Suitable for Android

Optional customization: 125KHz/134.2KHz/13.56MHz.

125KHz 134.2KHz 13.56MHz Handheld Bluetooth USB port Read Write Device Suitable for Android, 125KHz 134.2KHz 13.56MHz Handheld Bluetooth USB port Android Read Write Device, Handheld Bluetooth USB port Android Reader, Portable Bluetooth USB port Android Reader Suitable for Android, Portable ISO15693 Bluetooth USB port Android Reader Suitable for Android, Handheld ISO14443A/B Bluetooth USB port Android Reader Suitable for Android

125KHz/134.2KHz/13.56MHz Handheld Bluetooth RFID R/W device is used in reading RFID smart label(RFID tag) through radio frequency, and uses USB or Bluetooth (class 2.0) technology to transfer the card data to computer/PDA/smartphone/MID in a real time mode. It can reading LF 125KHz, 134.2KHz, HF 13.56MHz RFID smart tags. It is widely used in the industries of Animal identification and tracking management / Security / Patrol / Logistics / Electric power / Water supply / Mining / Oil / Finance and Railway system, etc.

Product features

1. Wireless connection. This product uses Bluetooth technology with the PDA or PC and other wireless connection, read RFID tags.

2. The card reading long distance.

3. Long standby time. Battery capacity is big, need not often change the battery or charge.

4. Charging ways is optional. Product display adapter charging are available, and can also use USB conversion line in the adapter charging through the USB port of your PC.

5. Small volume, light weight, easy to carry and use.

Areas of application:

Typical applications have power, oil, mining industry, security, logistics, finance, water supply, road transportation, railway transportation, enterprise management, animal tracking management, etc.

The power industry: because contain equipment such as power plants, power lines and substations are widely distributed, combined with the mobile terminal, for power plants, power lines, substations and other electrical equipment inspection management. Implementation of personnel in place regulation, quickly tap inspect equipment information.

The oil industry: Because the region are widely distributed, such as oil mining, processing and combining with the mobile terminal, realize the oil production, processing equipment such as inspection, maintenance and management. Implementation of personnel supervision, bring up the equipment information quickly.

Technical parameters

A. Product model: RBL-125

Frequency: 125KHz

Support card types: EM4100, EM4102, TK4100, TK4102 and compatible chip

Reader mode: active and passive type reader

Communication Interface: Wireless Bluetooth; USB

Operating voltage: 950mAh, DC3.7-4.2V (built-in rechargeable lithium battery)

Power consumption:<0.8w

Read Distance: Button type > 5cm, card > 15cm

Bluetooth Transmission Distance: 10-15m

Charging voltage: AC 110-240V, 50/60Hz

Antenna Connection: Built-in

Read Time: 0.1s

Bluetooth standard: Class 2

Communication baud rate: 9600bps

Humidity: 5%-90% relative

Operation temperature: -20℃~+65℃ (-4℉~+149℉)

Storage temprature: -25℃~+85℃ (-13℉~+185℉)

Size: 83×52×25.8mm

Weight: 98g

B. Product model: RBL-1342

Frequency: 134.2KHz

Support card types: TI enterprise or animal ISO 11785/ISO 11784, FDX-B read-only card

Reader mode: active and passive type reader

Communication Interface: Wireless Bluetooth; USB

Operating voltage: 950mAh, DC3.7-4.2V (built-in rechargeable lithium battery)

Power consumption:<0.8w

Reading Distance: 5cm〈 card〈 8cm

Bluetooth Transmission Distance: 10-15m

Charging voltage: AC 110-240V, 50/60Hz

Antenna Connection: Built-in

Read Time: 0.1s

Bluetooth standard: Class 2

Communication baud rate: 9600bps

Humidity: 5%-90% relative

Operation temperature: -20℃~+65℃ (-4℉~+149℉)

Storage temprature: -25℃~+85℃ (-13℉~+185℉)

Size: 83×52×25.8mm

Weight: 98g

C. Product model: RBH-1356

Frequency: 13.56MHz

Support card types: MF IC S50/S70, ULT, FM11RF08,etc.

Protocol standards: ISO15693，ISO14443 TypeA/B

Reader mode: active and passive type reader

Communication Interface: Wireless Bluetooth; USB

Operating voltage: 950mAh, DC3.7-4.2V (built-in rechargeable lithium battery)

Power consumption:<0.8w

Reading Distance: 5-10cm

Bluetooth Transmission Distance: 10-15m

Charging voltage: AC 110-240V, 50/60Hz

Antenna Connection: Built-in

Reading Time: 0.1s

Bluetooth standard: Class 2

Communication baud rate: 9600bps

Humidity: 5%-90% relative

Operation temperature: -20℃~+65℃ (-4℉~+149℉)

Storage temprature: -25℃~+85℃ (-13℉~+185℉)

Size: 83×52×25.8mm

Weight: 98g
