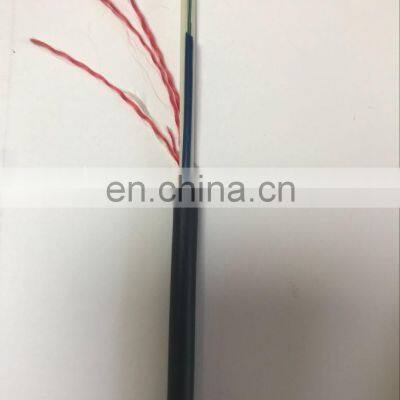

Hot Sell ASU80 RA Mini Span ADSS FRP Strength Member Fiber Optic Cable

CFOA-SM-ASU-80-S-12FO NR – 2KM

The cable CFOA-SM-ASU-80-S-12FO NR is recomended for cabling systems structured for voice, data and images traffic, with campus distribution, between buildings, which demands external optic interconnections. External aerial installations, direct launch between posts to 80m spans at maximum.

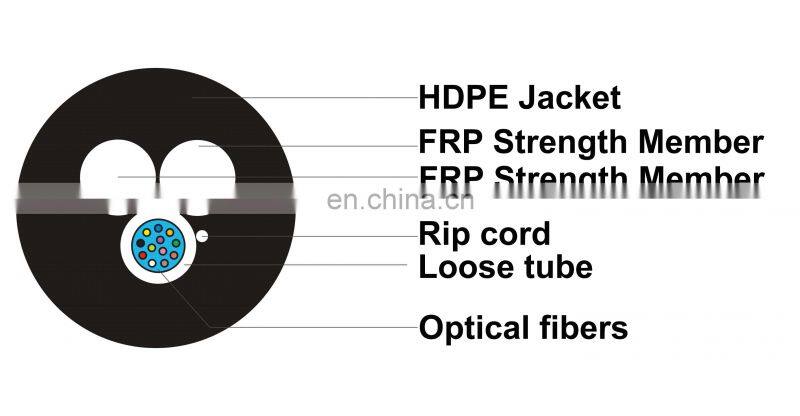

Characteristics:

- Transmission capacity at 1310nm and 1550nm;

- Cables for 80m spans at maximum;

- Optic fibers quantity: 12;

- Nominal external diameter (mm) 6.6+0.3;

- Nominal net weight (kg/km) 50+10;

- Totally dieletric cable;

- Single mode fiber G.652D.

Technical Data:

Attenuation

@1310nm - ≤0.36dB/km

@1550nm- ≤0.22dB/km

Mode Field Diameter

@1310nm - 9.3}0.5μm

@1550nm - 10.4}0.8μm

Dispersion

@1285-1330nm - ≤3.5ps/(nm.km)

@1525-1570nm - ≤18ps/(nm.km0

PMD: ≤ 0.15 ps.km1/2

Cable cutoff wavelengthλcc(nm): ≤1270nm

Zero-Dispersion wavelength: 1300nm~1324nm

Zero-Dispersion slope: ≤0.092ps/(nm2.km)

Cladding diameter: 125}1μm

Cladding non-circularity: ≤0.8%

Core/cladding concentricity error: ≤0.6μm

Proof Test: ≥0.7GPa (100kpsi)

Dynamic fatigue: ≥20

Point discontinuity: ≤0.05dB

Attenuation uniformity: ≤0.05dB/km
