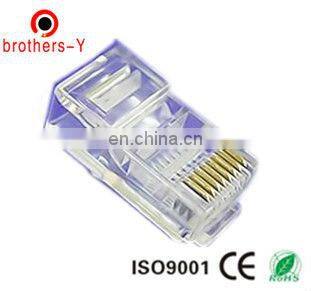

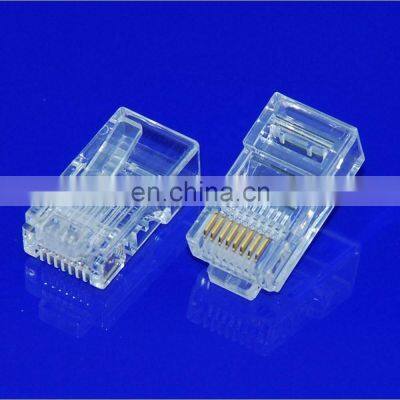

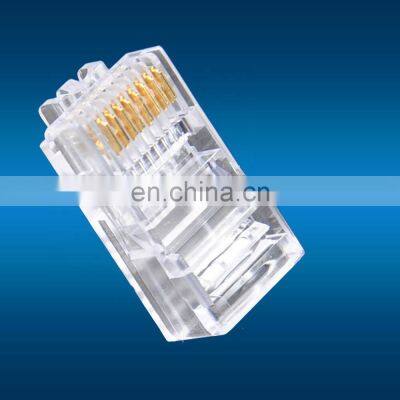

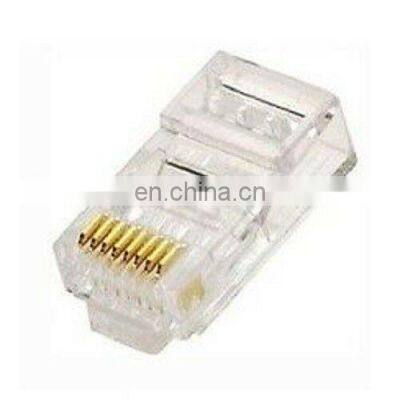

cat5e/cat6 RJ45 connector
shenzhen Brother Young Development Co., ltd was established in 2002 and is a professional designer and manufacturer of copper cable, coaxial cable and fiber cable. Our products include full sets of network accessories and all kinds of cables & network layout projects.
Features:
Complies with IEEE standards and all 10/100 Ethernet
specificatons including 350uH with 8mA DC bias
. Contact: Phosphor Bronze, 6u-inch gold flashed unless specified
. Single port shield RJ45 with single USB
. Housing: Thermoplastic PBT+30%GF UL94V0 rated
. Operating temperature:0oC to +70oC
. Storage temperature: -40oC to +85oC.
Electrical Specifications:
1. T urns Ratio:
TX & Rx= 1:1 5%
2. Insertion Loss:
@1~80MHz : -1.0dB Max
@ 100MHz:-1.5dB Max
3. Return Loss:
@1~30MHz : -20dB MinTX
@ 60~80MHz : -12dB Min
4. Common Mode Rejection:
@1~100MHz: -30dB Min
@200MHz: -20dB Min
5. Crosstalk:
@1~100MHz : -35dB Min
6. OCL:
@100KHz, 0.1V, 8mADC : 350uH Min
7. Hi-Pot : 1500VAC, 1mA, 60Sec
Lea
standard:
RJ45 Connector and our market has been expanded to Southeast Asia, Europe and North America.We are ISO9001 :2000
|
Specifications of PCB Jack Series |
||||
|
Temperature |
-40-70 oC |
Withstand Voltage |
AC1000V(50Hz)/min |
|
|
Rated load |
AC 125V1.5A |
Actuating Force |
5-15N |
|
|
Contact Resistance |
<0.03 |
Life |
750cycles |
|
|
Insulation Resistance |
>100 |
|
|
|
OEM is available, we can give you competitive price , high quality products and excellent service through our cooperation.
d-free process,compliant RoHS.
Certificates:
