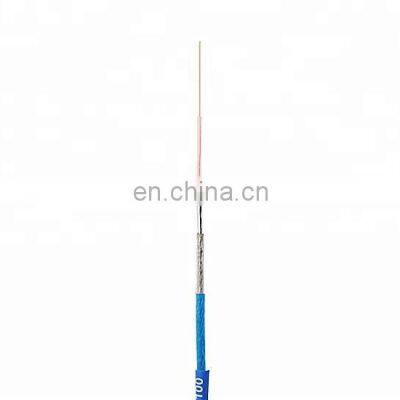

CU/CCS/CCA 50 Ohm Low Loss Quality Lmr100 Cable PE/PVC/LSZH Coaxial Cable
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
FLMR100
Construction
|
Item |
Material |
Diameter(mm) |
Remarks |
|
InnerConductor Insulation First Shield Second Shield Jacket |
Bare Copper Solid PE Al-Foil TC Braid WIRE PVC |
0.46 1.52 1.65 2.11 2.80 |
Per customer’s requirements: Out conductor could be 48,64,80 or 96 TC wires braiding; Jacket could be PVC,PE or LSZH; |
Electrical Characteristics
|
Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Screening Effectiveness(db) Voltage With Stand Installation Temp(℃) Operating Temp(℃) |
50±3 101.1 66.0 ≥20 ≥80 500.0 -30 to +80 -30 to +80 |
Attenuation (@200C)
|
Frequency(MHz) |
Max Attenuation(dB/100m) |
|
150 220 450 900 1500 1800 2000 2500 |
29.4 35.8 51.9 74.9 98.7 109.0 115.5 130.6 |
