Home > Products > Stainless Steel Pipe > High Pressure ASTM 316 316L 316Ti Thick Wall Stainless Steel Seamless Tube

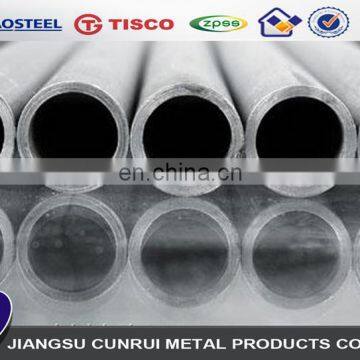

High Pressure ASTM 316 316L 316Ti Thick Wall Stainless Steel Seamless Tube

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

High Pressure ASTM 316 316L 316Ti Thick Wall Stainless Steel Seamless Tube

Product Name	High Pressure ASTM 316 316L 316Ti Thick Wall Stainless Steel Seamless Tube
Material	Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy
Shape	Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet
Grade	Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L
	Others: 253Ma,254SMo,654SMo,F50(UNS S32100)F60,F61,F65,1J22,N4,N6 etc
	Alloy : Alloy 20/28/31;
	Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g;
	Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617,Hastelloy C,Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602,Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665
	Haynes: Haynes 230/556/188;
	Inconel Series:
	Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20;
	Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851, Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816
	Incoloy: Incoloy 800/800H/800HT/825/925/926;
	GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044
	Monel: Monel 400/K500/R405
	Nitronic: Nitronic 40/50/60;
	Nimonic: Nimonic 75/80A/90/A263 ;
Specification	Wire: 0.01-10mm Strip: 0.055.0-5.0250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
Product Characteristics	1.According to the preparation process can be divided into deformation superalloys, casting superalloys and powder metallurgy superalloys. 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc..
Standard	GB,AISI,ASTM,DIN,EN,SUS,UNS etc
Inspection	ISO,SGS,BV and so on.
Application	High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines
Packaging	1. cases packed in wooden cases 2. paper packaging 3. plastic packing 4. foam packaging Packaging according to customer requirements or products
Delivery	7-25days orAccording to the product
Payment	L/C,D/A,D/P,T/T,Western Union,MoneyGram,According to customer requirements payments for offline orders.

Equivalent Grade :

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST
SS 316	S31600	1.4401 1.4436	Z7CND17 11 02	X5CrNiMo17122 X3CrNiMo17133	SUS 316	316S31 316S33
SS 316L	S31603	1.4404 1.4435	Z3CND17 11 02 Z3CND18 14 03	X2CrNiMo17 12 2 X2CrNiMo18 14 3	SUS 316L	316S11 316S13	03Ch17N14M3 / 03Ch17N14M2

Chemical Composition :

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 316	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	16.00 - 18.00	2.00 - 3.00	11.00 - 14.00	67.845 min
SS 316L	0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	16.00 - 18.00	2.00 - 3.00	10.00 - 14.00	68.89 min

Mechanical Properties :

Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
SS 316	8.0 g/cm3	1400 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %
SS 316L	8.0 g/cm3	1399 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %
