GR5 GR1 GR2 GR7 titanium Castings titanium fittings

Baoji FIRST Titanium industry (Group) Co.LTD is a high-tech enterprise focusing on research and development of Titanium Bar. We produce our products and cooperate closely and steadily with well-known research institutions, universities, national laboratories and innovative corporate giants in nanomaterials research and development. We are committed to provide the highest quality products with the most reasonable price for our customers who are doing nanotech research and have formed a complete cycle of researching, manufacturing, marketing and after-sale servicing. Our products have been sold to many countries around the world.

Baoji Firstti Titanium industry Group Co.LTD has built a smelting, forging and machining production line for titanium and titanium alloy and other non-ferrous metals, with an annual capacity of 2,000 tons of casting, 30,000 tons of forging and pressing and 6,000 tons of mechanical processing capacity. It can produce more than 50 kinds of titanium and titanium alloy products in three categories: titanium, titanium products and titanium equipment, mainly including:  Ingot, bar, block, cake, ring, tube, plate, silk, different forgings, standard parts and tungsten, molybdenum, tantalum, niobium, pick, nickel, hafnium and other rare metal products.

The company has passed and implemented ISO9001 quality system certification, AS9100 aerospace system certification, GJB9001 military industry system certification and PED pressure equipment certification, all production equipment and physical and chemical inspection equipment is excellent and reliable, mature technology, product quality is qualified and stable,  Fully meet GB/T (national standard), GJB (national military standard), ISO (International Organization for Standardization standard) HB (navigation standard), ASTM (American standard), AMS (American standard), MIL (American standard), ROCR (Russian standard), JIS (Japanese standard), DIN (German standard), and other standards and aviation, aerospace, navigation, military, medical, chemical, etc  The industry and international market demand for titanium, products exported to the United States, Britain, Russia, Germany, Italy, Japan and other developed countries, the annual output value of over 800 million yuan.

Titanium cake、 titanium  ring& titanium forgings ASTM B381:

Product name:Titanium cake 、titanium ring &titanium forgings

Texture:GR1、 GR2、  GR7 、GR12 、GR5 、Ti-811 etc

Executive standard：ASTM B381

Processing process: melting - flaw detection - forging - annealing - car light - flaw detection

Perform test standard:

1.    The chamfering radius of cake and ring material should not be greater than 10mm

2.    Each batch dissected one piece or raised 15mm sample ring, reported chordwise measured value.  In this case, the words "measured in chord direction" should be indicated in the contract.

3.    Cracks, folds, pores, segregation, tail shrinkage, metallic or nonmetallic inclusions and other visible metallurgical defects are not allowed in the low-power structure of the product

4.    If the demander has no special requirements, the products shall be subjected to ultrasonic inspection in accordance with AMS2631-1. If the demander requires, the products can also be subjected to non-destructive inspection such as X-ray. The acceptance method and standard shall be determined by the demander and the buyer through negotiation

5.    the content of element C shall be determined according to ASTME1941, the content of element O and N shall be determined according to ASTME1409, the content of element H shall be determined according to ASTM E1447, the sample shall not be less than 0.35g, and the analysis method of other components shall be determined according to ASTN E2371.  Tensile test method at room temperature shall be conducted according to ASTM E8.  Low-power group GB/T5168 provisions shall be implemented.              Sales and production of titanium cake, titanium ring and titanium forgings:

Baoji Firstti Titanium industry (Group) Co., Ltd. has a forging oil press of 2500 tons and a forging press of 3000 tons each, with an annual capacity of 2000 tons of casting, 30,000 tons of forging and pressing and 6000 tons of mechanical adding titanium material production and processing capacity, which can produce more than 50 kinds of titanium and titanium alloy products in three categories: titanium material, titanium products and titanium equipment.  Companies and research institutes jointly developed full automatic vacuum since the electricity arc furnace to fill the gaps private Chinese titanium processing enterprises, the equipment using the German Siemens computer control system, high precision electronic weighing system, remote camera viewing system, important process parameters storage, printing system, can be under the control room video remote operation, realized the full automation of the process of smelting,  High yield of titanium ingot, uniform chemical composition without segregation.  The annual export of titanium ingot, titanium forgings and other products is close to 450 million Yuan.

1.Production process:

Titanium Sponge----Compacting electrodes----Multiple melting-----Titanium ingots--- Machining---UT testing---Chemical composition inspection----Forged billets----Forged/Rolled---Annealed----Straightening----Machining----UT testing----Visual and Dimension Inspection---UT testing---Marking---Packaging---Delivery

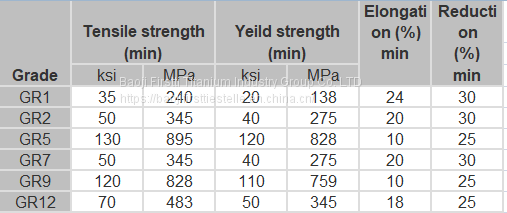

2Tensile strength:

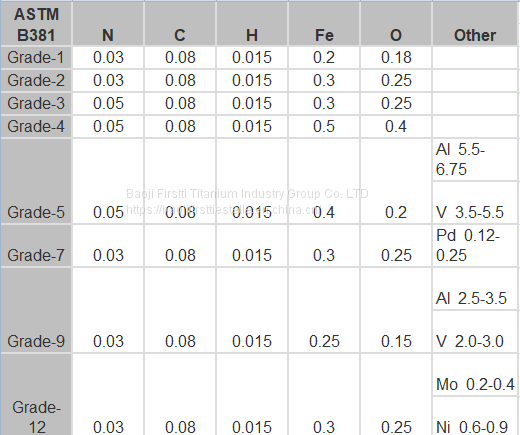

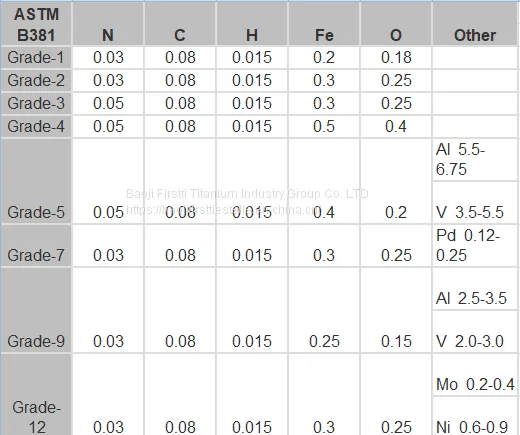

3.chemical composition:

4.Application:

Aerospace 2) Navigation & sea water desalination 3) Military 4) Medical 5) Chemical Industry & Petrochemical 6) Electrolysis & Electroplating

Email:yiranestelle@firstti.com

+86 18690047203
