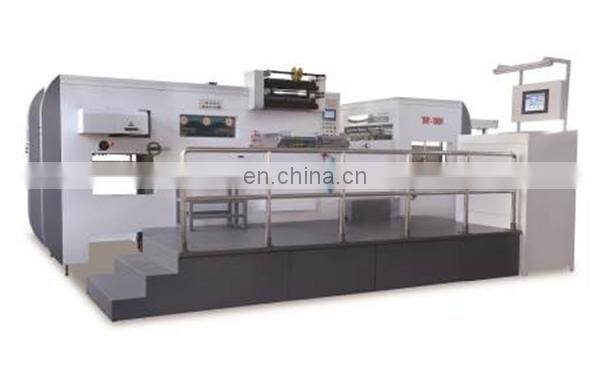

TMY1080-H Automatic Foil Stamping &Die-cutting Machine

Machine details:

1, Cutting Parts

All cuttings parts are designed stably without any scamp work or stint material. The whole machine is 18T. The wall plate is 90mm thick (65mm commonly) and is shaped by cast steel with high tensile strength against deformation. The crankshaft is made of fully quenched chrome steel, the large worm wheel and all bearing bushes are made of alloy copper, and the worm wheel is 80mm thick (65mm commonly). The worm is made of quenched bearing steel by grinding (45# carbon steel not by grinding commonly). All other parts are made of standard 45# steel at least, and all above parts are directly guaranteed by our company.

2, Standard Parts

Imported parts and standard parts have special trademarks and they cannot be counterfeited; the high price of a die-cutting machine arises from the highly standard configuration as all bearings are from Japan SK and key parts from better Sweden SKF. It is integrated with Taiwan highly precise intermittent reduction gear, and Germany main chain, even every a little screw is in the topmost grade 12.9, and undoubtedly they are very important for the product quality.

3, Electrical Parts

Electrical parts are famous brand products like standard parts. The frequency governor, programmable controller (PLC computer), optical switches and other key controlling elements are from Japan. Other switches, contactors and relays are from France Schneider. The perfection of high quality die-cutting machine is originated from the world famous electrical configuration.

4,Standards for Assembling

This die-cutting machine is assembled to satisfy a high requirement, so our company has established many high standard part tolerances and assembling levels; e.g. the bearing tolerance is within 0.02mm; the hardness of each quenched part is 45° above; all bearing are assembled in the best process – hot assembling to prevent forced knocking, and each part is assembled with a clear tolerance record. When the assembled machine is operated with no load for 48 hours, the bearing temperature cannot be 10°C higher than the room temperature. No disorderly shutdown is allowable within 500 pieces of paper, and there mustn’t be any nonacceptable noise from the finally assembled machine. In all, each machine is followed by a list of acceptance check, and it will not be accepted if any item is beyond the standard.

5,Human culture principle

The deep company culture make every employee know that quality is the core meaning of life, united to keep improving is the basic requirement for being a person and producing a machine, and saving money for the client, helping the client to earn money, and assisting the client in development are our service principle. We hope each client can deeply and favorably know our products. We believe that our high quality products will be one of your wealth sources.

I. Descriptions of the entire product

This is the key device for the production of paper boxes and high standard paper products, etc. It is especially applicable to the automatic die-cutting and stripping of complicated paper boxes and cigarette cases to rationalize the production of paper boxes. This machine is integrally assembled, transported and mounted, it can be put into operated in one day, and thus the cost is reduced. The precise assembly and high configuration make it better than Taiwan machines and competitive with Japan machines.

1.        Die-cutting unit eliminated castings wallboard due to casting wallboard has small pull, large deformation and without limitation, instead it uses steel wallboards like Japan. To increase pulling force is to increase pressure, and it is strong and durable, changeless form.

2.        Automatic pressure control and automatic adjust compasses make the machine achieve new successes. This added functions, make it become the digital equipment, handling fast, convenient to use.

3.        Taiwan high-pressure oil pump, use crush type for lubrication, reducing parts attrition and increasing oil temperature cooler to lubricant for cooling, on the main chain for regular lubrication, improve equipment efficiency.

4.        It has novel drive mechanism, execute high-speed die-cutting, high accuracy of swinging rod platform and improve the pad speed (almost don't need mat), we should know, a lot of manufacturers exist pressure uneven problem.

5.        Pneumatic locking plate device has firmer upper frame, saving time. Our company produces the die-cutting machine simultaneously to nether frame around for air lock, leading to strong accuracy, speed fast. All other manufacturers are just using screw fastening.

6.        Gripper bar chains are imported from Germany, to ensure the service life and stable die cutting precision.

7.        Taiwan intermittent institutions is the main transmission requirements for die-cutting machine, it can improve die cutting speed, die-cutting precision, lower noise. Using home-made intermittent cannot reach the speed and precision on this level.

8.        Torque limit device can do overload protection, in overload situation, master-slave separation will guarantee safety of machine in operating. Italian imported pneumatic brake clutch, and Japan SMC rotating adapter, satisfies European standards, clutch rapidly, great strength smoothly, long life and low noise.

1.        Automatic vacuum paper, orderly and clean

2.        Non-stop delivery gate plate can improve efficiency. When the paper stack is high enough, we can pull out the collect cardboard and push-in another piece deceive paper gate plate to change at the same time, thus achieved the non-stop delivery.

3.        Pneumatic sampling, which are accessible at any time to check the die cutting paper, very convenient.
