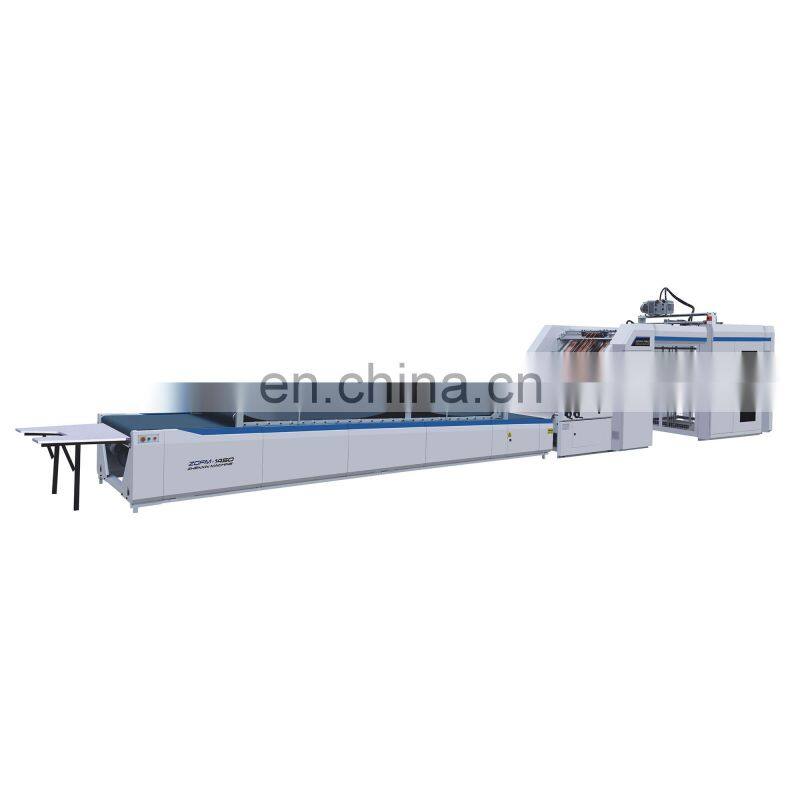

Automatic Flute Laminating Machine/flute Laminator

1. Product description

1.1 Function:

The paper can be laminated with paperboard to increase the strength and thickness of the material or special effects. After the die-cutting, it can be used for packaging boxes, billboards and other purposes.

1.2 Structure:

A. Upper Paper Feeder: It can send stacks of 150-800gsm paper from above.

B. Bottom feed: It can send 0.5~10mm paperboard from below.

C. Gluing mechanism: The glued water can be applied to the fed paper.

D. Regulatory organization - Fits the two papers according to the set tolerances.

E. Pressurizing Conveyor... Presses the attached paper and conveys it to the delivery section.

1.3 Principles:

The top paper is sent out by the upper paper feeder and sent to the start detector of the positioning mechanism for detection. Then the bottom paper is sent out; after the bottom paper is coated with glue on the glue wheel, the top paper and the bottom paper are respectively conveyed to the paper Synchronous detectors on both sides, after the detection, the controller calculates the error value of the paper and the bottom paper, and the servo compensation device on both sides of the paper compensates the paper to a predetermined position for splicing, and then pressurizes the conveying. The machine presses the paper and conveys it to the delivery machine to collect the finished product.

1.4 applicable materials:

Paste paper --- 150 ~ 800g/m thin paper, cardboard.

Bottom paper---0.5~10m/m paperboard, single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, styrofoam board.

Glue - resin, etc., PH value between 6 ~ 8, can be applied to the glue.

Structural features:

Adopting the world's leading transmission control system, only need to input paper size system auto-tuning.

Computerized high-speed fitting, up to 12,000 pieces per hour.

Chuanliu-type air supply head, with four sets of forward nozzles and four sets of suction nozzles.

Feed Block adopts low stack cardboard, which can fit the paper to the pallet, and can install track-assisted pre-stacker

Use multiple sets of electric eyes to know the advance position of the bottom line, and make the servo motor on both sides of the face paper to independently rotate to compensate the upper and lower paper alignment, which is accurate and smooth.

Full-function electronic control system, using human-machine interface and PLC program model display, can automatically detect operating conditions and work records.

Automatic glue replenishment system can automatically compensate for lost glue and cooperate with glue recycling.

Parameters:
