ZH 800G Automatic Carton Box Multi-functional Crash Lock Bottom Folder Gluer Machine

ZH 800G Automatic Carton Box Multi-functional Crash Lock Bottom Folder Gluer Machine photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2006
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

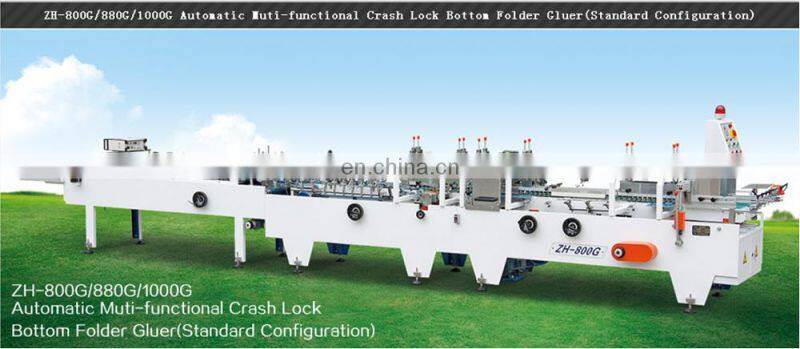

ZH 800G/880G/1000G Automatic Multi-functional Crash Lock Bottom Folder Gluer Machine







Introduction:

ZH800G/880G/1000G is the most competitive folder gluer with crash bottom through our company independent research. It has two National Patents. It’s easy operation, reasonable price and wide application make it a new leap forward in the history of folder gluer. It combines a variety of folder gluer functions: straight line box, pre-fold box, crash lock bottom box. Our machine is featured by multi-function, wide application, easy operation and lower price. Compared to older generation folder gluer, our machine simplify the complicated construction, reduce the difficulty of test run and decrease the machine’s cost. Especially for the current packaging and printing industry, it brings new hope to the weak point of folder gluer industry: shorter delivery time, constricted function, more competitive price. It is ideal equipment in printing industry.



Features:

Line speed

0-220m/min adjustable

Paperboard thickness

210-600gsm

Box forming

Either side folds, either sides pre-fold and crash lock bottom

Paperboard feeding

Continuous automatic

Way of folding

Frist, second and fourth lines fold 180 degree, third line folds 135 degree

Glue type

Cold glue

Power

3.7KW AC220V single phase

Weight

2000KG

Dimension

8500*900*1300mm

The counting range

0-999999 full automatic

















Packaging & Shipping

1. The packing is confirm to export wooden case standard, strong and durable. The                    wooden case’s thickness is generally 1 cm.

2. In order to be waterproof, we usually use bubble film to wrap machine.

3. We can handle shipping for customers too.



 ZH 800G Automatic carton box Multi-functional Crash Lock Bottom Folder Gluer Machine





Our Services

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.

Company Information

*With 10 years' Experience

*Having ISO 9001-Certified Factory

*Strong R&D capability

*High Quality Guaranteed

*First Class Service And Best Prices

*Primary products:

    Automatic High Speed Flute Laminater

    ZXSCM Book Case Making Machine

    650UV Coating Machine

    ZX-650C Manual Paper Pasting Machine

    Box Making Machine

    Hot Melt Gluing Machine and Gluing Machine

    Table Gluing Machine

    Paper Pressing Machine.etc

    Welcome to visit our factory!

 ZH 800G Automatic carton box Multi-functional Crash Lock Bottom Folder Gluer Machine



 ZH 800G Automatic carton box Multi-functional Crash Lock Bottom Folder Gluer Machine



FAQ

1.What is Innovo company machine warranty?----one year.

2.Does your machine with CE certificate?----Yes.

3.What is the production time while placing order?----Arounding 7-30 days

4.What is the delivery time?----Within 7-30 days after get the payment.

5.Can Innovo company handle shipping for customers?----Yes.(Please provide us your requested seaport and we can        check the shipping charge and arrange shipping for your order)

6.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case, all are confirm to          export packing standard.

7.How about after-sales service process?----When your machine has problem, contact your sales and we will solve your    problem as soon as possible.

8.Are you a manufacturer?----Yes, we are a manufacturer with 10-year experience and profession.

9.What is the minimum quantity for order?----Trial order 1 pc is acceptable, we done business step by step with high            quality products and excellent services.

10Do you have stock product to sell?----Maybe, It depends on which machine you like.

11Do you inspect the finished products?----Yes, each step of production products will be picked out inspection by QC         department before  shipping.

12.What’s the payment term?----T/T 30% in advance, the balance paid against the copy of B/L. We accept payment via              West Union too. You can choose as you like.



We are professional manufacturer since 2005. We believe our products will provide you with great business benefits and advantage.

Our faith:

1) Society's Avail First

2) Client's Avail First

3) Employee's Avail First

4) Enterprise's Avail Second

If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.
