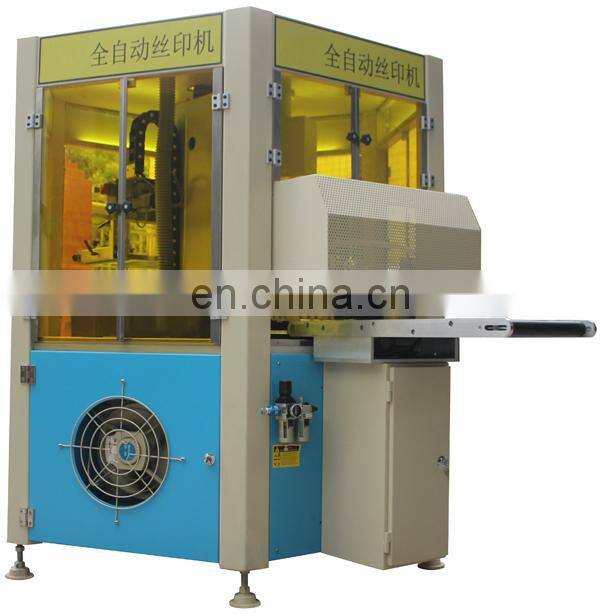

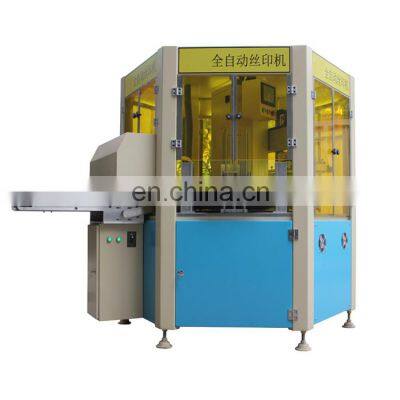

Single Color Screen Printing Machines For Ruler

Single Color Screen Printing Machines For Ruler

Machine Description:
Automatic automatic printing machine for one sets rulers ( rulers, right triangular rules, equilateral triangle rulers and compasses).Auto feeding device, auto positioning, printing device, auto UV dry device and auto stack
up unloading device, one time printing 4pcs(each kind of the rulers print 1piece),total speed up to 4800pcs/hr.

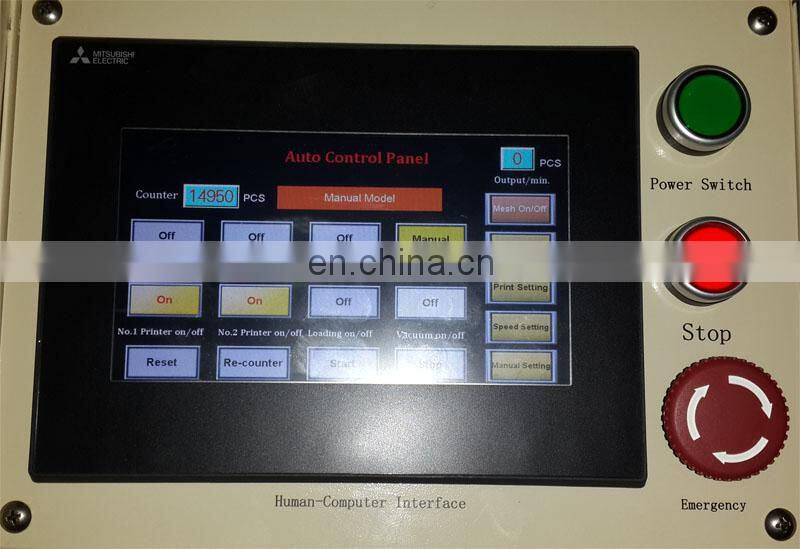

PLC Control Panel

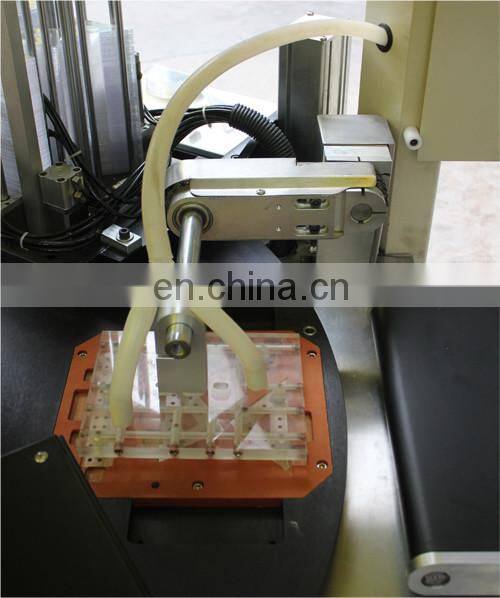

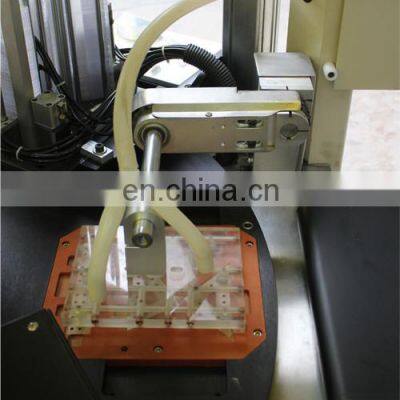

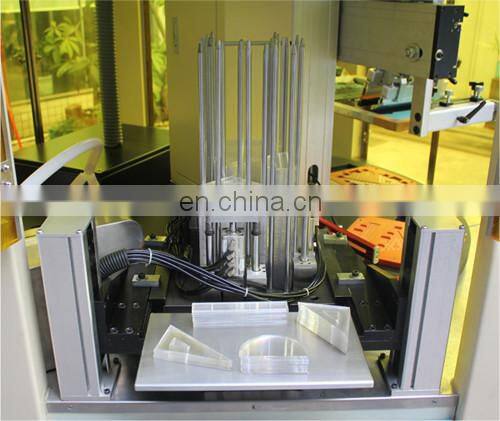

Auto Feeding System

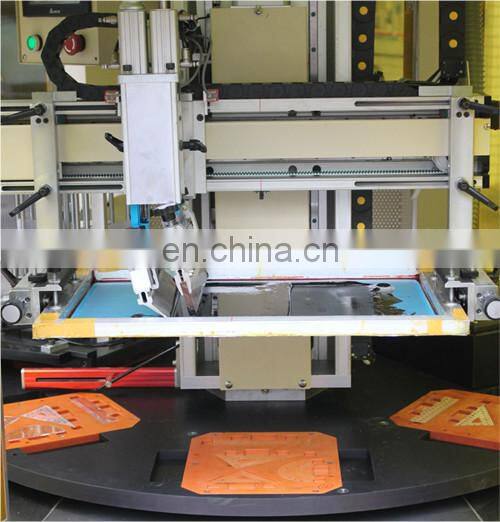

Color Printing Station

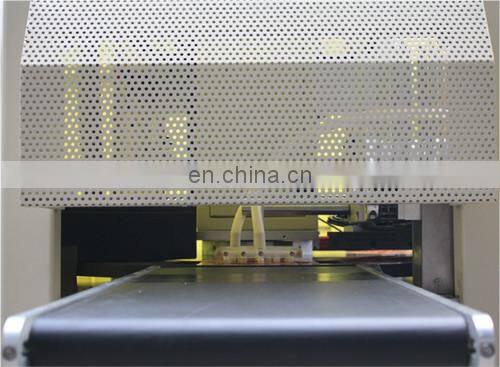

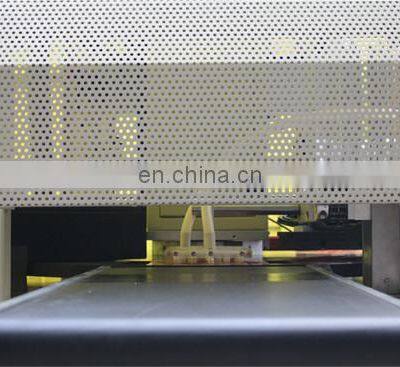

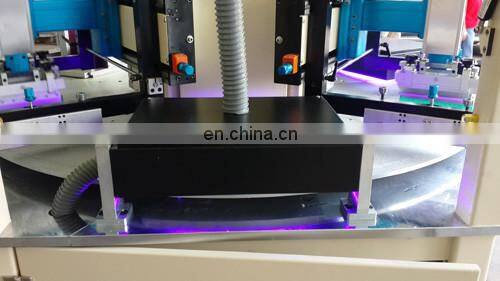

LED Dry System

Auto Unloading System

Auto Stacker Conveyor

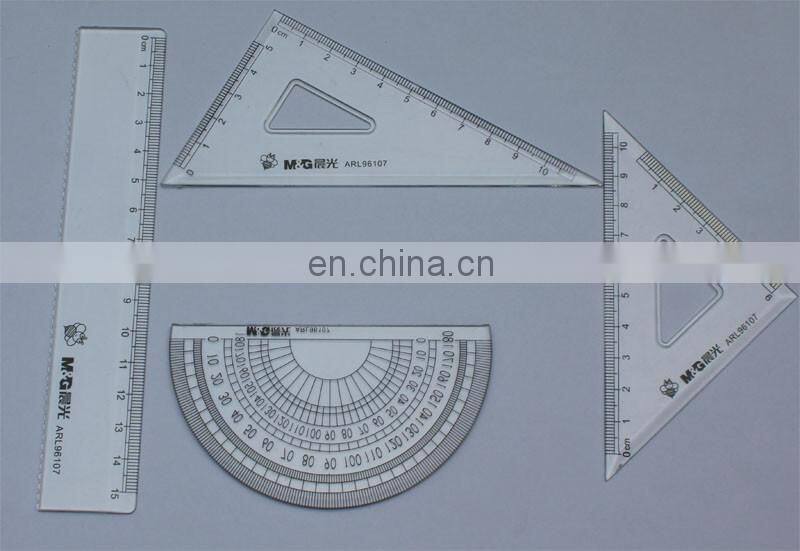

Rulers Printed Samples

Feature:
*Panasonic PLC touch control panel
* High speed cam divider rotary worktable
* Auto feeding and baiting, without manual operation
*Closed and column structure of machine to make sure safety operation
*Vacuum equipment ensure the rulers in same position during conveyor transmission
*The X and Y direction of worktable can be adjustable, the precision can be up to 0.01mm
*Servo motor driven printing stroke, combing with liner guide, infinitely speed control, stable printing
*Auto ruler locating system ensure printing accuracy, "no product, no printing" system keep printing stablely
*Adopt the cool LED light dry system to make sure all the printing process without the risk of burn the rulers
*Auto unloading belt conveyor transfer system, and the quantity of unloading printed rulers on belt can be set

Parameter:
Model:TS-2030C6-1
Printing colors:1
Max.printing size:200x300mm
Max.frame size:250x500mm
Conveyor statoins:6pcs
Max.printing speed:4800pcs/hr
Air pressure:6bars
Related Voltage:3phase,380V,50Hz
Power:4.5KW
Dimension(LxWxH):2050x2050x2100mm
Weight:500KG
