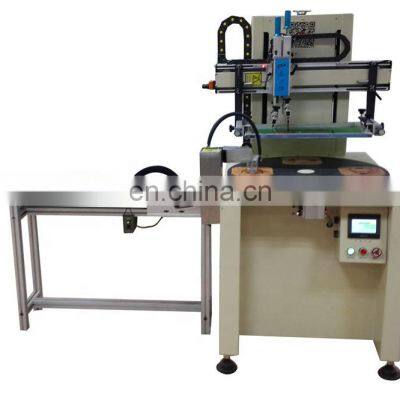

Automatic Rotary Screen Printer Printing Machine

Automatic Rotary Screen Printer Printing Machine photo-1
Automatic Rotary Screen Printer Printing Machine photo-2
Automatic Rotary Screen Printer Printing Machine photo-3
Automatic Rotary Screen Printer Printing Machine photo-4
Automatic Rotary Screen Printer Printing Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2015
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Automatic Rotary Screen Printing Machine Price
Product Description
1.PLC touch control panel
2.Cam indexers for the wortable running stable and precision
3.With Vacuum worktable for fix the box when print.
4.The printing head is driven by motor. Running on the double parallel high precision Linear Guide, stepless speed adjustment to ensure smooth movement.
5.For the dryer system can be choosed to IR or UV
6.Auto air sucker unload system can be set for different size of substrates.
7.Unload paper conveyor can be set for different speed
Specification
Model
TS-3050RS1
Worktable Selections
Vacuum
Rotary Station
4pcs
Max. Printing Size
300x500mm
Max. Screen Frame Size
600x900mm
Max. Substrate Height
150mm
Max. Printing Speed
800pcs/hr
Air Pressure
6bar
Rated Voltage
220V 50Hz
Power
2kw
Dimension(L×W×H)
2600x1000x1650m
Weight
320kg(Approx.)
