Automatic Pencil Case Math Box Silk Screen Printing Machine

Automatic Pencil Case Math Box Silk Screen Printing Machine photo-1

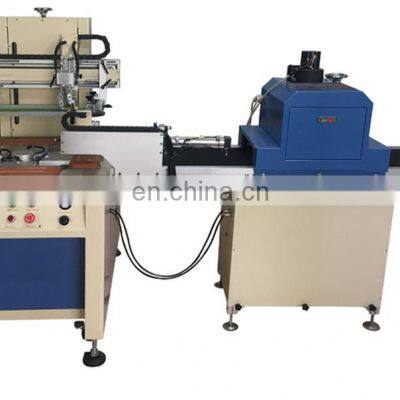

Automatic Pencil Case Math Box Silk Screen Printing Machine photo-2

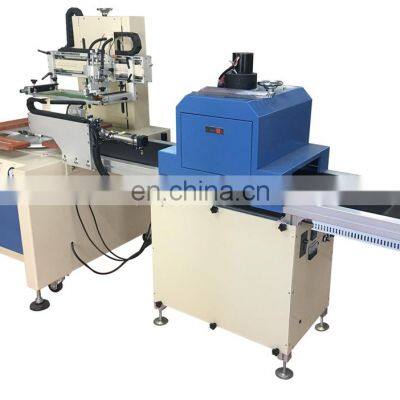

Automatic Pencil Case Math Box Silk Screen Printing Machine photo-3
Automatic Pencil Case Math Box Silk Screen Printing Machine photo-4
Automatic Pencil Case Math Box Silk Screen Printing Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2015
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Automatic Pencil Case Math Box Silk Screen Printing Machine

Features
*PLC touch control panel
*
Cam indexers for the wortable running stable and precision

*With Vacuum worktable for fix the box when print.

*The printing head is driven by motor. Running on the double parallel high precision Linear Guide, stepless speed adjustment to ensure smooth movement.

* Double UV lamps system, each UV lamps power can be independently adjust

*Equipped with auto lamp power time counter

*Auto air sucker unload system can be set for different size of papers.

*Unload paper conveyor can be set for different speed



Parameter:

Model

TS-2030SB1

Worktable Selections

Vacuum

Drying System

UV Curing

Unload Conveyor Lenght

1000mm

Worktable Size

300X400mm

Max. Printing Size

200×300mm

Max. Screen Frame Size

400×600mm

Max. Substrate Height

150mm

Max. Printing Speed

1200pcs/hr

Air Pressure

6bar

Rated Voltage

380V,3phases, 50Hz

Total Power

6kw

Dimension(L×W×H)

2500x1000x1650m

Weight

350kg(Approx.)



Automatic Pencil Case Math Box Silk Screen Printing Machine



Automatic Pencil Case Math Box Silk Screen Printing Machine

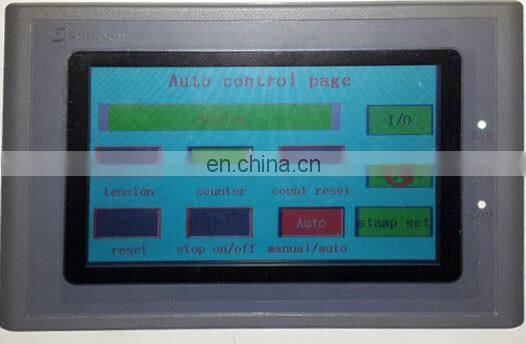

PLC Touch Screen Panel



Automatic Pencil Case Math Box Silk Screen Printing Machine

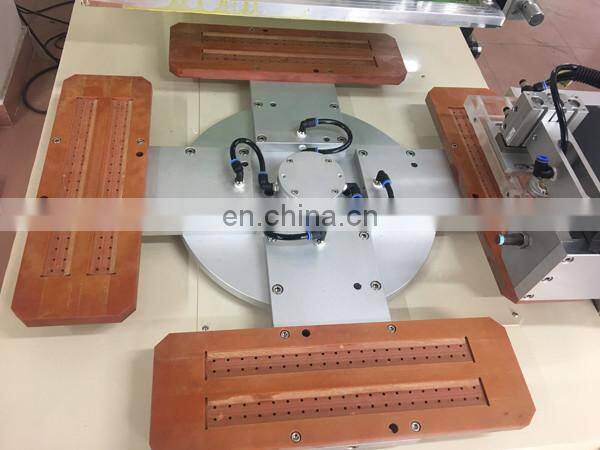

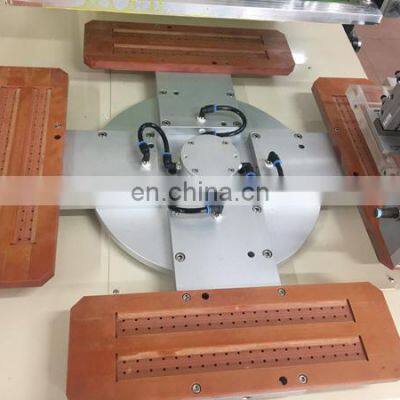

4 Stations Conveyor



Automatic Pencil Case Math Box Silk Screen Printing Machine

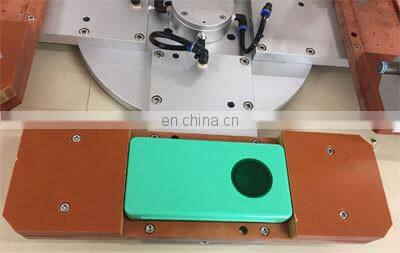

Box Fixture



Automatic Pencil Case Math Box Silk Screen Printing Machine

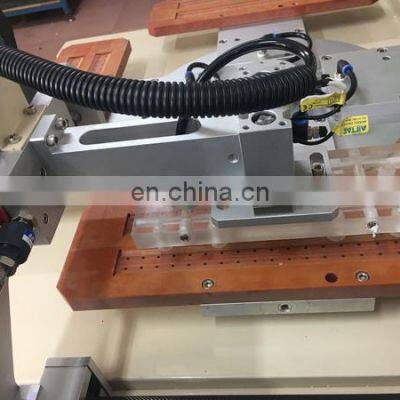

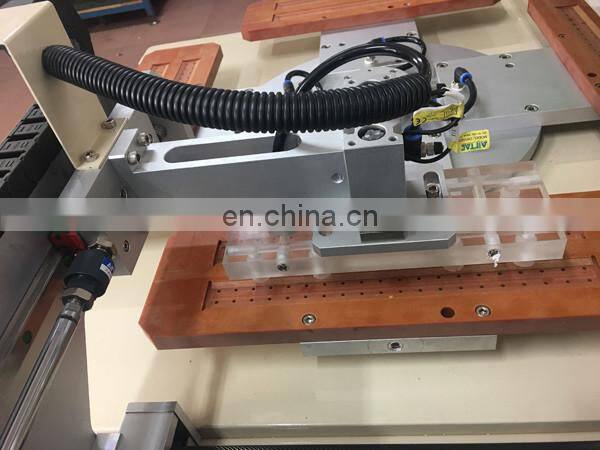

Auto Unload System



Automatic Pencil Case Math Box Silk Screen Printing Machine

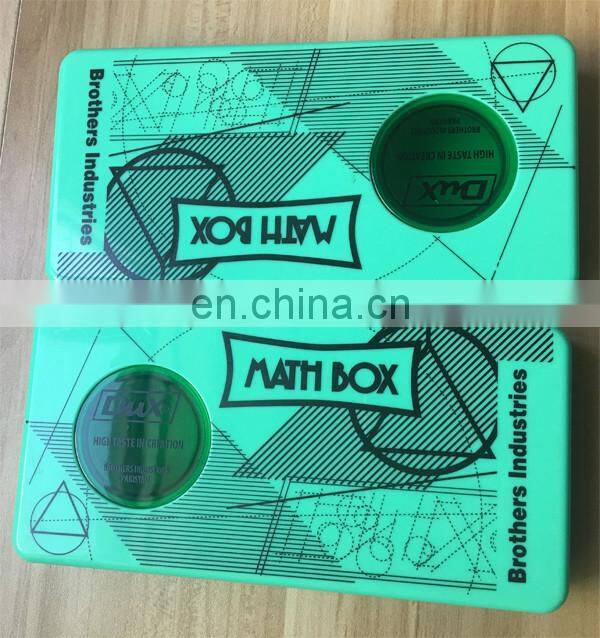

Box Printed Samples
