Automatic Turntable Used uv Small Flat Bed Pencil Case Silk Screen Printer Printing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2015
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Semi Automatic Desktop Mini Small Equipment Manual Silk Screen Printer Printing MachineNegotiableMOQ: 1 -
Semi Auto Cylinder Silik Screen Platic Cup Bottles Caps Printing MachineNegotiableMOQ: 1
-
Semi Auto Servo Cylindrical High Precision Graphite Ring Pistons Silk Screen Printing Printer MachineNegotiableMOQ: 1
-
Semi Auto Manual Curved Surface Pneumatic Rotary Piston Silk Screen Printing MachineNegotiableMOQ: 1
-
Custom PVC Cutting Mat Silk Screen Accurate Printing MachineNegotiableMOQ: 1
Product Description

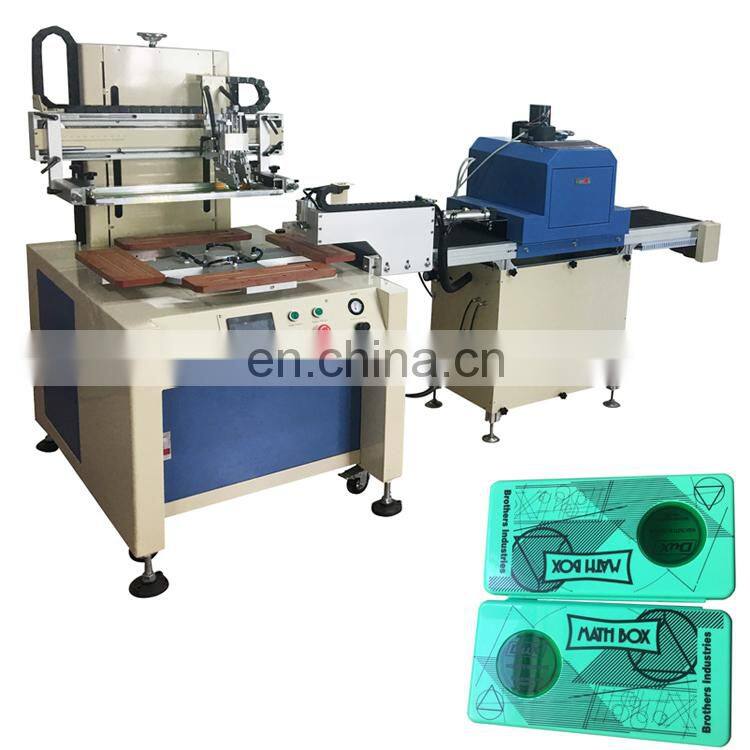

Automatic turnable used uv small flated pencil case silk screen printer printing machine
1、Micro PLC control panel with easy operation.

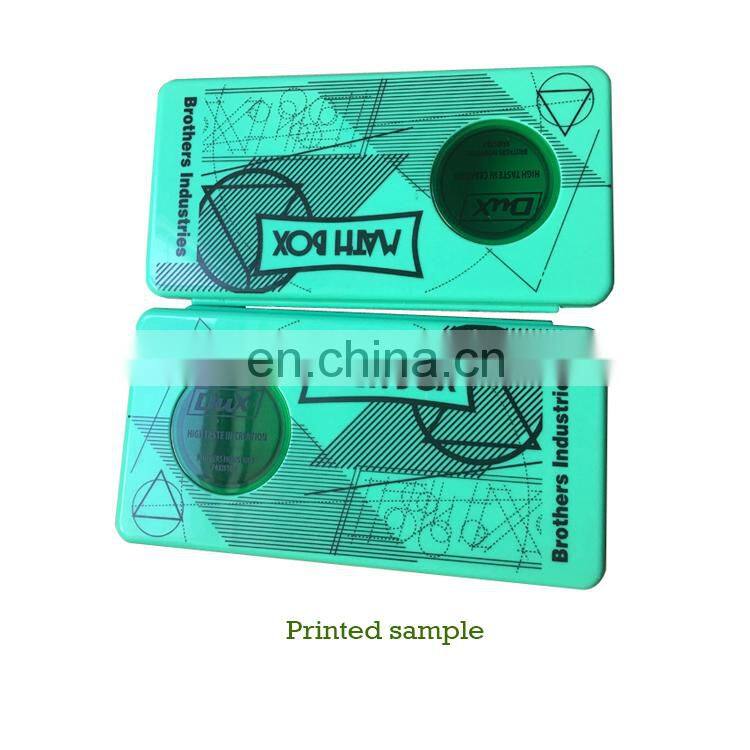

2、Suitable to pad printing on ruler,pencil case,max box,plastic and plane product etc.
Feature:

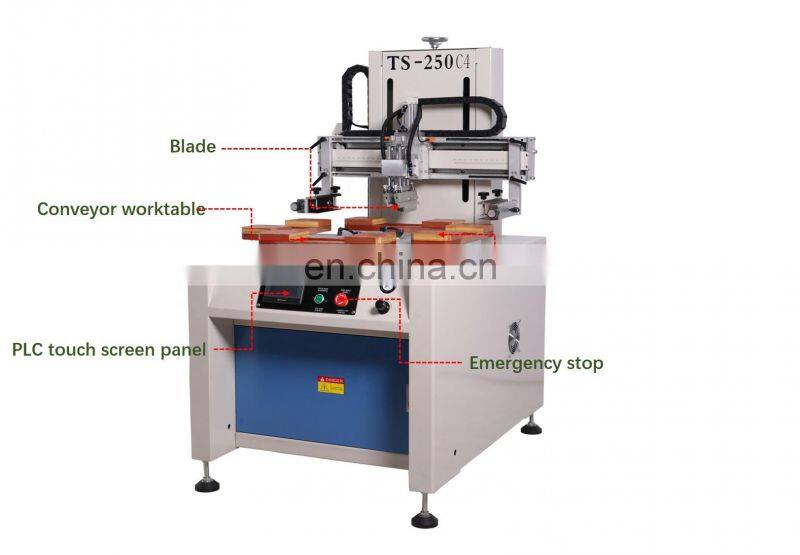

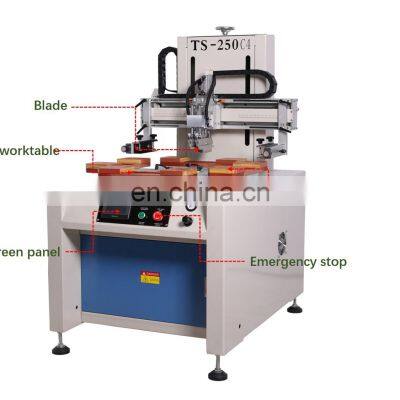

1. PLC touch control panel

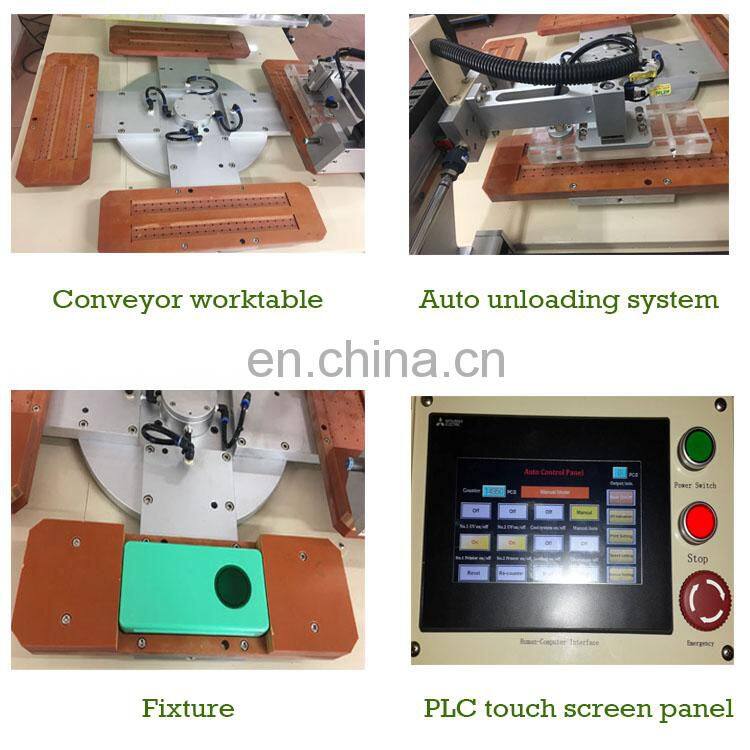

2.Cam indexers for the worktable running stable and precision
3.With Vacuum worktable for fix the box when print.
4.The printing head is driven by motor. Running on the double parallel high precision Linear Guide, stepless speed adjustment to ensure smooth movement.

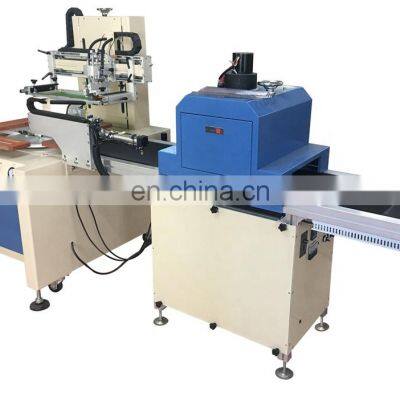

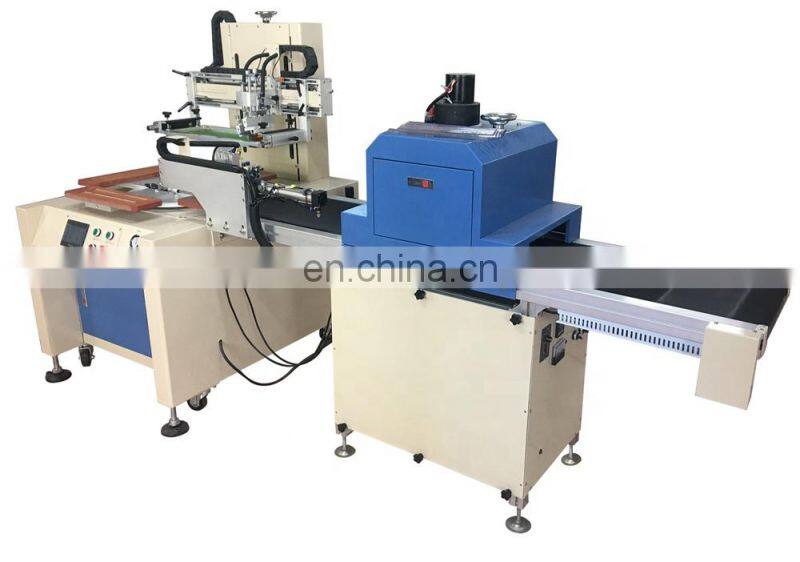

5. Double UV lamps system, each UV lamps power can be independently adjust
6.Equipped with auto lamp power time counter
7.Auto air sucker unload system can be set for different size of papers.
8.Unload paper conveyor can be set for different speed
2.Cam indexers for the worktable running stable and precision
3.With Vacuum worktable for fix the box when print.
4.The printing head is driven by motor. Running on the double parallel high precision Linear Guide, stepless speed adjustment to ensure smooth movement.
5. Double UV lamps system, each UV lamps power can be independently adjust
6.Equipped with auto lamp power time counter
7.Auto air sucker unload system can be set for different size of papers.
8.Unload paper conveyor can be set for different speed
Specification
Model | TS-2030BP1 |
Worktable Selections | Vacuum Worktable |
Drying System | UV Dryer |
Worktable Size | 300X400mm |
Max. Printing Size | 200×300mm |
Max. Screen Frame Size | 400×600mm |
Max. Substrate Height | 150mm |
Max. Printing Speed | 1200pcs/hr |
Air Pressure | 6bar |
Rated Voltage | 380V,3phases, 50Hz |
Total Power | 6.5kw |
Dimension(L×W×H) | 2800x1000x1650m |
Weight | 380kg(Approx.) |
Company Profile
Shenzhen Tampon Print Machine Ltd. is located in Dongguan , Guangdong. As a printing company with more than 20 years experience,we has become a world supplier of high quality pad printing machine, screen printing machine and hot stamping giving high quality machines and best service to our customers is our abiding goal.
VR
Screen printing process
Packaging&Shipping
Certifications
FAQ
Q1. Are you a factory or a trading company?
A:We are a professional manufacturing factory,and the quality is guaranteed.
Q2. Can you do the production as customized?
A:Yes,we could produce the machine depends on your requirements.
Q5.What''s the MOQ, Delivery time ?
A:MOQ: 1 set
Delivery time: 25-30 workdays after receiving T/T 30% payment deposit
A:We are a professional manufacturing factory,and the quality is guaranteed.
Q2. Can you do the production as customized?
A:Yes,we could produce the machine depends on your requirements.
Q3. Why choose us?
A: a.We are a professional factory,we can supply cheaper price.
b. We have our own research and sales team.
c. We are golden supplier in Alibaba.
Q4.what service can you provide?
A:Before service: providing video、sample、testing、introduction.
After service: 1 year warranty、field maintenance and repair service.
A: a.We are a professional factory,we can supply cheaper price.
b. We have our own research and sales team.
c. We are golden supplier in Alibaba.
Q4.what service can you provide?
A:Before service: providing video、sample、testing、introduction.
After service: 1 year warranty、field maintenance and repair service.
Q5.What''s the MOQ, Delivery time ?
A:MOQ: 1 set
Delivery time: 25-30 workdays after receiving T/T 30% payment deposit
