Semi Auto Cylinder Silik Screen Platic Cup Bottles Caps Printing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2015
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Semi Auto Servo Cylindrical High Precision Graphite Ring Pistons Silk Screen Printing Printer MachineNegotiableMOQ: 1 -
Semi Auto Manual Curved Surface Pneumatic Rotary Piston Silk Screen Printing MachineNegotiableMOQ: 1
-
Custom PVC Cutting Mat Silk Screen Accurate Printing MachineNegotiableMOQ: 1
-
Single Color Custom Washing Panel Plastic Silk Screen Price Printing MachineNegotiableMOQ: 1
-
Plastic Crate Screen Printing Machine With 2 Side Rotate Crate PrinterNegotiableMOQ: 1
semi auto cylinder silik screen platic cup bottles caps printing machine
Product Description

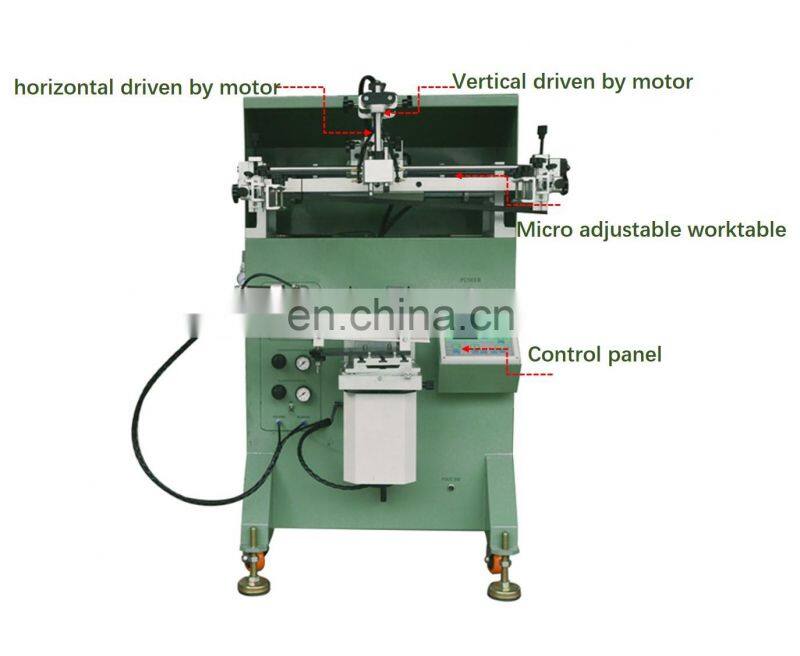

1.Small size cup screen printer
2.Pneumatic-driven vertical screen lifting system to prevent any unnecessary ink flow on the screen, small volume of ink can be printed, registration and clean very easily.
3.The printing head is driven by motor. Running on the double parallel high precision Linear Guide, stepless speed adjustment to ensure smooth movement.
4.The printing table is facilitated with X-Y-R fine pitch registration adjustment.
5.The printing stroke and sub- frame are variable adjustable and different sizes of screen frame is acceptable
6.It can be equipped with auto peel-off system in order to get a better printing quality.
2.Pneumatic-driven vertical screen lifting system to prevent any unnecessary ink flow on the screen, small volume of ink can be printed, registration and clean very easily.
3.The printing head is driven by motor. Running on the double parallel high precision Linear Guide, stepless speed adjustment to ensure smooth movement.
4.The printing table is facilitated with X-Y-R fine pitch registration adjustment.
5.The printing stroke and sub- frame are variable adjustable and different sizes of screen frame is acceptable
6.It can be equipped with auto peel-off system in order to get a better printing quality.
Specification
Model | TS-300C |
Max.printing area | 250×320mm |
Max. Screen Frame Size | 300×350mm |
Worktable size | 300mm×400mm |
Max. Printing Speed | 1100pcs/hr |
Rated Voltage | 220V 50Hz |
Power | 0.04kw |
Air Pressure | 6bar |
Dimension(L×W×H) | 1030×850×1280mm |
Weight | 150kg(Approx.) |
Company Profile
Shenzhen Tampon Print Machine Ltd. is located in Dongguan , Guangdong. As a printing company with more than 20 years experience,we has become a world supplier of high quality pad printing machine, screen printing machine and hot stamping giving high quality machines and best service to our customers is our abiding goal.
VR
Screen printing process
Packaging&Shipping
Certifications
FAQ
Q1. Are you a factory or a trading company?
A:We are a professional manufacturing factory,and the quality is guaranteed.
Q2. Can you do the production as customized?
A:Yes,we could produce the machine depends on your requirements.
Q5.What''s the MOQ, Delivery time ?
A:MOQ: 1 set
Delivery time: 25-30 workdays after receiving T/T 30% payment deposit
A:We are a professional manufacturing factory,and the quality is guaranteed.
Q2. Can you do the production as customized?
A:Yes,we could produce the machine depends on your requirements.
Q3. Why choose us?
A: a.We are a professional factory,we can supply cheaper price.
b. We have our own research and sales team.
c. We are golden supplier in Alibaba.
Q4.what service can you provide?
A:Before service: providing video、sample、testing、introduction.
After service: 1 year warranty、field maintenance and repair service.
A: a.We are a professional factory,we can supply cheaper price.
b. We have our own research and sales team.
c. We are golden supplier in Alibaba.
Q4.what service can you provide?
A:Before service: providing video、sample、testing、introduction.
After service: 1 year warranty、field maintenance and repair service.
Q5.What''s the MOQ, Delivery time ?
A:MOQ: 1 set
Delivery time: 25-30 workdays after receiving T/T 30% payment deposit
