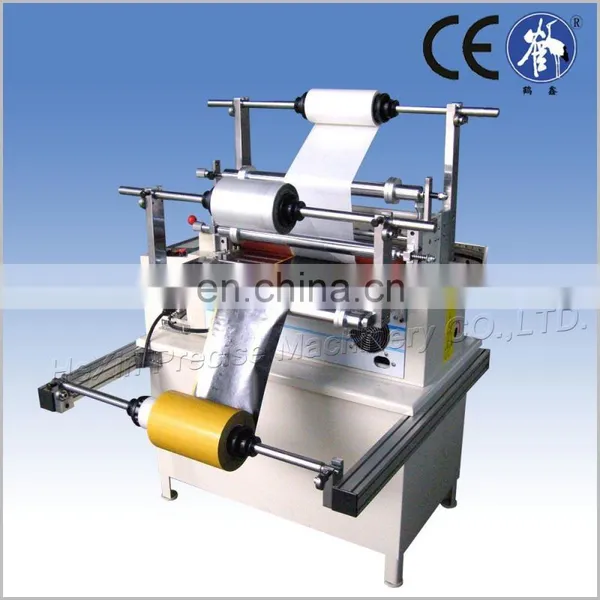

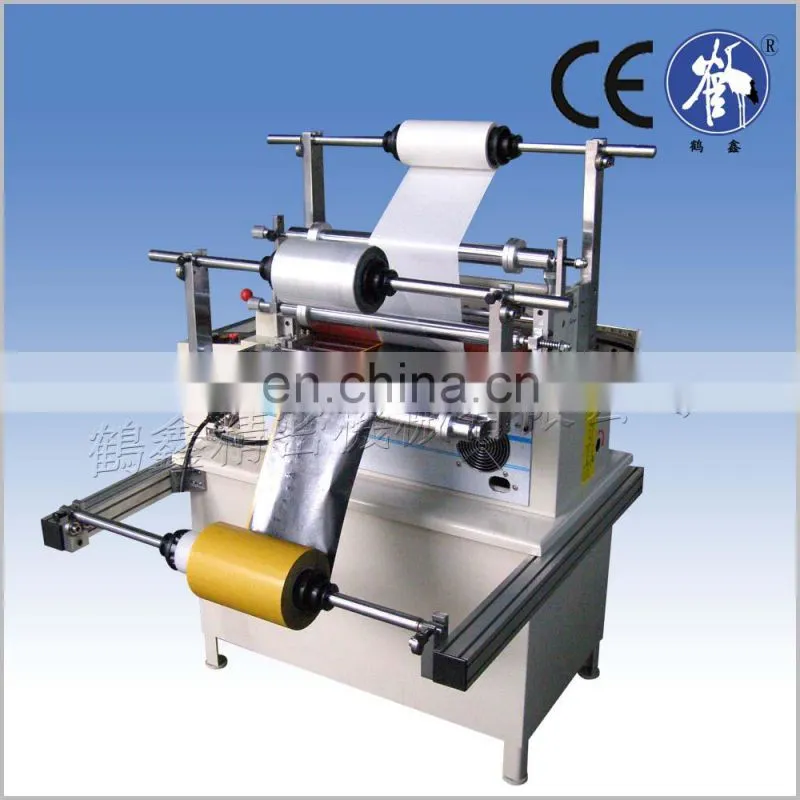

Automatic aluminum foil laminating and cutting machine
|
Model |
HX-360TQ |
|
Voltage |
220V/380V |
|
Power |
1125W |
|
N.W. |
230kg |
|
G.W. |
250kg |
|
Cutting Length |
0.1~9999.9mm |
|
Cutting Width |
1~360mm |
|
Measurement |
980x1200x1450mm |
1.Equipped with three unwinding shaft for material laminating.
3. Laminating and cutting can be finished at one time or separately .
4. Owing to the servo motor the cutting length is accurate,high precision can reach 0.1mm.
5.Automatic to preset length, quantity & speed on touch screen, it is not erased .even if power off & on.
6.Cutting length and cutting speed tunable
7.the cutting speed is 70~80cut per minute. (take 50mm long for example).
8. It stops automatically if materials run out during operation.
9.cutting is neat due to using a cold cutter like scissors and blades are durable because they are made of high-speed steel(HSS)
10.Full English LCD display,easy operating.and you can check the operation manual brochure, we will sent together with the machine.
11.cutter safety guard included,no danger risk
12.adjustable pressure on feed roller for thin or smooth materials
Ideal for cutting and laminating tape,label,conductive foam,fabric,metal foil,PVC,PET,OPP,PP,CPP,
LDPE, craft paper,insulation paper, copper / aluminum foil and release paper etc.
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
Here is the working vedio of HX-360TQ laminating and cutting machine ,please link.

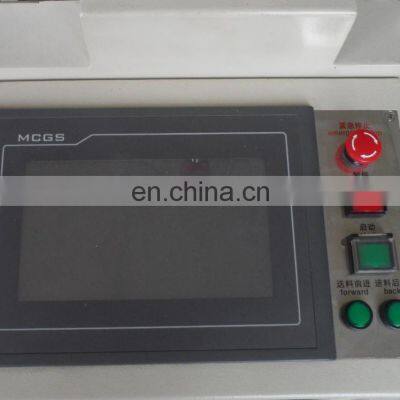

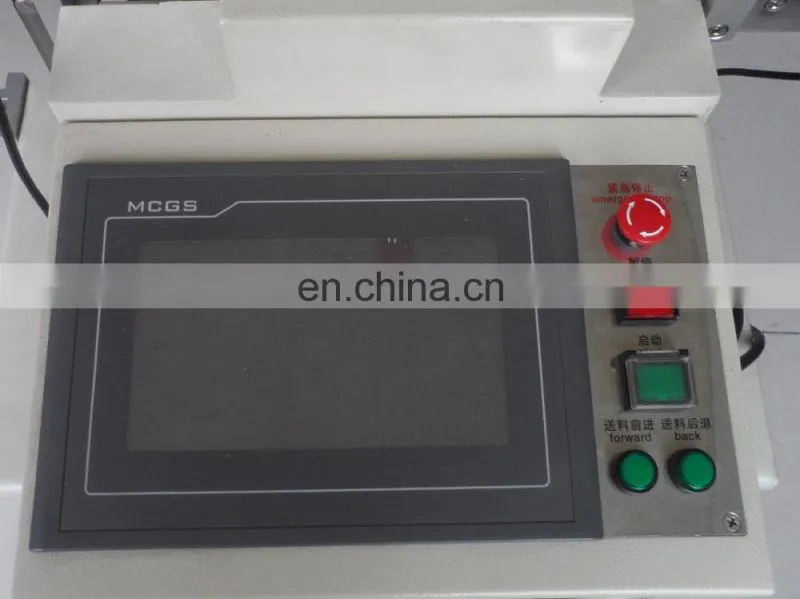

Touch screen

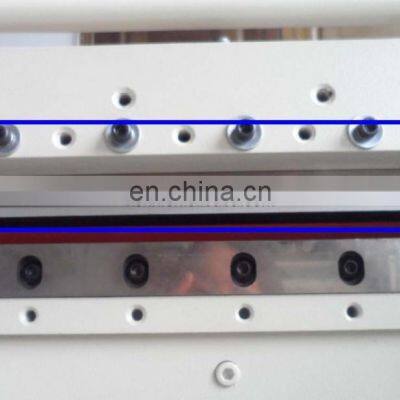

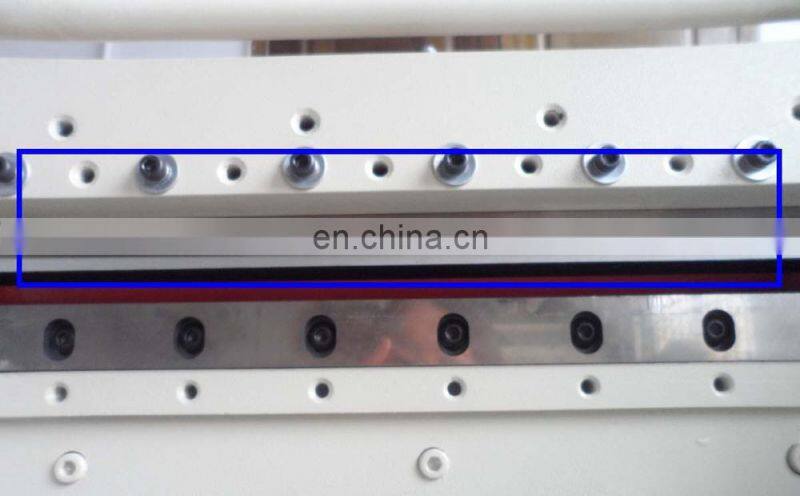

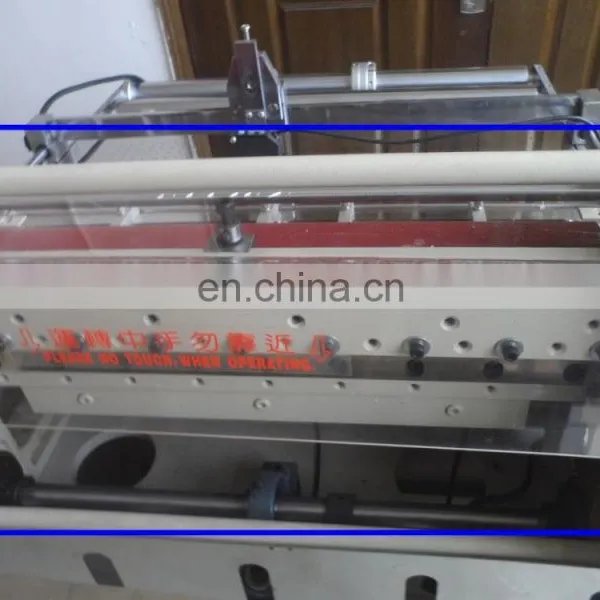

Cutting knife

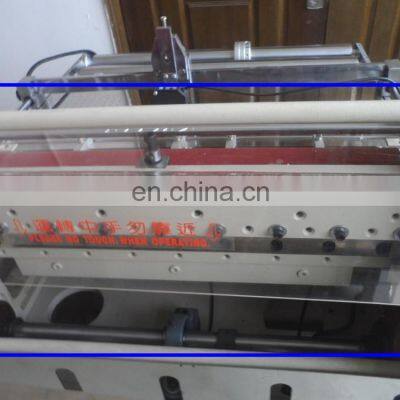

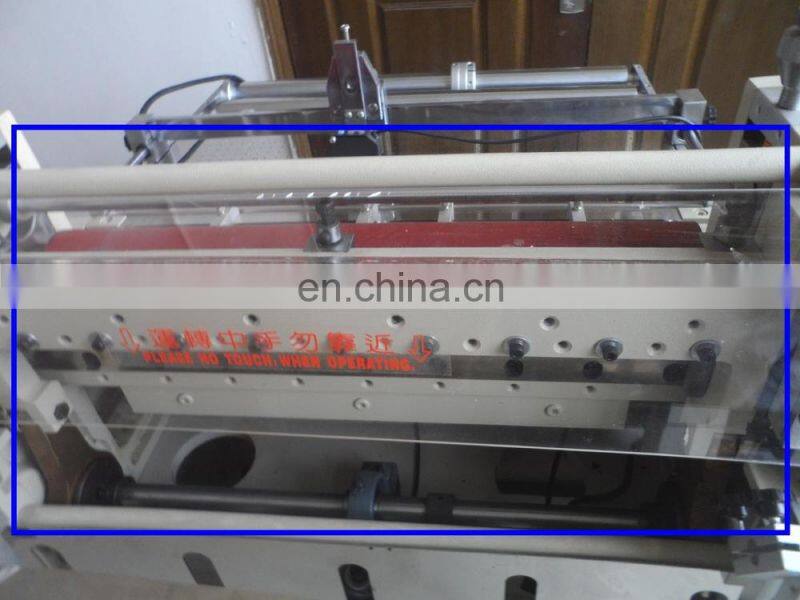

Safty guard

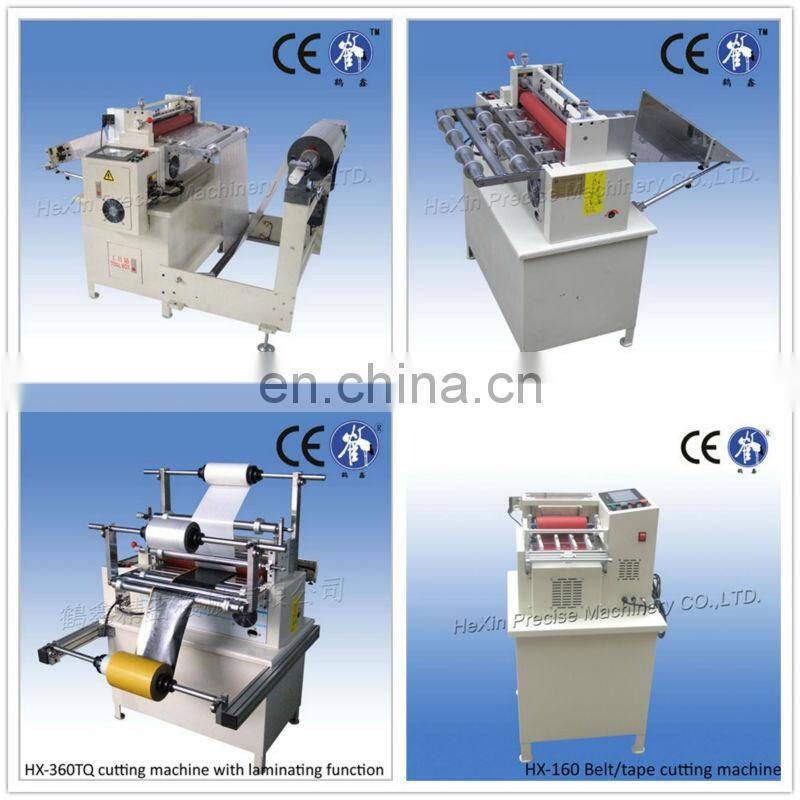

Relative more cutting machine,welcome to inquiry with e-mail

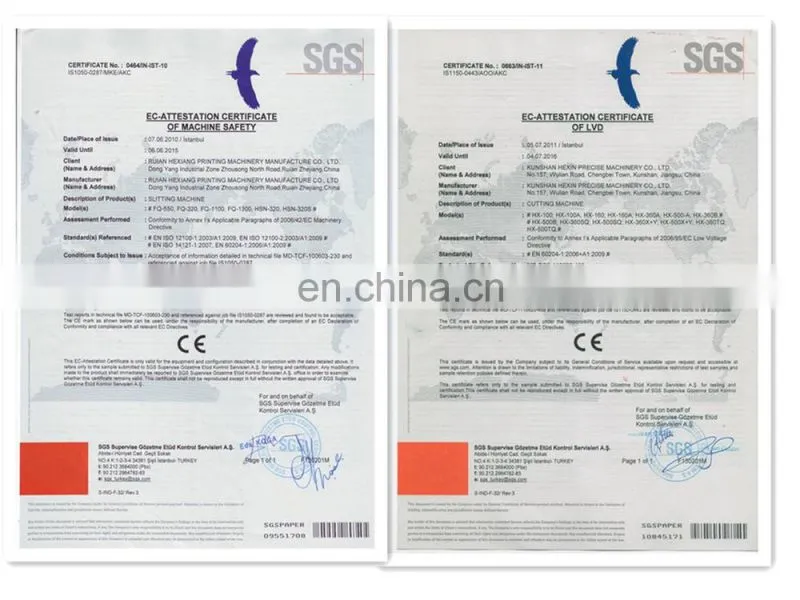

CE Certificaitons:

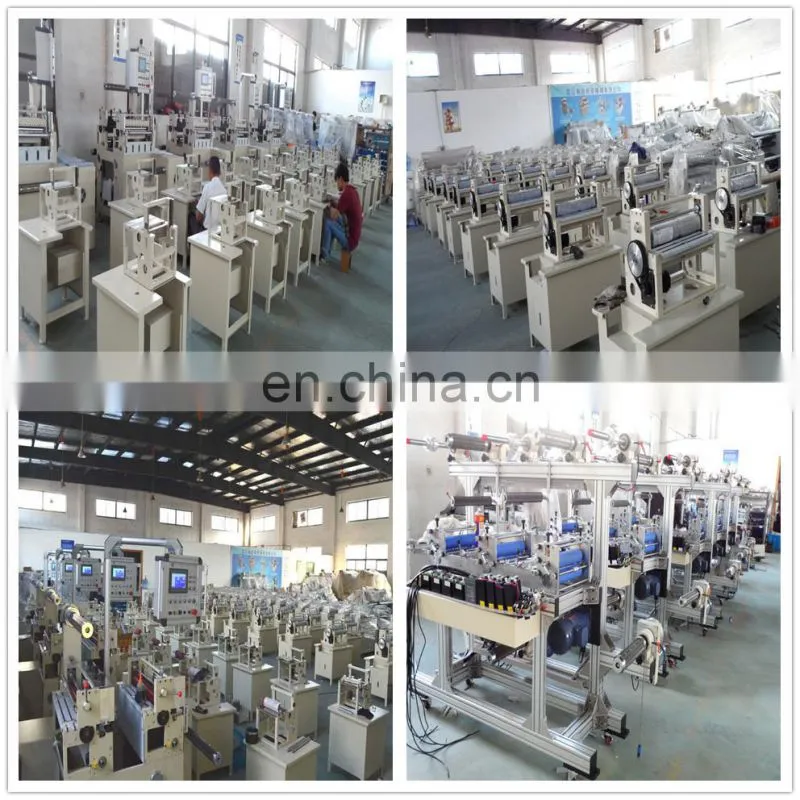

Our factory
Trade Exhibition
Check below for more information on placing an order
|
1. Inquiry-Professional quotation. |
|
2. Confirm the specification, price, lead time, payment term etc. |
|
3. HEXIN sales send the Proforma Invoice . |
|
4. Customer make the payment for deposit and send us Bank receipt. |
|
5. Inform the clients that we have got the payment, And will arrange the products according to your order. |
|
6. One week before shipping date, HEXIN will inform clients to make payment of balance. |
|
7. Clients make payment for balance and HEXIN Ship the goods. Inform the tracking number (send clients
the documents and Bill of Lading for customs clearance)and check the status for clients.
|
|
8. Order can be say “finish” when you receive the goods and satisfy with them . |
|
9. Feedback to HEXIN about Quality , Service, Market Feedback & Suggestion. And we can do better . |
