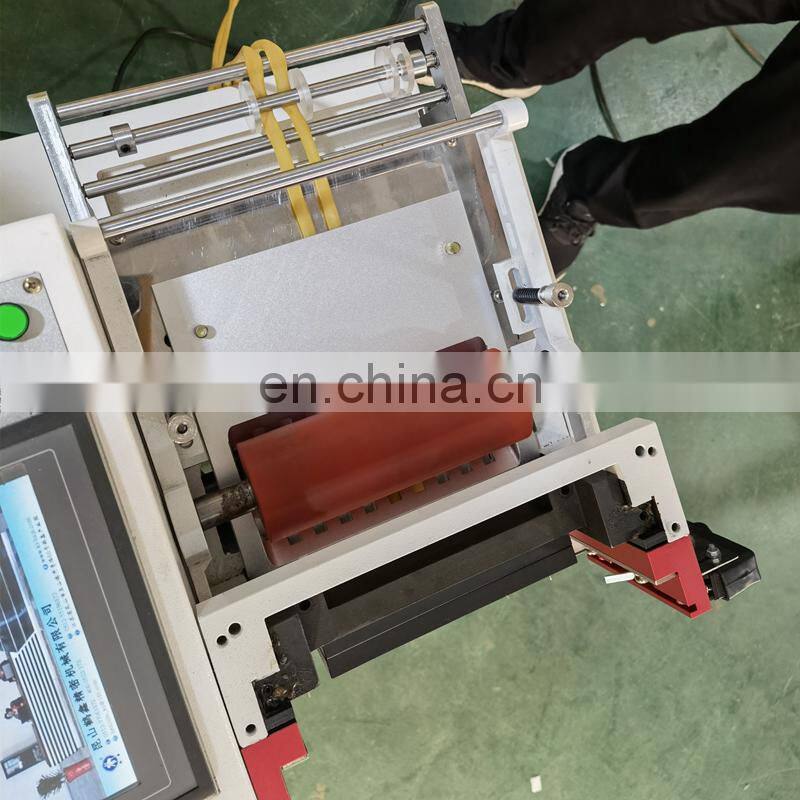

Automatic rubber band cold cutting machine 16cm
Machine Parts

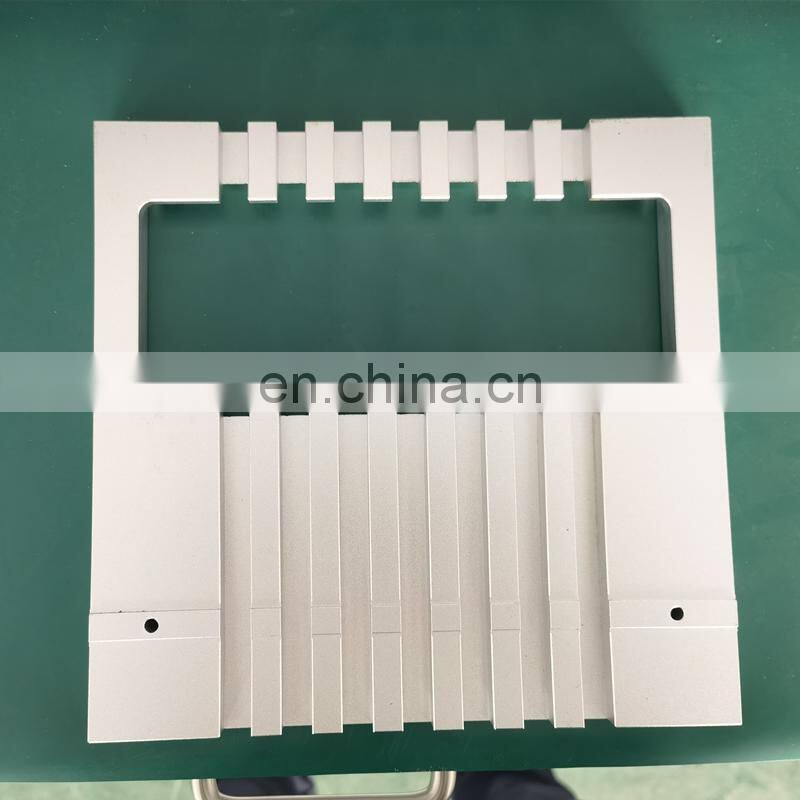

Name: Web guiding bars Material : Aluminum
Original: China
It can leads your material passing in straight way to the feeding roller ,make sure your products are in right angle .
Several strips cutting at same time are available too .
Optional part

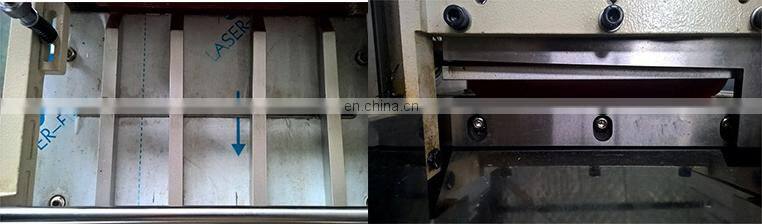

Name: Cold cutting blade Material : SKH-51
Original: Japan
This unit can finish cold full cutting function .Scissor-type cutting blade, durable with highest hardness 65 HRC .Easy to adjust and maintain .
specifications:
|
Model |
HX-160c |
|
Voltage |
220V |
|
Total Power |
1.65KW |
|
N.W. |
90kg |
|
G.W. |
140kg |
|
Cutting Width |
1-160mm |
|
Cutting Length |
0.1-9999.9mm |
|
Packing size |
600x600x1150mm |
|
Max.Heating temperature |
680℃ |
Features:
©Taiwan Brand Servo motor & Japan brand PLC applied
©Roll to sheet cutting, max. web width 160mm
©Touch screen with the ability to save parameters
©Cutting Length adjustable, max. cutting length can be customized
©Cutting tolerance can be +/-0.1mm based on materials.
©Cutting edge can be sealed perfectly without any burrs.
©Cutting temperature(max. temperature 680℃) can be adjustable based on different materials.
©Cutting length and cutting speed adjustable.
Application:
Sizing cutting for PP belt, nylon belt, ribbon, woven belt and elastic band, safety belt, bandage, etc.
About Us
We are a team of industry professionals with strong backgrounds in cutting, die cutting, slitting, laminating
and rolling. Other related machines in our fields can be customized based on your specific requirements.
Kunshan Hexin Precise Machinery is located in Kunshan city,Jiangsu province. We are near
Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train.
Established in 2007, we have been dedicated on converting machines which are used before and after
printing for over 10 years.
Our belief is “people-oriented, technology-first, integrity-centered and brand idea” to provide customers
reliable products, perfect service.Our products are widely applied in laminating, slitting and die cutting
for shield materials, sticky materials, insulating materials, conductive materials, electronic materials.
Sizing cutting for strings, belts, rolls in bag line, shoe and cap line and plastic and rubber line.
