Automatic Paper Sticker Rubber Laminate Flat Die Cutting Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Overview

This machine integrates multi-layer lamination and partial lamination, and the discharge-film-die cutting-waste
discharge-slicing-rewinding is controlled by a computer at one time.Features:
◎Multi-function in ONE machine: Laminating / partial laminating+unwinding+laminating+die cutting +discharging sheet
cutting/rewinding
◎Photo Cell if necessary ◎Sucking device during material feeding process
◎Waste discharge shaft ◎Sheet cutting station
◎Rewinding station ◎Safety curtain device
◎Optional function: Conveyor belt device for full-cut use
Application:
◎Glue-based products: 3C parts, foot pad, silicone, velcro backing, conductive tape, double-side tape,3M tape and all kinds of glue-based products.
◎Dustproof materials: cosmetic cotton, camera cotton, high density sponge, filtering sponge, dustproof filter, non-woven fabric,etc.
◎Shockproof materials: EVA tape, rubber cushion, PORON cushion,3M, flame-resistant EVA, EPDM,etc.
◎Insulation/shielding materials : EMI Shielding material, fireproof paper, aluminum foil, copper foil, PVC,PET, k paper, sponge sheath, pearl cotton sheath and so on.
◎Heat-conductive/ heat-proof materials : silicon sheet, transparent mica, fiber cloth, heat insulation cotton and so on.
◎Other materials which are suitable for die cutting.

The working principle of the flat die-cutting machine is: the product model that has been
opened according to the product drawing in advance is stamped into the specified shape by means of upper and lower stamping. The entire operation process of the die-cutting machine is driven by the servo motor to pull the material to drive the automatic feeder to feed. , Passing through the feed can complete some actions of the film, passing through the die-cutting machine of the die-cutting machine, draining the waste of the frame, and cutting into pieces to complete some of the entire process. Compared with other die-cutting equipment, the flat die-cutting machine has the advantages of convenient operation, convenient maintenance, easy replacement of die-cutting indentation plates, suitable for materials of different weights, and precise die-cutting, so it has been widely used.

Die-cutting machines are also called beer machines and CNC punching machines. They are
mainly used for die-cutting (full-break, half-break) and pressing of corresponding non-metallic materials, stickers, EVA, double-sided tape, electronics, mobile phone pads, etc. Marking and bronzing operations, laminating, automatic waste discharge,the die-cutting machine uses steel knives, metal molds, steel wires (or stencils carved from steel plates), and applies certain pressure through the embossing plate to cut the printed products or cardboard into Certain shape. It is an important equipment for post-press packaging processing and shaping.
The working principle of die-cutting machine is to use steel knives, hardware molds, steel wires (or stencils carved from steel plates) to apply certain pressure through the embossing plate to roll and cut printed products or cardboard into certain shapes.If the entire printed product is press-cut into a single graphic product, it is called die-cutting; if the steel wire is used to make traces on the printed product or leave a bent groove, it is called indentation; Heated to a certain temperature, hot stamping of patterns or fonts with a three-dimensional effect on the surface of the printed product is called hot stamping; if one substrate is used to overlay another substrate, it is called laminating; except for the genuine product, the rest is called To discharge waste; the above can be collectively referred to as die cutting technology.

Die Cutting Machine , also known as cutting machine, CNC punching machine, is mainly used for die-cutting (completely broken) of corresponding non-metallic materials, stickers, EVA, double-sided tape, electronics, mobile phone pads, etc. , Semi-broken), indentation and bronzing operations, laminating, automatic waste removal, die-cutting machine uses steel knives, hardware molds, steel wire (or a template carved from steel plates), and applies a
certain pressure through the imprinting plate to print The product or cardboard is rolled and cut into a certain shape. It is an important equipment for post-press packaging processing and forming

The die-cutting process is the most commonly used process for packaging printed matter. It uses a die-cutting knife to combine the patterns required by the product design to form a die-cutting plate. Under pressure, the printed matter or other ring-packed blanks are rolled into the desired shape or The forming process of the cut marks. The creasing process is to use a crimping knife or a crimping die to make a line mark on the sheet through the action of pressure, or use a rolling wheel to bend and shape the board at a predetermined position. Usually, the die-cutting and creasing process is a process of combining the die-cutting knife and the crimping knife in the same template, and simultaneously performing die-cutting and creasing processing on the die-cutting machine, which is referred to as die-cutting.Process introduction The main process of die-cutting and indentation is: uploading→adjusting pressure→determining the rules→adhesive base material accessories→test pressure die-cutting→formal die-cutting and indentation→removing waste→finished product winding or cutting into pieces→points package

The working principle of the automatic flat-bed die-cutting machine is that the paper feeder feeds the paper into the front gauge and the side position through the paper feeding part, and then the paper is sent to the die-cutting mechanism by the tooth row for secondary positioning and die-cutting. After cutting, it is sent to the waste removal mechanism by the tooth row, and then enters the paper delivery section after the waste removal, thereby completing the die-cutting operation.Touch screen technology, frequency conversion speed regulation technology and programmable controller technology are widely used in the equipment, and the stability and reliability of the equipment have been greatly improved.Data communication between multiple programmable controllers of the die-cutting machine; LCD intelligent operation display screen,human-machine dialogue; use optical fiber sensor to detect the cursor, precise positioning; digital servo; holographic aluminum foil surface tension control

FEATURES AT A GLANCE

PRODUCT SPECIFICATIONS

Model	HX-420B
Slitting Speed	75m/min
Die Cutting Speed	70m/min
Max Web Width	320mm
Max Unwinding Diameter	500mm
Max Rewinding Diameter	480mm
Die Cutting Length	178mm-470mm
Overall Diameter	1.7mx1.12mx1.52m
Machine Weight	1800kg

Ancillary equipment

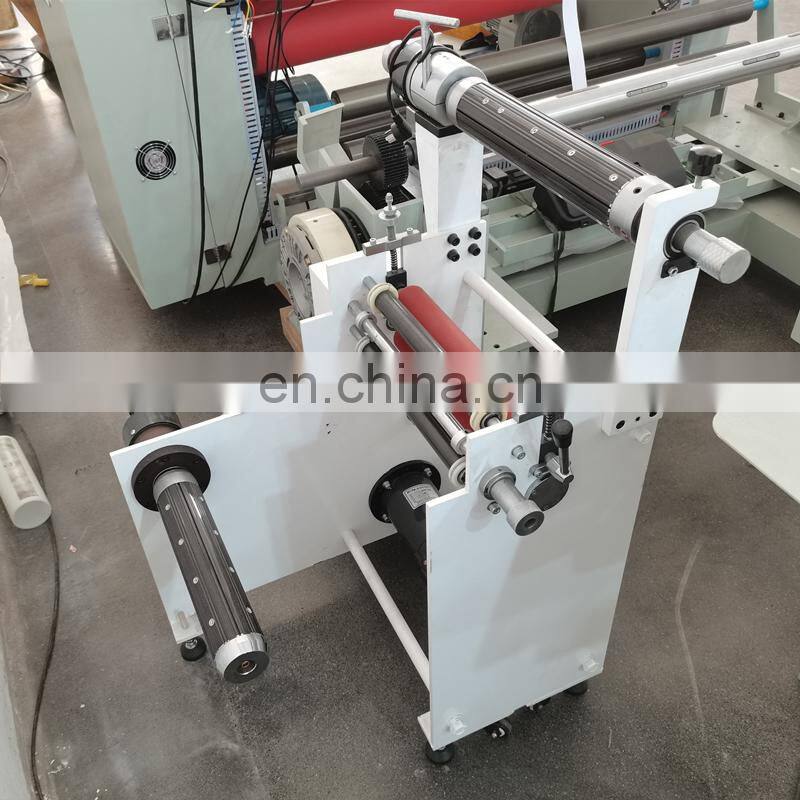

Receiving machine

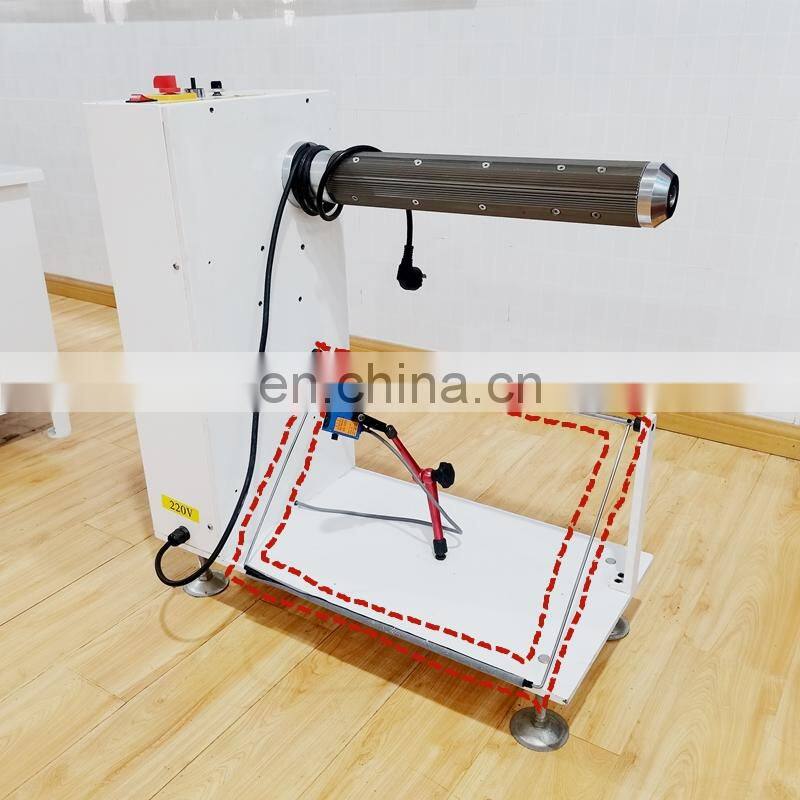

Unwinding machine

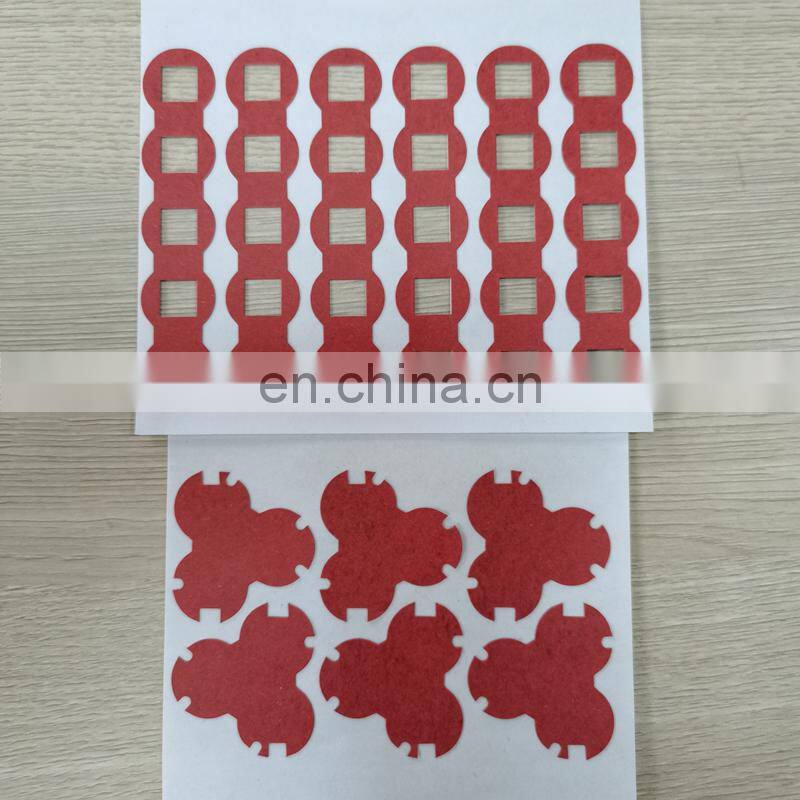

Sample

Product packaging

Title goes here.

Kunshan Hexin Precise Machinery Co., Ltd is an automated and intelligentized machinery manufacturing
company which is specialized in research and development, production, sales and services of cutting machines, automatic slitting machines, thermal laminating machines, precise laminating machines and die cutting machines.
In 2013, We got the certificate for "national high-tech enterprise". Our company has got nearly 20 patents and has passed the SGS factory qualification certification and the CE certificate. Our products are sold not only to the whole Chinese market, but also are exported to Germany, USA, UK, Spain, Turkey, Australia, Thailand, Canada, Argentina, Japan, South Korea and so on, more than 50 countries and areas. The machines are honored by the customers from home and aboard.The headquarter is located in Kunshan city which is the TOP 1 in the "100 top country-level cities" in China. Our company covers more than 10,000 square meters. It is only 40minutes' away by car to Shanghai Hongqiao airport & Hongqiao railway station and 18 minutes' away by bullet high speed train to Shanghai rail station & Hongqiao railway station. We have sub-companies in Shanghai,Hangzhou, Tianjin, Wuhan, Chongqing, Dongguan. We also have agents in many foreign countries. Hexin machines have been spread to the whole Chinese market even to the whole world market. With advanced design concepts and manufacturing technology, after long years' improvement , Hexin machines are now at the top of world leading level in our industries. We own a high-qualified and young team which is composed of skilled technicians, seniorR&D, sales and after-sales engineers.
Our machines are widely applied in cutting, laminating, slitting, die cutting on materials such as shield materials, stickymaterials, insulating materials, conductive materials, all kinds of films, metal foils, non-woven fabric, PVC, PET. They are usedin the industries for 3C, rubber, auto car, printing, medical and so on.

2021.5.26 The 17th Shanghai international Adhesive Tape Protective Film&Functional Film Expo

Shanghai international Flexible Package EXPO

Shanghai international Coiling Meterial&Die cutting Expo

FAQ

1. Q: Are you a manufacturer or trading company?A: We are a professional manufacturer over 10 years’ experience.
2. Q: Where is your factory located in? How can I visit there?
A: Our factory is located in No.66, Kaigui Road, Yushan Town, Kunshan City, Jiangsu Province, China. You can fly to Shanghai
airport directly. We warmly welcome all our clients from home and abroad to visit us!
3. Q: What are your main products ?
A: Our main products are slitting machines, cutting machines, laminating machines and die cutting machines.
4. Q: Which industries are your machines widely used in?
A: Our machines are widely applied in cutting, laminating, slitting and die cutting on materials such as shield materials, sticky
materials, insulating materials, conductive materials, all kinds of films, metal foils, non-woven fabric, paper, PVC, PET. They
are used in the industries of electronic 3C, rubber, auto car, printing, medical, packaging and so on.
5. Q:How does your factory do regarding quality control?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials, assembly process, to the
finished products. Our factory has obtained CE & ISO Certification.
6. Q:If there are no suitable machines from your product list, can we customize from you?
A: Yes, we have our own professional design engineers, and can customize products according to your requirements.
