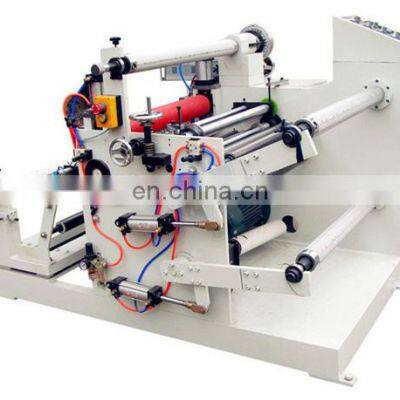

Automatic microfilm sandpaper slitting machine
|
Model |
HX-650FQ |
|
Max Working Width |
650mm |
|
Min Slitting Width |
8mm |
|
Main Engineer Power |
2.2kw |
|
Speed |
80m/min |
|
Size |
1800x1400x1260mm |
|
Weight |
1000kg |
|
Rewinding Diameter |
600mm |
|
Winding Diameter |
450mm |
|
Precision |
±0.1mm |
|
Power |
220V 50HZ |
This is the finishing equipment. It is suitable for slitting roll/reel material such as paper, foil, adhesive
labels. It has functions of meter counter,
piece counter, length and quantity setting, automatically stopping, After reaching a preset number or
running meters .web guiding system and so on. This robust machine consisting of a solid steel
frame,The structure is compact , fast, with high efficiency, easy and steady operation.
1.Machine frame made of coated steel
2.Electronics integrated in the machine frame
3.unwinding with pneumatic compressed shaft for 3" cores
4.rewinding with pneumatic compressed shaft for 3" cores
5.Web tension adjustable via magnetic powder clutch
6.Axial fan for suction of waste strip
7. The minimum slitting width is 8mm
8.unwinding is controlled by two photoelectric eyes
9.The movement of the rubber roller is controlled by cylinder
10.Laminating and slitting can be done at one time or separately.
Standard configuration:
1.One slitting station
2.One laminating station
3.With one piece 3’’ unwinding shaft,2 pieces rewinding shafts
4.With meter/number counter
5.With two photoelectric eyes
6.With 8 sets of round slitting knives
7.Machine has blower fan to blow away the trimmed edge
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, sandpaper,Flannelette etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines.
Here are our slitter rewinder machine working vedio,please kindly link
/v_show/id_XODI0NDU0NzQ0.html PP film slitting
/v_show/id_XODI0NDUwODky.html sandpaper slitting

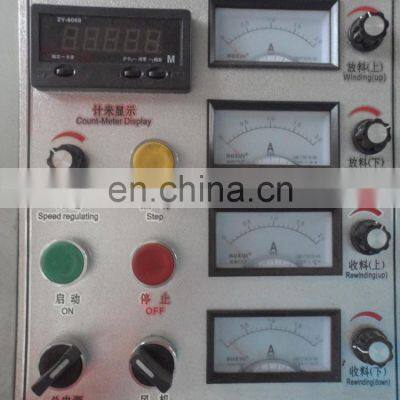

Control panel ( microfilm sandpaper slitting machine )
Slitting knives ( microfilm sandpaper slitting machine )
Photoelectric eyes ( microfilm sandpaper slitting machine )

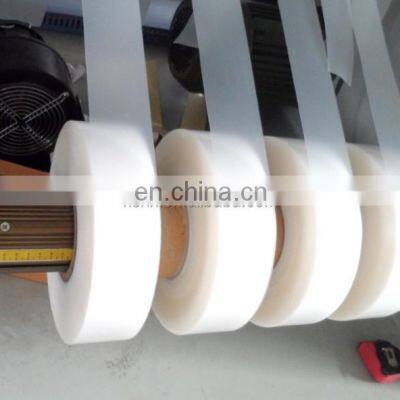

Rewinders ( microfilm sandpaper slitting machine )
Motor and blower fan
CE Certificaitons:
Check below for more information on placing an order
|
1. Inquiry-Professional quotation. |
|
2. Confirm the specification, price, lead time, payment term etc. |
|
3. HEXIN sales send the Proforma Invoice . |
|
4. Customer make the payment for deposit and send us Bank receipt. |
|
5. Inform the clients that we have got the payment, And will arrange the products according to your order. |
|
6. One week before shipping date, HEXIN will inform clients to make payment of balance. |
|
7. Clients make payment for balance and HEXIN Ship the goods. Inform the tracking number (send clients
the documents and Bill of Lading for customs clearance)and check the status for clients.
|
|
8. Order can be say “finish” when you receive the goods and satisfy with them . |
|
9. Feedback to HEXIN about Quality , Service, Market Feedback & Suggestion. And we can do better . |
