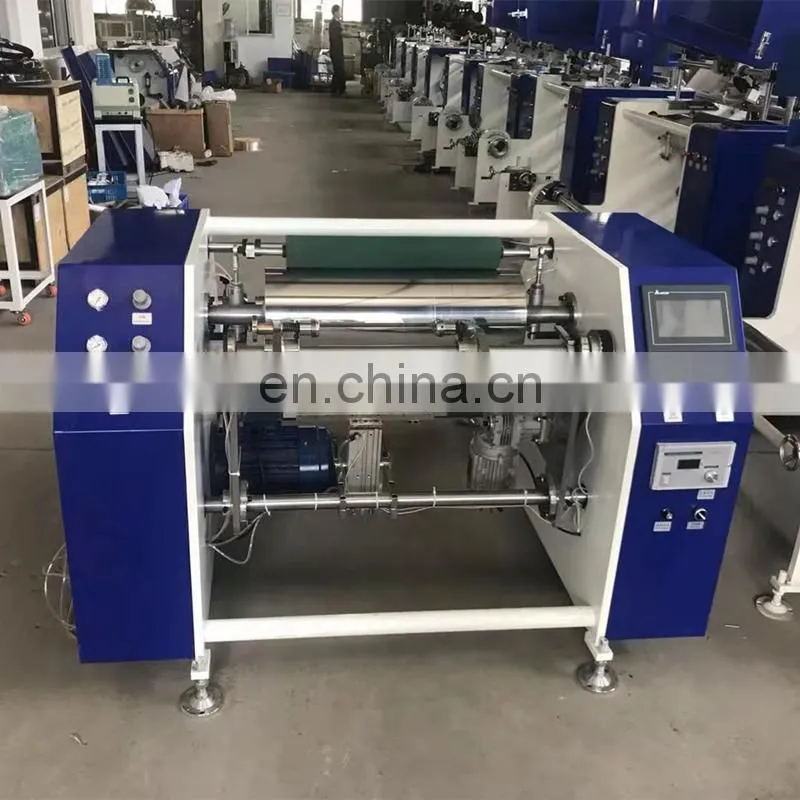

China Professional aluminum foil slitting and rewinding machine

Product Description

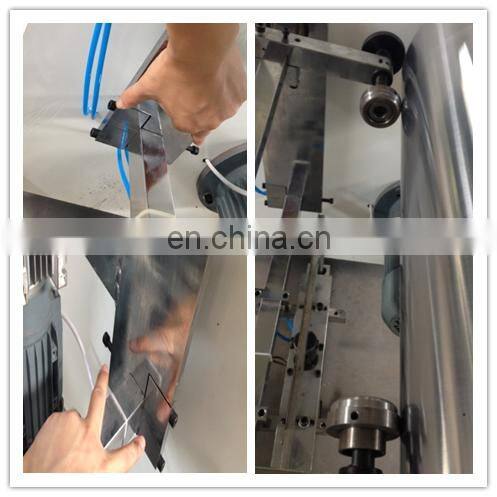

When the left and right chucks are close to the roller, make sure that they are all aligned. If one side is not against the
roller, please adjust the screw at the bottom of the arm

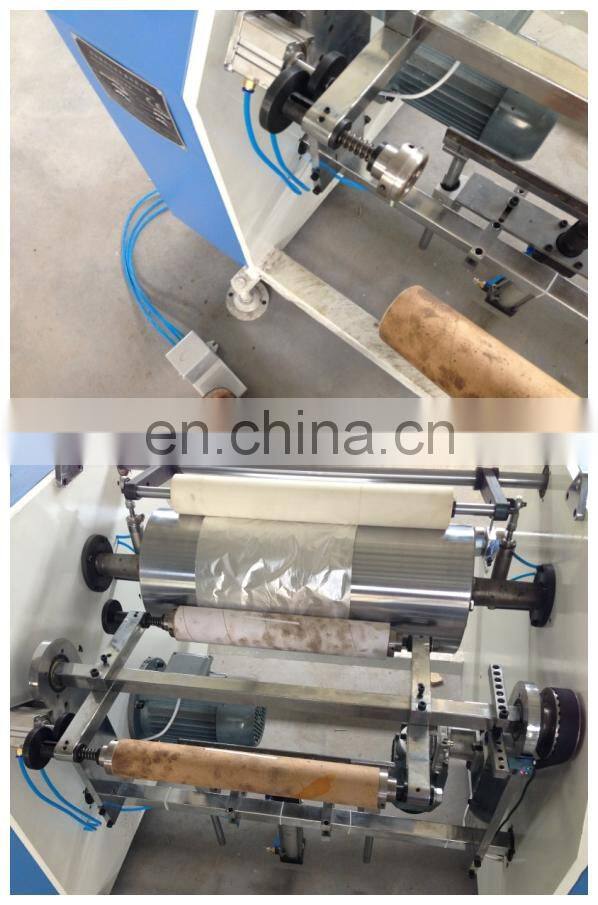

Step on the foot switch with your foot, move the chuck to the left, and release the foot switch after inserting the paper core

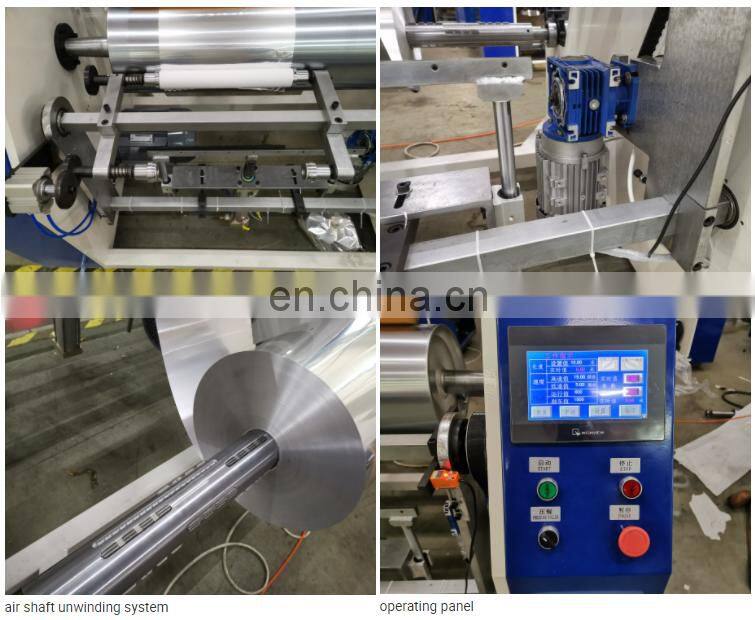

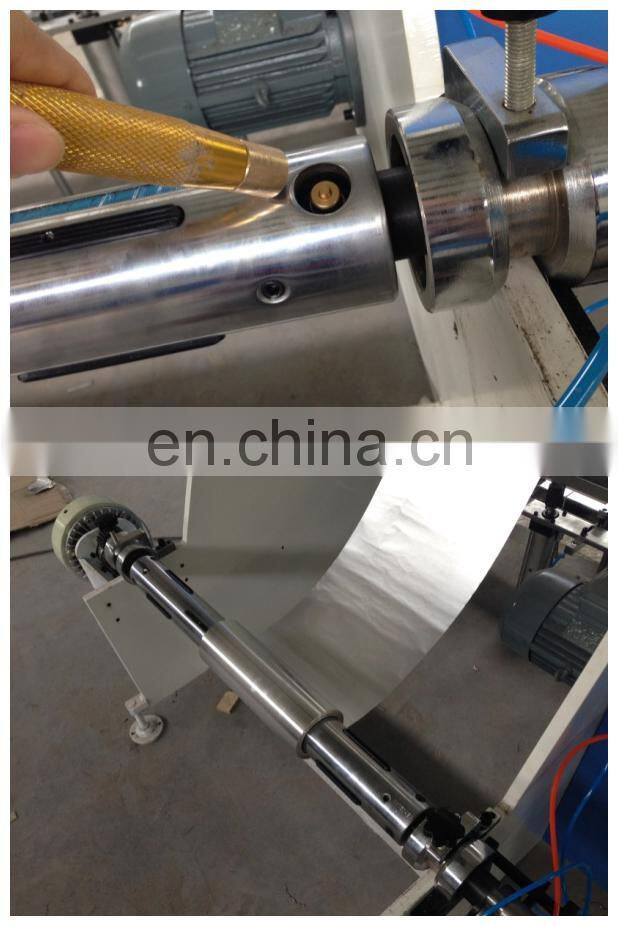

Install the parent roll, pump up the air with an inflator, and fix the parent roll in a proper position

Hot sale aluminium foil household foil pvc pe cling film roll rewindning machineis multi-purpose model for rewinding both
aluminium house foil roll and cling film roll.
It is adopted surface rewinding method,it can rewind for small length for consumer roll,and large length 300meters(or more) for catering roll.
The machine is control by PLC programmer unit for very user friendly.
It is very high speed,by automatic start rewinding,when the gluing is done by manually,all step will be automatic fulfill,include automatic stop when reach length set,automatic exchange to the shaft.automatic cut off the finished roll.

1: This machine should be in good ground condition. Otherwise it will be possible for the safety of personnel and equipment damage;

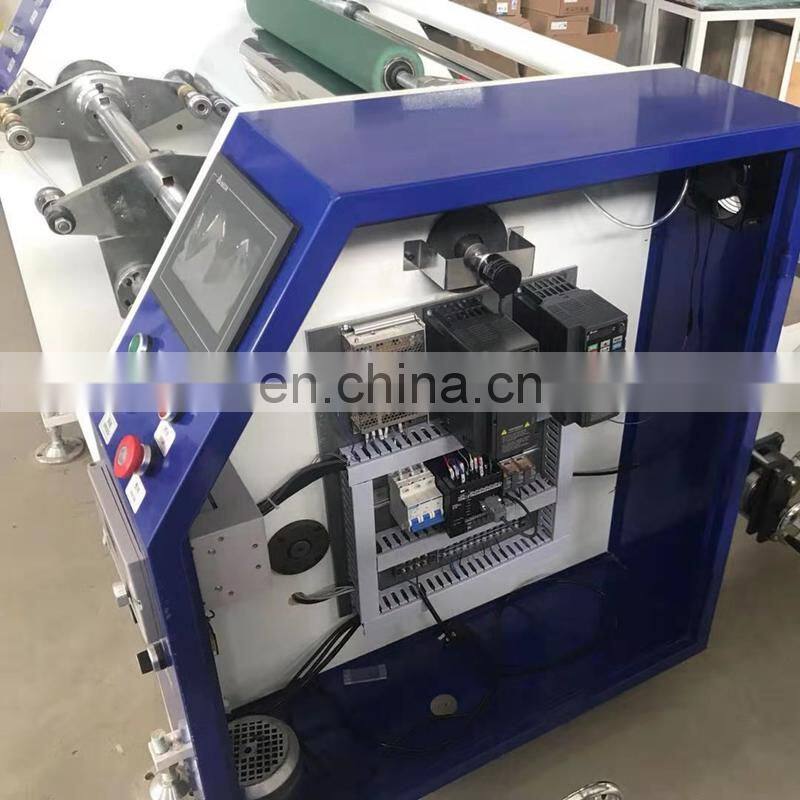

2: Non-professionals, do not open the electronic control box, or conduct other operations. The maintenance will be
performed by qualified personnel; Note: The machine uses 380/50Hz phase four-wire power supply (or customized voltage).

Model and specifications

1, Model: HX-500L-2

2, Specifications Rewinding width 500MM Parent roll diameter (MAX) 600MM for aluminum foil and
400MM for cling film Finished roll diameter (MAX) 120MM The maximum mechanical line speed 300M/MIN

3, Unwinding

Type: Manual, Core: 3"

4, Rewinding Type: Friction, Core: customization

5, Correction: Jog

6, Motor Power: Rewinding: 2.2KW; Flip: 0.37KW

7, Air Compressor: 0.4—0.6Mpa

specifications:

Model	HX-500L
Rewinding width	500MM
Parent roll diameter (MAX)	600MM or aluminum foil and 400MM for cling film
Finished roll diameter (MAX)	120MM
The maximum mechanical line speed	300M/MIN
Unwinding	Type: Manual, Core: 3"
Motor Power:	Rewinding: 2.2KW; Flip: 0.37KW

Featuress :

©Laminating function

©EPC (edge positioning control):Unit: Photo Cell*2pcs

©Waste discharge function

©Magnetic brake and clutch

©Length counting function, automatically stop after it reaches the length you set.

Application:

Automatic Slitting for label, conductive fabric, foam, diffuser film,reflector film, double-sided adhesive tape, nickel plate, PET,PC,

PE insulation paper, copper /aluminum foil and all kinds of non adhesive rolls on the surface .

Our company

About Us

We are a team of industry professionals with strong backgrounds in cutting, die cutting, slitting, laminating

and rolling. Other related machines in our fields can be customized based on your specific requirements.

Kunshan Hexin Precise Machinery is located in Kunshan city,Jiangsu province. We are near

Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train.

Established in 2007, we have been dedicated on converting machines which are used before and after

printing for over 10 years.

Our belief is “people-oriented, technology-first, integrity-centered and brand idea” to provide customers

reliable products, perfect service.Our products are widely applied in laminating, slitting and die cutting

for shield materials, sticky materials, insulating materials, conductive materials, electronic materials.

Sizing cutting for strings, belts, rolls in bag line, shoe and cap line and plastic and rubber line.
