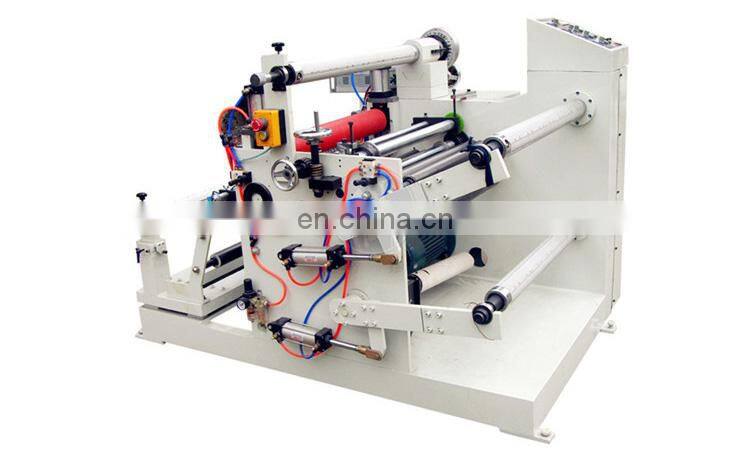

China Professional Supplier Non Woven Fabric Slitting Machine

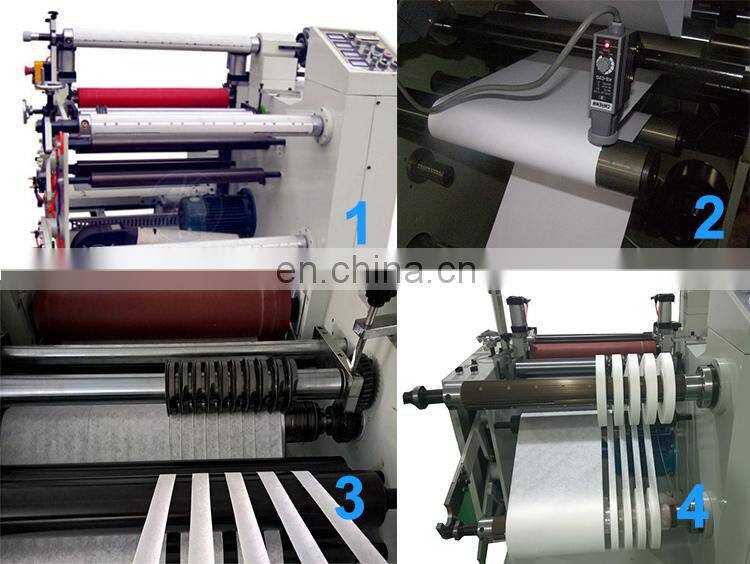

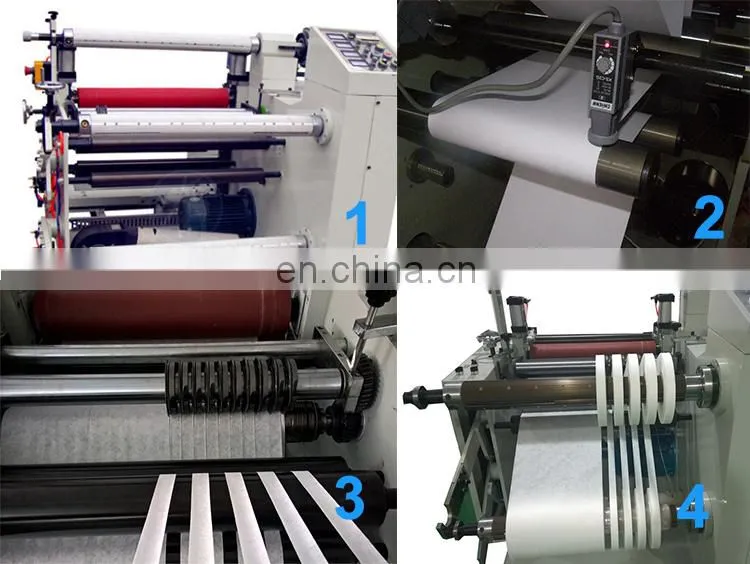

1.Unwinding unit

Name: Unwinding air shaft                                                        Material :  air shaft

Usage :

The unwind station is composed of one station for the axial unwinding of the logs.

This unit is equipped with one pneumatic shaft and the pneumatic brake is magnetic tension controlled.

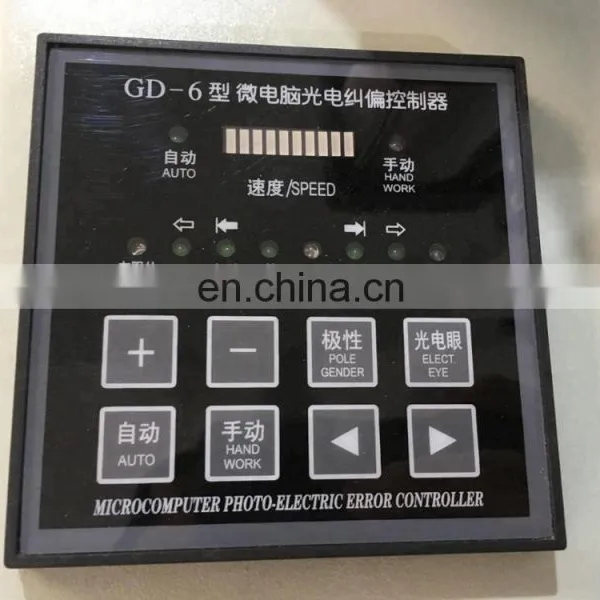

2.EPC system

Name: Electronic photo cell

Usage :
These electrical photo cell is used to guide the non neat material .make sure the slitting effect is good  .

Automatic web guide is composed of two photocells and one AC electric actuator which moves left or

right if the material comes out of the path of the photoelectric eyes.

3.Slitting unit

Name: Slitting blades                                                               Material : 9GrSi

This machine is standard equipped with 8 sets of slitting blades ,The minimum slitting width is 20 MM ,

if you want to slit smaller width ,you can customize self-locking knives  . It's easy to adjust the slitting

width based on your products .

4.Rewinding unit

Name: rewinding air shafts
It's inflatable by air compressor ,convenient to upload and discharge the material ,two rewind

stations are designed to rewind the finished log up to 450 mm in outside diameter.

This unit is equipped with two pneumatic shaft and two magnetic clutch .

specifications:

Featuress :

©Laminating function

©EPC (edge positioning control):Unit: Photo Cell*2pcs

©Waste discharge function

©Magnetic brake and clutch

©Length counting function, automatically stop after it reaches the length you set.

©2 rewinding inflatable shafts, easy for unload materials.

Application:

Automatic Slitting for label, conductive fabric, foam, diffuser film,reflector film, double-sided adhesive tape, nickel plate, PET,PC,

PE insulation paper, copper /aluminum foil and all kinds of non adhesive rolls on the surface .

About Us

We are a team of industry professionals with strong backgrounds in cutting, die cutting, slitting, laminating

and rolling. Other related machines in our fields can be customized based on your specific requirements.
